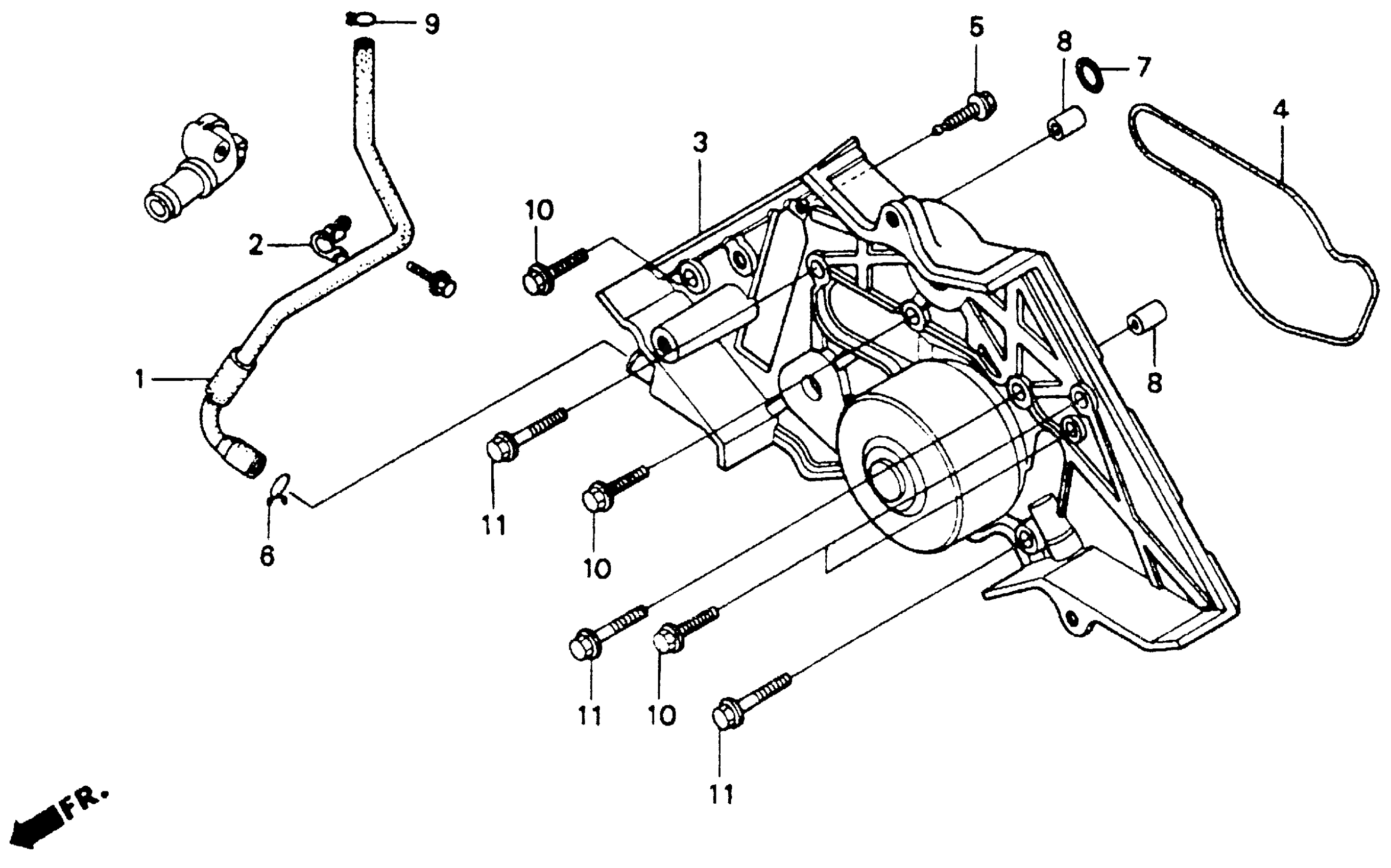

Honda ST1100A (92) MOTORCYCLE, JPN, VIN# JH2SC260-NM200001 TO JH2SC260-NM200481 WATER PUMP 92-94 Diagram

#

Description

Price

1

HOSE, BREATHER

11150-MY3-010

Unavailable

1

HOSE, BREATHER This part replaces 11150-MY3-000.

11150-MY3-010

Unavailable

3

WATER PUMP This part replaces 19200-MY3-000.

19200-MY3-010

Unavailable

3

WATER PUMP

19200-MY3-010

Unavailable

4

O-RING, WATER PUMP

19226-MT3-000

$11.70

5

BOLT, TIMING BELT ADJUST SPRING

90010-MT3-000

$4.43

6

CLIP, AIR HOSE (16)

90646-657-000

$7.32

7

O-RING (15.8X2.5) (ARAI)

91301-MC7-003

$4.52

7

O-RING (15.8X2.5) (ARAI) This part replaces 91305-MN5-003.

91301-MC7-003

$4.52

8

PIN A, DOWEL (8X10)

94301-08100

$2.25

9

CLIP, TUBE (B12.5)

95002-02130

$1.49

10

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

11

BOLT, FLANGE (6X30)

95701-06030-00

$1.89
