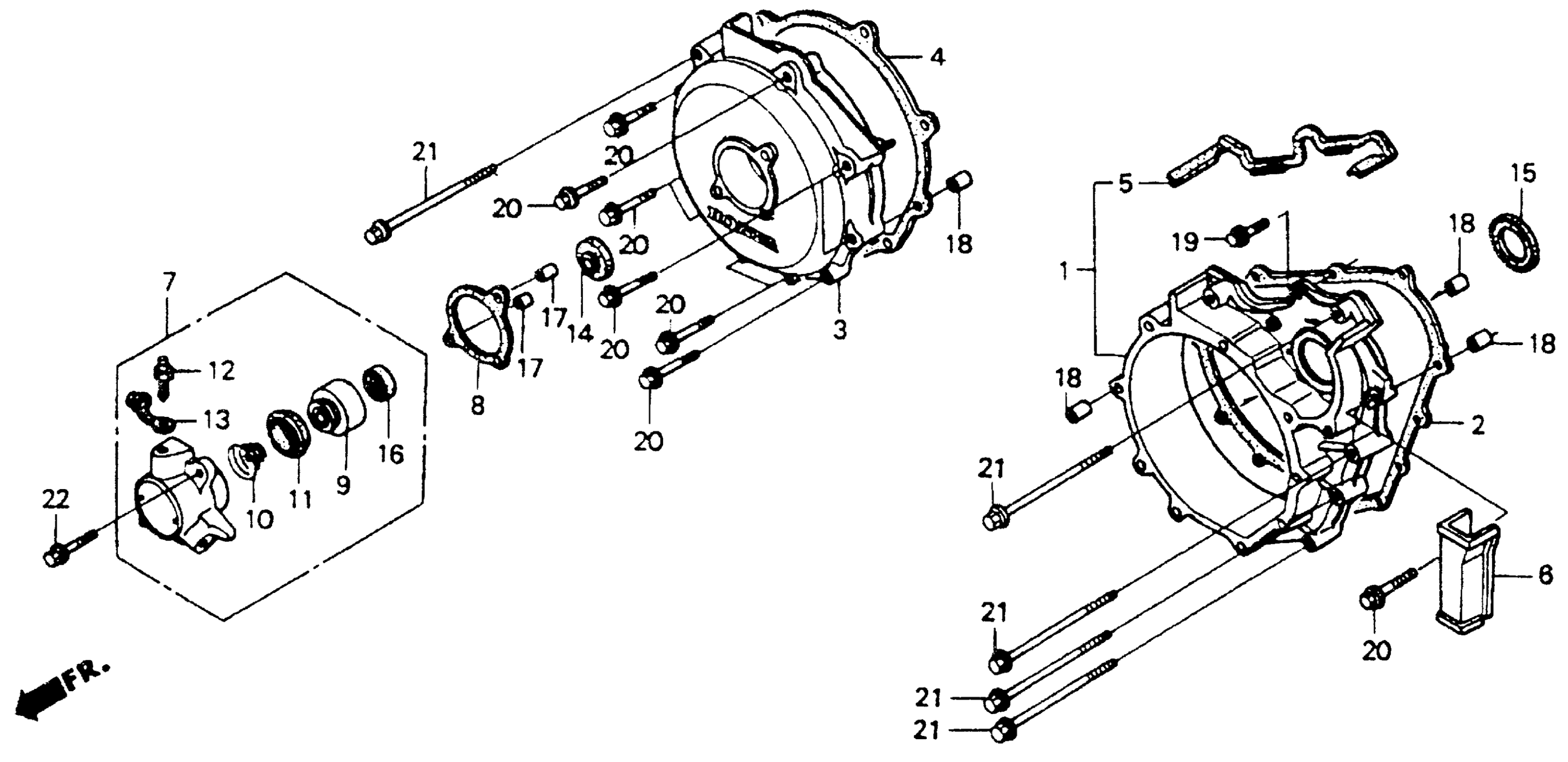

Honda ST1100A (91) MOTORCYCLE, JPN, VIN# JH2SC260-MM100004 TO JH2SC260-MM102131 CLUTCH COVER Diagram

#

Description
Price

1

COVER ASSY., CLUTCH

11330-MT3-000

$301.79

2

GASKET, CLUTCH COVER BASE

11332-MY3-000

Unavailable

2

GASKET, CLUTCH COVER BASE This part replaces 11332-MT3-000.

11332-MY3-000

Unavailable

3

COVER, CLUTCH

11341-MT3-000

$278.44

4

GASKET, CLUTCH COVER

11342-MY3-000

$22.34

4

GASKET, CLUTCH COVER This part replaces 11342-MT3-000.

11342-MY3-000

$22.34

4

GASKET, CLUTCH COVER This part replaces 11342-MT3-405.

11342-MY3-000

$22.34

5

GASKET, WATER PUMP

19213-MT3-000

Unavailable

6

GUARD, COOLER HOSE

19531-MT3-000

Unavailable

7

CYLINDER ASSY., CLUTCH SLAVE

22860-ML7-010

$141.10

8

GASKET, SLAVE CYLINDER This part replaces 22862-MW7-650.

22862-MGJ-D00

$4.98

8

GASKET, SLAVE CYLINDER This part replaces 22862-KE7-000.

22862-MGJ-D00

$4.98

9

PISTON, SLAVE CYLINDER

22863-MJ8-003

$26.65

10

SPRING, SLAVE CYLINDER

22864-MB0-003

$6.25

11

CUP, PISTON

22865-MJ8-003

$11.50

12

SCREW, BLEEDER

22866-MF2-711

$5.12

13

CAP, BLEEDER

43353-461-771

$5.05

14

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$4.06

15

OIL SEAL (42X56X6) (ARAI)

91205-MT3-004

$19.05

16

OIL SEAL (8X18X5) (NISSIN)

91209-MB0-003

$4.06

17

PIN A, DOWEL (8X10)

94301-08100

$2.25

18

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

19

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

20

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

21

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

22

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
