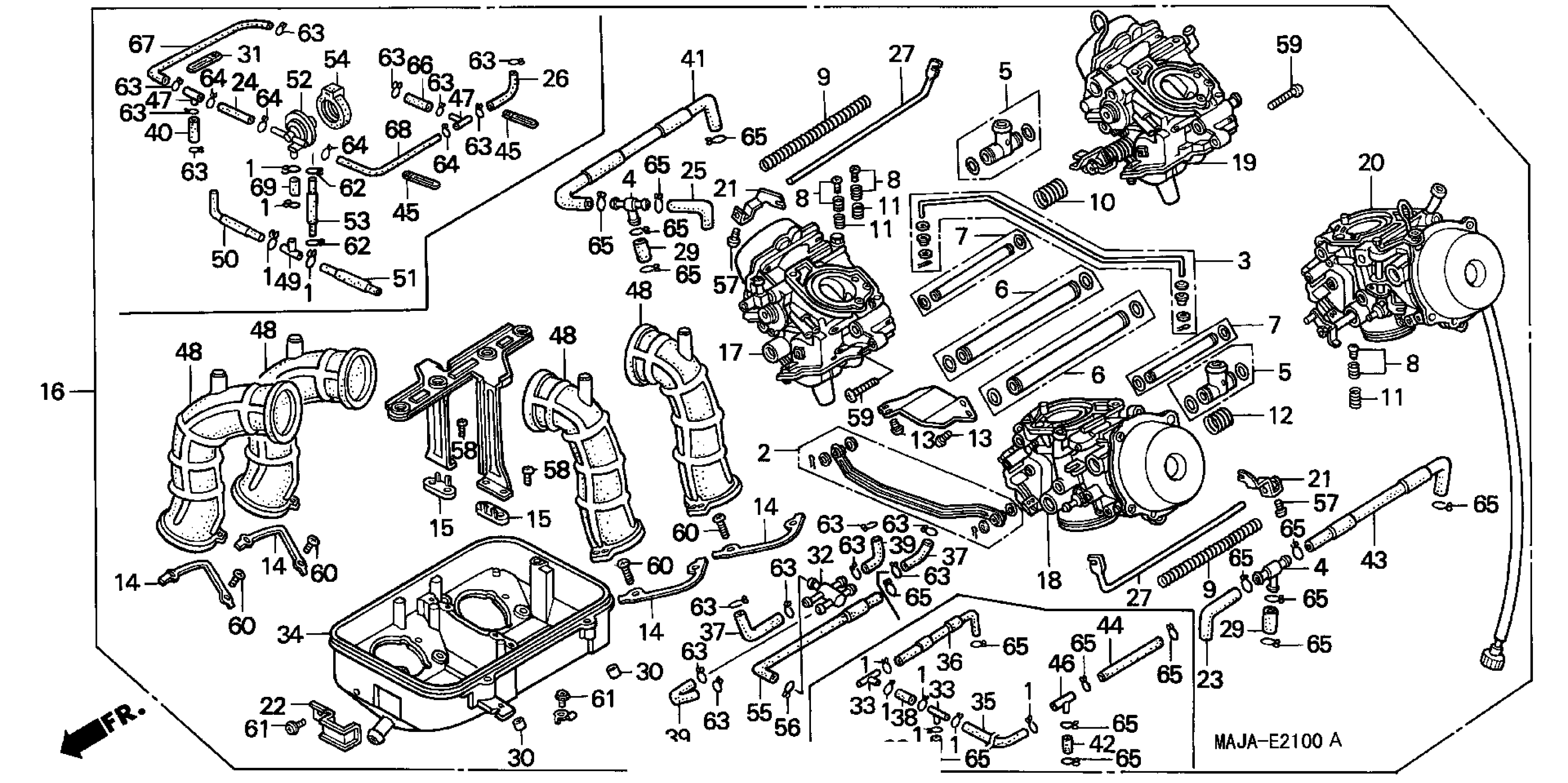

Honda ST1100A (01) MOTORCYCLE, JPN, VIN# JH2SC260-1M100001 CARBURETOR ASSY. Diagram

#

Description
Price

2

LEVER SET, LINK

16017-MAJ-870

Unavailable

3

ROD SET, STARTER LINK

16019-MAJ-870

Unavailable

4

T-JOINT

16026-MN8-004

$39.64

5

JOINT SET C, FUEL This part replaces 16026-MT6-601.

16026-MAJ-R00

Unavailable

6

JOINT SET A, FUEL

16027-MT3-610

Unavailable

7

JOINT SET B, FUEL

16027-MT3-750

$37.13

8

SCREW SET C

16029-MT3-610

$11.48

9

SPRING, COMPRESSION COIL

16050-MT3-610

Unavailable

10

SPRING, COMPRESSION COIL

16051-MT3-610

Unavailable

11

SPRING, COMPRESSION COIL

16053-KT7-003

$6.04

12

SPRING, COMPRESSION COIL

16053-MA6-003

$8.26

13

SCREW, PAN (5X10)

16081-ML7-004

Unavailable

14

WASHER, TONGUED

16090-ML7-004

$2.96

15

WASHER, TONGUED

16090-MT3-610

Unavailable

16

CARBURETOR ASSY. (VDBJA A) (NOT AVAILABLE)

16100-MAJ-870

Unavailable

17

CARBURETOR ASSY., R. FR. (NOT AVAILABLE)

16101-MAJ-870

Unavailable

18

CARBURETOR ASSY., L. FR. (NOT AVAILABLE)

16102-MAJ-870

Unavailable

19

CARBURETOR ASSY., R. RR. (NOT AVAILABLE)

16103-MAJ-870

Unavailable

20

CARBURETOR ASSY., L. RR. (NOT AVAILABLE)

16104-MAJ-870

Unavailable

21

LEVER, STARTER

16120-KT8-003

Unavailable

22

BINDER

16134-MT3-610

$7.90

23

TUBE (NOT AVAILABLE)

16143-MT3-610

Unavailable

25

TUBE (NOT AVAILABLE)

16144-MT3-610

Unavailable

27

SHAFT, STARTER LINK

16145-MT3-610

$19.26

29

TUBE This part replaces 16147-MT3-610.

16198-MT3-730

$7.94

29

TUBE

16198-MT3-730

$7.94

30

PIN, KNOCK

16178-MB0-671

$4.64

32

JOINT (T)

16180-ME5-761

$28.81

34

BASE, AIR CLEANER

16188-MT3-750

$188.33

37

TUBE This part replaces 16196-MT3-610.

16198-KCH-505

Unavailable

39

TUBE This part replaces 16197-MT3-610.

16198-KCH-505

Unavailable

41

TUBE (NOT AVAILABLE)

16198-MT3-610

Unavailable

43

TUBE This part replaces 16199-MT3-610.

16199-MT3-730

Unavailable

48

TUBE A, AIR CLEANER CONNECTING

17253-MT3-000

$35.28

55

TUBE, DRAIN

17521-MT3-730

Unavailable

56

CLIP, TUBE (B14)

90651-KM9-000

$1.62

57

SCREW, PAN (4X8) SCREW, PAN (4X12)

93500-04008-0A

$0.80

57

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$0.80

58

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$0.83

58

SCREW, PAN (5X12)

93500-05012-0A

$0.83

58

SCREW, PAN (5X12) This part replaces 93500-05012-00.

93500-05012-0A

$0.83

58

SCREW, PAN (5X12) This part replaces 93500-05012-1A.

93500-05012-0A

$0.83

59

SCREW, PAN (6X22)

93500-06022-0G

$1.16

60

SCREW, PAN (6X22) (NOT AVAILABLE)

93500-06022-0H

Unavailable

61

SCREW-WASHER (4X8)

93892-04008-00

Unavailable

61

SCREW-WASHER (4X8) This part replaces 93892-04008-10.

93892-04008-00

Unavailable

63

CLIP, TUBE (B8) CLIP, TUBE (B7)

95002-02080

$1.59

65

CLIP, TUBE (B12)

95002-02120

Unavailable
