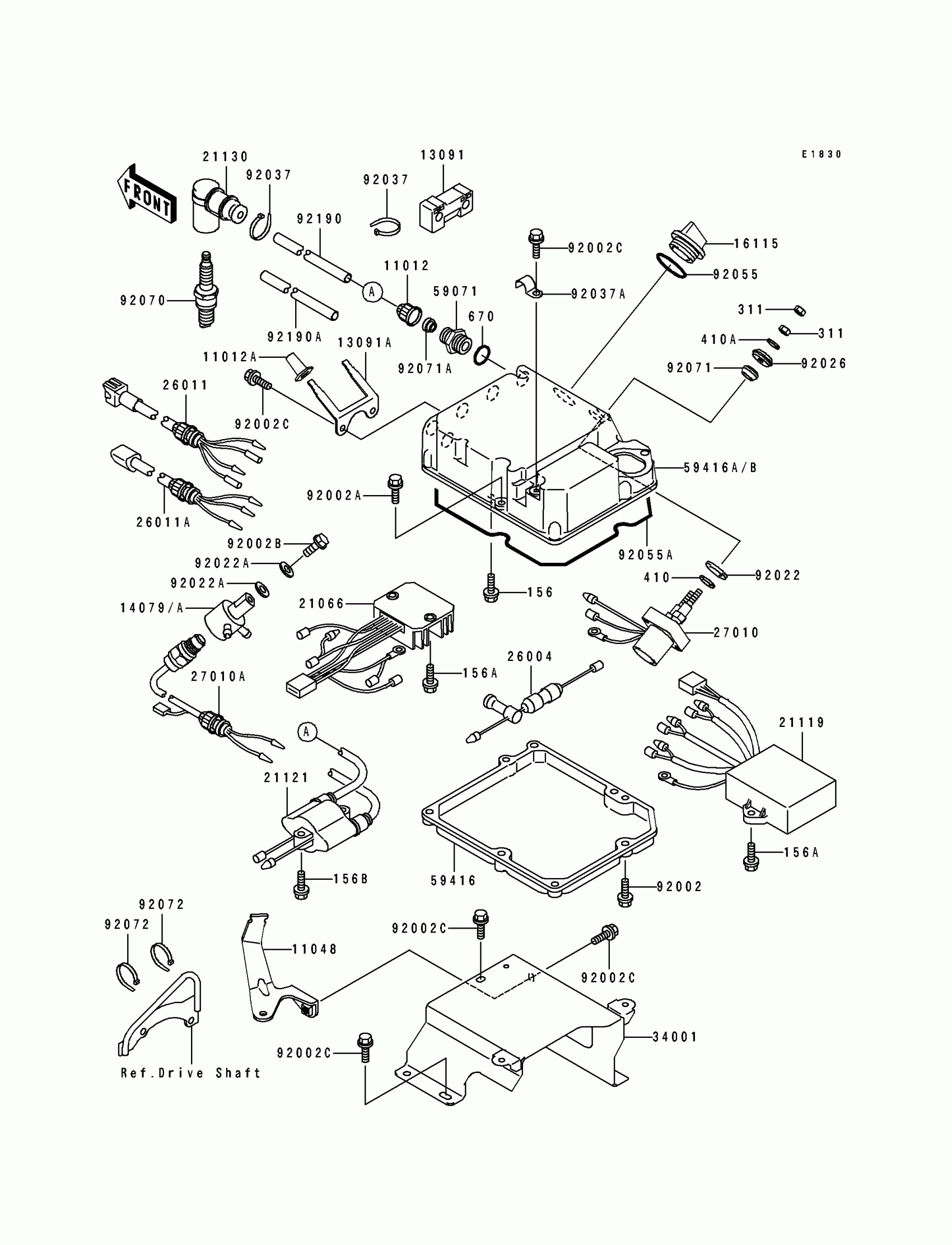

Kawasaki ST Ignition System Diagram
#
11012
CAP
11012-3005
$5.54
11012A
CAP,HOLDER
11012-3768
$7.22
11048
BRACKET,HIGH TENSION CORD
11048-3736
Unavailable
13091
HOLDER,HIGH TENSION CORD
13091-3771
Unavailable
13091A
HOLDER,PLUG CAP
13091-3781
Unavailable
14079A
HOLDER-ASSY
14079-3710
$110.58
16115
CAP-OIL FILLER
16115-1009
$14.30
21066
REGULATOR-VOLTAGE
21066-3711
$222.82
21119
IGNITER
21119-3734
$692.04
21121
COIL-IGNITION
21121-3704
$139.42
21130
CAP-SPARK PLUG
21130-3706
$52.27
26004
FUSE-ASSY
26004-3712
$55.72
26011
WIRE-LEAD
26011-3799
$93.39
26011A
WIRE-LEAD
26011-3800
$76.86
27010
SWITCH,STARTER RELAY
27010-3724
$115.46
27010A
SWITCH
27010-3733
$152.23
34001
STAND,ELECTRIC CASE
34001-3705
Unavailable
59071
JOINT
59071-3001
$6.29
59416
CASE-ELECTRIC,LWR
59416-3728
Unavailable
59416B
CASE-ELECTRIC,UPP
59416-3739
$302.35
92002
BOLT,6X25
92002-3714
$5.00
92002A
BOLT,6X35
92002-3715
$6.61
92002B
BOLT,6X20
92002-3755
$4.69
92002C
BOLT,6X12
92002-3763
$4.69
92022
WASHER
92022-3035
$3.52
92022A
WASHER,6.2X20X2
92022-3714
$4.18
92026
SPACER
92026-3703
$4.69
92037
CLAMP
92037-1173
$3.49
92037A
CLAMP
92037-3730
$6.34
92055
RING-O,31.5X2.6
92055-049
$4.31
92055A
RING-O,ELECTRIC CASE
92055-3733
$28.74
92070
PLUG-SPARK,BR8ES(NGK),SOLID
92070-2078
$3.62
92071
GROMMET
92071-3004
$3.99
92071A
GROMMET
92071-527
$6.68
92072
BAND,L=201
92072-3778
$1.84
92190
TUBE,HIGH TENSION,L=330
92190-3707
$12.07
92190A
TUBE,HIGH TENSION,L=210
92190-3708
$12.07
156
BOLT-WP,6X14
156R0614
$3.90
156A
BOLT-WP,6X22
156R0622
$4.09
156B
BOLT-WP
156R0630
$3.60
311
NUT-HEX,6MM
311R0600
$0.70
410
WASHER PLAIN 10MM
410B1000
$0.58
410A
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
670
O RING,16MM
670B2016
$1.36
