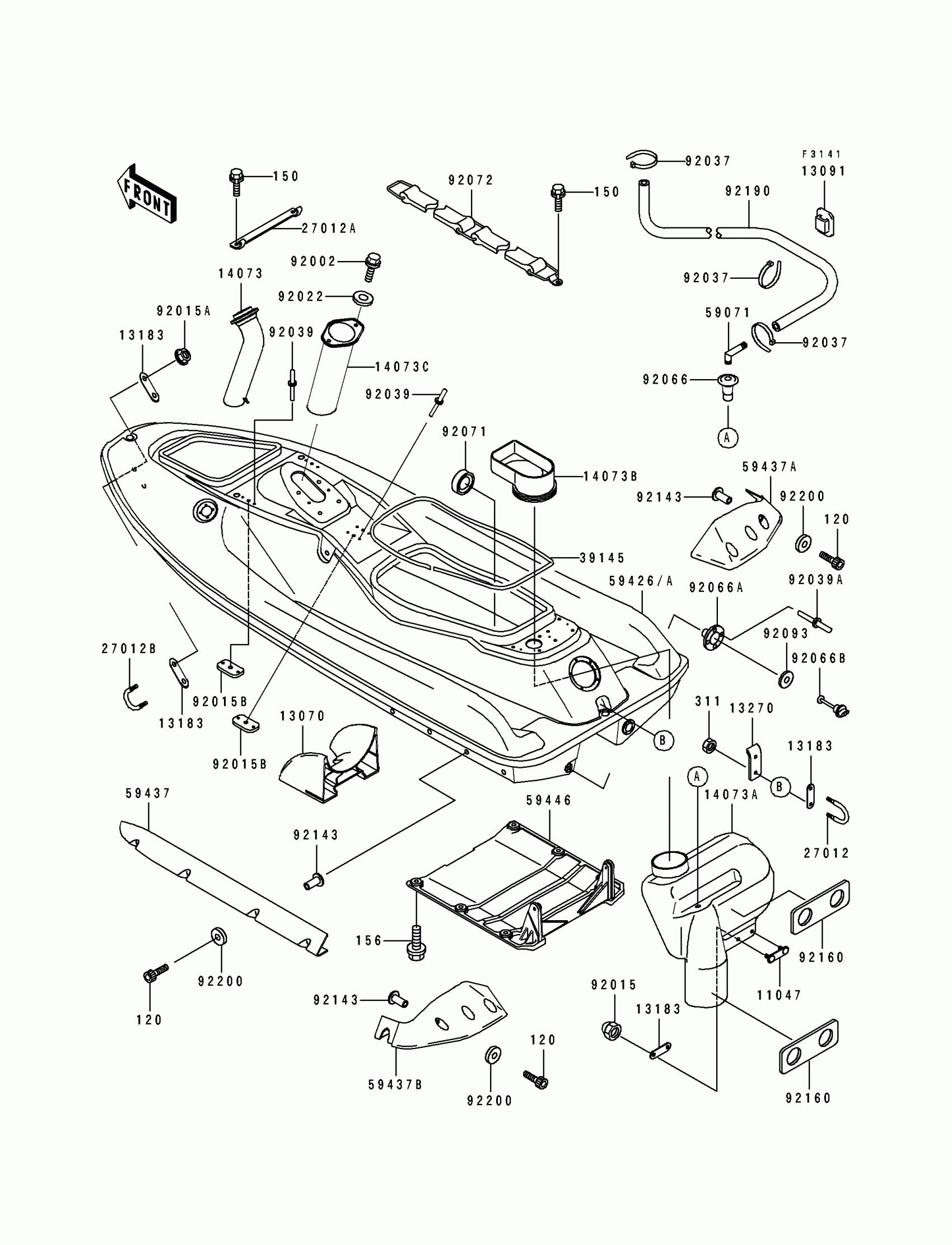

Kawasaki ST Hull Diagram
#
11047
BRACKET,RR DUCT
11047-3774
Unavailable
13070
GUIDE,INTAKE
13070-3713
$107.11
13091
HOLDER,BAND
13091-3764
$5.17
13183
PLATE
13183-3809
$7.34
13270
PLATE
13270-3731
Unavailable
14073
DUCT,FR
14073-3741
Unavailable
14073A
DUCT,RR,UPPER
14073-3742
$124.01
14073B
DUCT,RR,INNER
14073-3743
Unavailable
14073C
DUCT,FR
14073-3746
Unavailable
27012
HOOK
27012-3761
$36.68
27012A
HOOK,BOW EYE
27012-3766
$20.79
27012B
HOOK
27012-3776
$38.41
39145
TRIM-SEAL,L=2170
39145-3741
Unavailable
59071
JOINT
59071-3733
Unavailable
59426A
HULL-COMP,J.WHITE
59426-3798-8C
$1,925.14
59437
STABILIZER,SIDE,J.WHITE
59437-3701-8U
$174.50
59437A
STABILIZER,STERN,RH,J.WHITE
59437-3702-8U
$174.50
59437B
STABILIZER,STERN,LH,J.WHITE
59437-3703-8U
Unavailable
59446
COVER-JET PUMP
59446-3726
Unavailable
92002
BOLT,6X16
92002-3728
$4.69
92015
NUT,CAP,6MM
92015-3755
$4.99
92015A
NUT,6MM
92015-3767
$4.69
92015B
NUT
92015-3815
Unavailable
92022
WASHER,6.5X20X1.5
92022-3710
$3.65
92037
CLAMP
92037-1173
$3.49
92039
RIVET
92039-3712
$4.83
92039A
RIVET
92039-3757
Unavailable
92066
PLUG
92066-3706
$5.14
92066A
PLUG,RR,DRAIN
92066-3724
Unavailable
92066B
PLUG,RR,DRAIN
92066-3744
$20.70
92071
GROMMET
92071-3783
Unavailable
92072
BAND,FUEL TANK
92072-3772
Unavailable
92093
SEAL
92093-3720
$3.62
92143
COLLAR
92143-3739
Unavailable
92160
DAMPER
92160-3722
Unavailable
92190
TUBE,5X10X1000
92190-3896
Unavailable
92200
WASHER,6.5X16X1.0
92200-3712
$3.73
120
BOLT-SOCKET,6X40
120R0640
$5.00
150
BOLT-WS,6X16
150R0616
$3.65
156
BOLT-WP,6X20
156R0620
$3.65
311
NUT-HEX,6MM
311R0600
$0.70
