Description

Price

13151

SWITCH-COMP,STOP&START

13151-3711

Unavailable

14024

COVER,THROTTLE LEVER

14024-3701

Unavailable

21083

ARM,THROTTLE LEVER

21083-3701

$15.65

32085

STOPPER

32085-3709

Unavailable

39058

HANDLE-COMP

39058-3706

$240.99

39063

HOUSING-CONTROL,UPP

39063-3713

Unavailable

39063A

HOUSING-CONTROL,LWR

39063-3714

$75.52

39074

LEVER-ASSY-THROTTLE

39074-3714

$229.21

39075

LEVER-THROTTLE

39075-3708

$67.20

39087

PAD-HANDLE,GREEN 16

39087-3711-LR

Unavailable

43049

PACKING,THROTTLE LEVER

43049-3701

$7.69

46012

HOLDER-HANDLE,UPP

46012-3720

$16.69

46012A

HOLDER-HANDLE,LWR

46012-3722

$249.86

92002

BOLT,SOCKET,3X10

92002-3751

$5.46

92002A

BOLT,8X25

92002-3774

$7.91

92027

COLLAR,THROTTLE LEVER

92027-3704

Unavailable

92072

BAND,TETHER SWITCH

92072-3767

$59.26

92072A

BAND,L=201

92072-3778

$1.84

92081

SPRING,THROTTLE LEVER RETURN

92081-3702

$6.52

92190

TUBE,22X24X270

92190-3935

$30.46

150

BOLT-WS,6X14

150R0614

$5.96

155

BOLT-WSP-SMALL,8X35

155R0835

$8.19

156

BOLT-WP,5X25

156R0525

$5.22

157

BOLT-WSP,5X12

157R0512

$2.78

220

SCREW-PAN-CROS,5X30

220R0530

$4.87

670

O RING,8MM

670B1508

$1.29

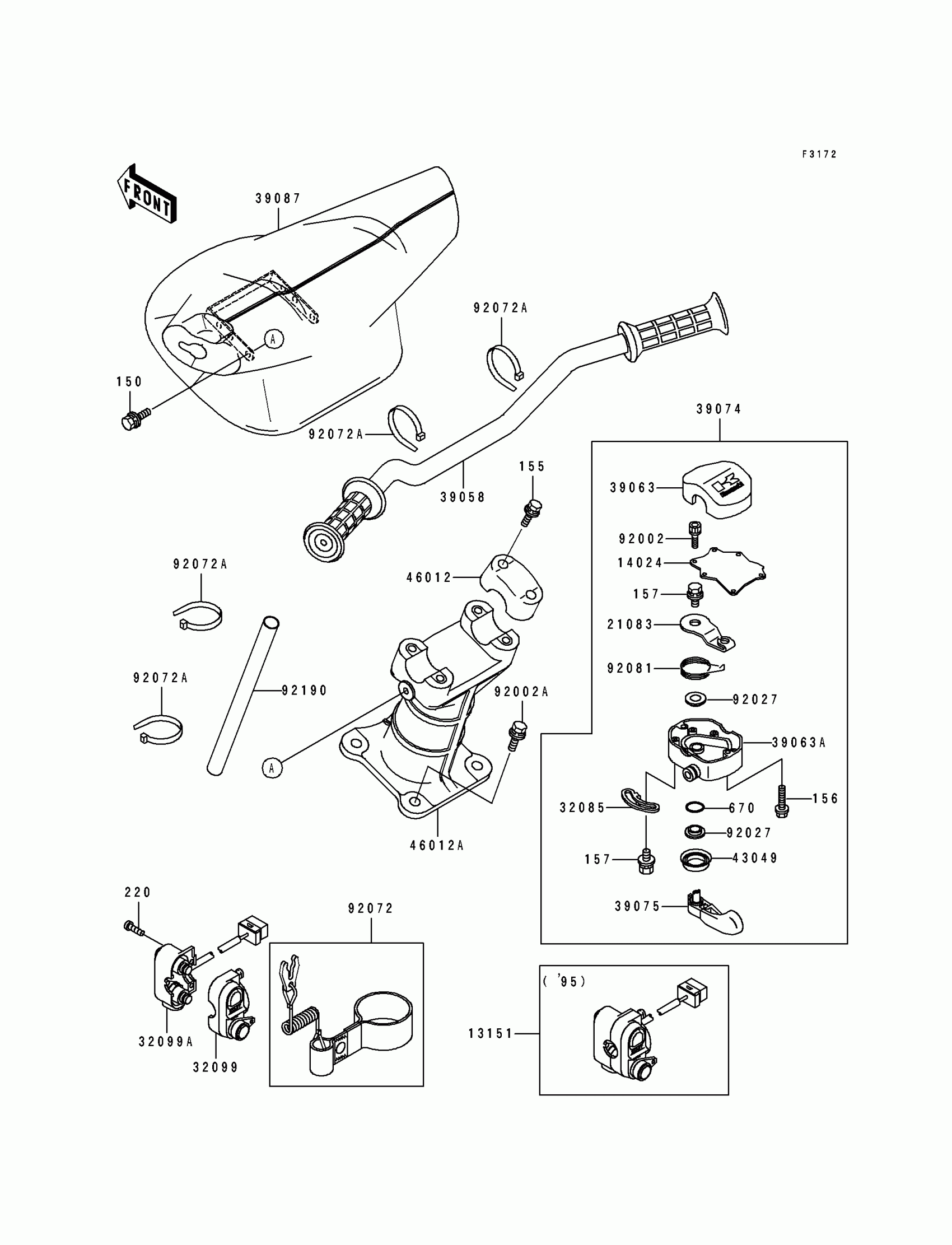

Kawasaki ST Handlebar Diagram

SWITCH-COMP,STOP&START

COVER,THROTTLE LEVER

ARM,THROTTLE LEVER

STOPPER

HANDLE-COMP

HOUSING-CONTROL,UPP

HOUSING-CONTROL,LWR

LEVER-ASSY-THROTTLE

LEVER-THROTTLE

PAD-HANDLE,GREEN 16

PACKING,THROTTLE LEVER

HOLDER-HANDLE,UPP

HOLDER-HANDLE,LWR

BOLT,SOCKET,3X10

BOLT,8X25

COLLAR,THROTTLE LEVER

BAND,TETHER SWITCH

BAND,L=201

SPRING,THROTTLE LEVER RETURN

TUBE,22X24X270

BOLT-WS,6X14

BOLT-WSP-SMALL,8X35

BOLT-WP,5X25

BOLT-WSP,5X12

SCREW-PAN-CROS,5X30

O RING,8MM
