Description

Price

11009

GASKET,TANK CAP

11009-3020

$13.51

11009A

GASKET

11009-3790

Unavailable

11047

BRACKET,FUEL FILTER

11047-3761

Unavailable

13091

HOLDER,TUBE

13091-3758

$11.19

49019

FILTER-FUEL

49019-3708

$59.17

49019A

FILTER-FUEL

49019-3710

$79.30

49057

VALVE-RELIEF

49057-3001

$64.85

51004

TANK-FUEL

51004-3718

Unavailable

51023

TAP-ASSY,FUEL

51023-3718

$137.47

51049

CAP-TANK,FUEL

51049-3719

$28.71

59231

FILLER,FUEL TANK

59231-3001

$17.77

92009

SCREW,4X8

92009-3729

$6.61

92009A

SCREW,5X16

92009-3789

$2.97

92011

SCREW

92011-562

$1.65

92022

WASHER

92022-563

$1.13

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP

92037-3009

$3.70

92057

CHAIN,COVER,L=100

92057-3704

$19.34

92072

BAND,L=149

92072-031

$5.00

92077

KNOB

92077-3717

$27.14

92190

TUBE,5.8X10.8X250

92190-3761

$6.46

92190A

TUBE,5.8X10.8X800

92190-3763

$22.46

92190B

TUBE,TANK-BREATHER

92190-3799

Unavailable

92190C

TUBE,"RES",5.8X10.8X420

92190-3889

$22.46

92190D

TUBE,"ON",5.8X10.8X420

92190-3890

$22.46

92190E

TUBE,FUEL FILLER

92190-3898

Unavailable

92190F

TUBE,5.8X10.8X590

92190-3902

$9.74

92190G

TUBE,"RETURN",CARB-TANK

92190-3903

$11.82

150

BOLT-WS,6X14

150R0614

$5.96

225

SCREW-PAN-WSP-CROS,5X16

225R0516

$4.99

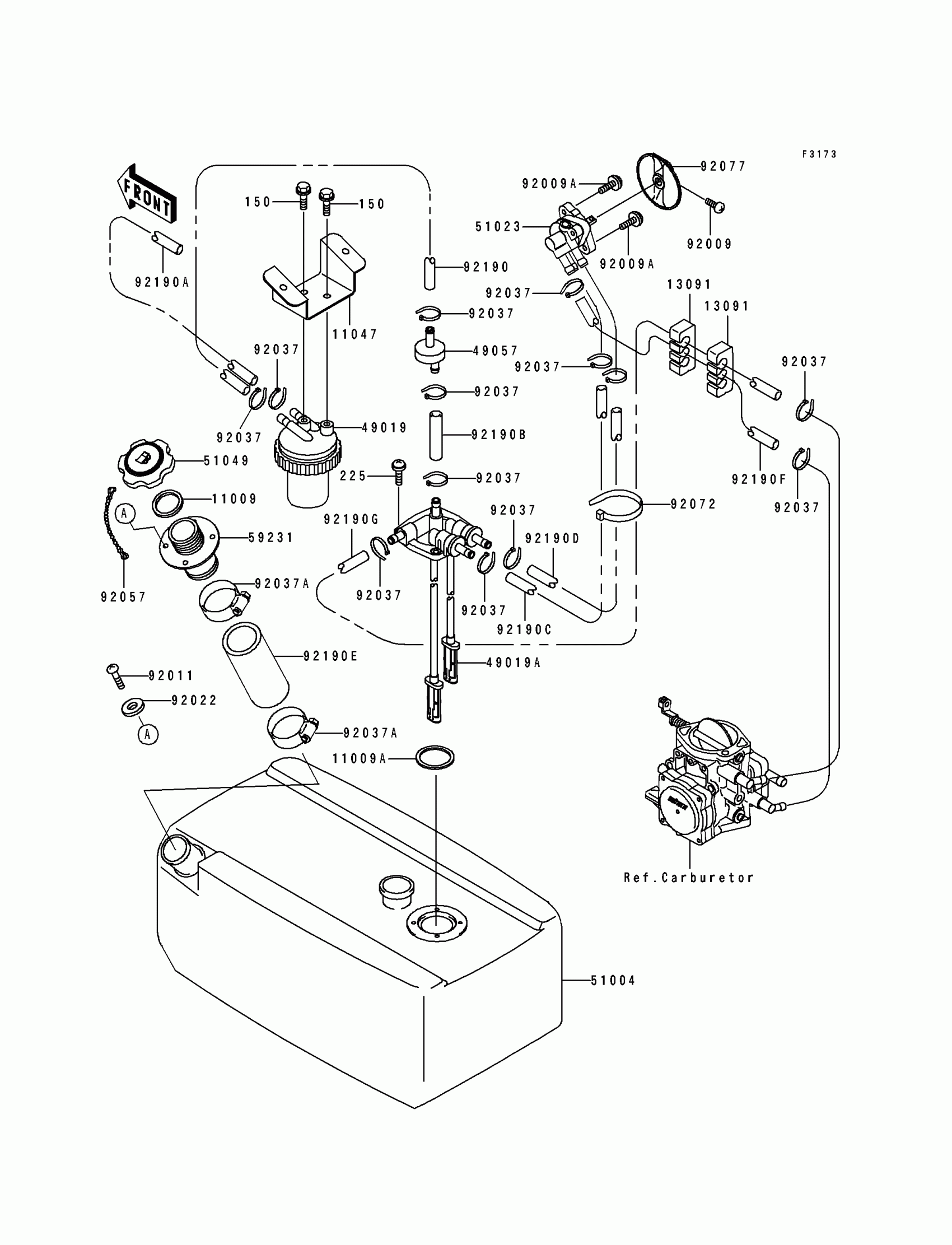

Kawasaki ST Fuel Tank Diagram

GASKET,TANK CAP

GASKET

BRACKET,FUEL FILTER

HOLDER,TUBE

FILTER-FUEL

FILTER-FUEL

VALVE-RELIEF

TANK-FUEL

TAP-ASSY,FUEL

CAP-TANK,FUEL

FILLER,FUEL TANK

SCREW,4X8

SCREW,5X16

SCREW

WASHER

CLAMP

CLAMP

CHAIN,COVER,L=100

BAND,L=149

KNOB

TUBE,5.8X10.8X250

TUBE,5.8X10.8X800

TUBE,TANK-BREATHER

TUBE,"RES",5.8X10.8X420

TUBE,"ON",5.8X10.8X420

TUBE,FUEL FILLER

TUBE,5.8X10.8X590

TUBE,"RETURN",CARB-TANK

BOLT-WS,6X14

SCREW-PAN-WSP-CROS,5X16
