1995 Kawasaki ST Cylinder Head/cylinder Diagram

← All diagrams

Find the part on the Cylinder Head/cylinder diagram for your 1995 Kawasaki ST, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

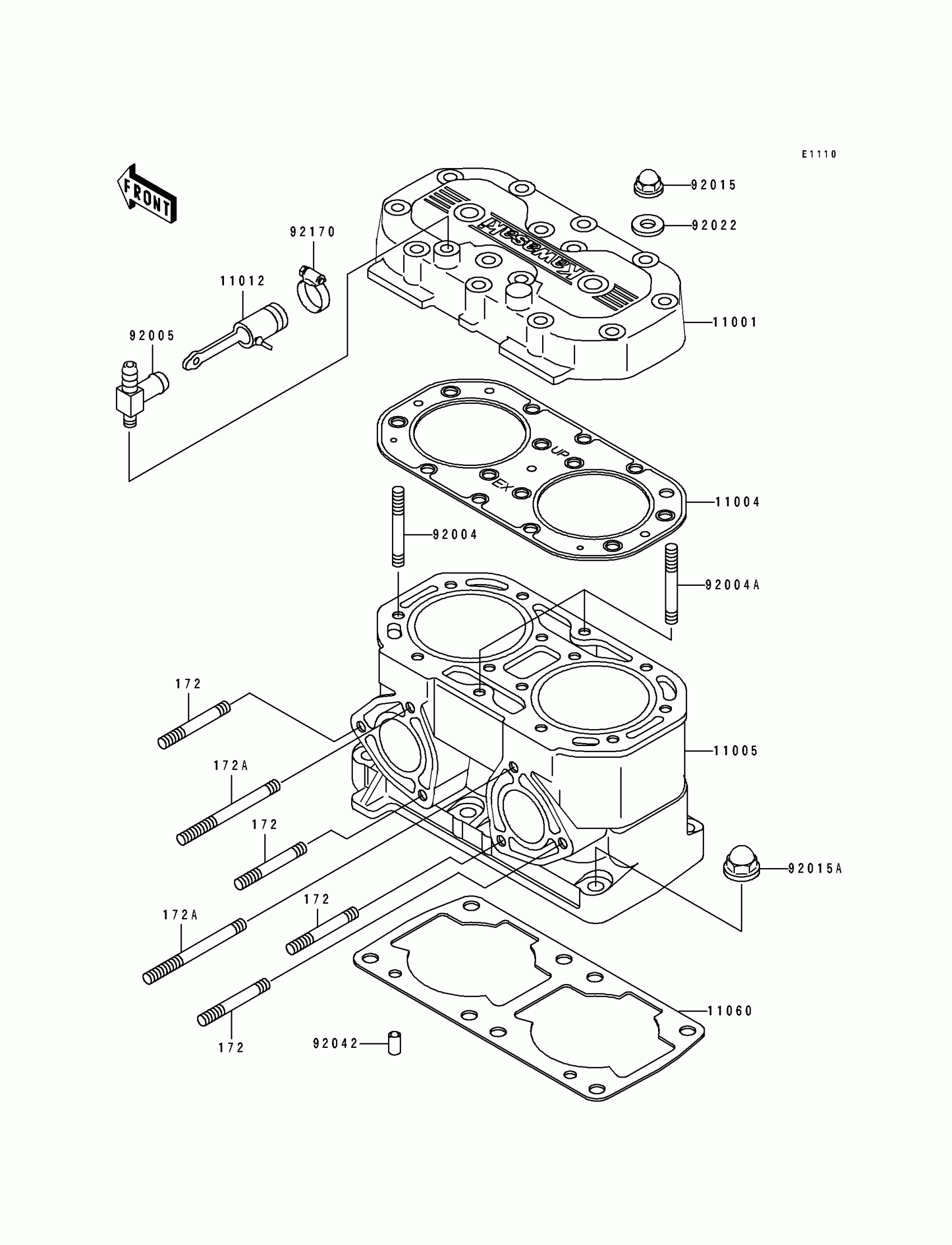

1995 Kawasaki ST Cylinder Head/cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11001

HEAD-CYLINDER

11001-3719

1
Out of stock

11004

GASKET-HEAD

11004-3708

1
Out of stock

11005

CYLINDER-ENGINE

11005-3722

1
Out of stock

11012

CAP

11012-3757

1
Out of stock

11060

GASKET,CYLINDER BASE

11060-3711

1
Out of stock

92004

STUD,8X43

92004-3715

1
Out of stock

92004A

STUD,8X43

92004-3719

1
Out of stock

92005

FITTING

92005-3711

1
Out of stock

92015

NUT,CAP,8MM

92015-1371

1
Out of stock

92015A

NUT,10MM

92015-1649

1
Out of stock

92022

WASHER,8.2X18X1.5

92022-1964

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92170

CLAMP

92170-3729

1
Out of stock

172

BOLT-STUD,8X30

172R0830

1
Out of stock

172A

BOLT-STUD,8X75

172R0875

1
Out of stock
