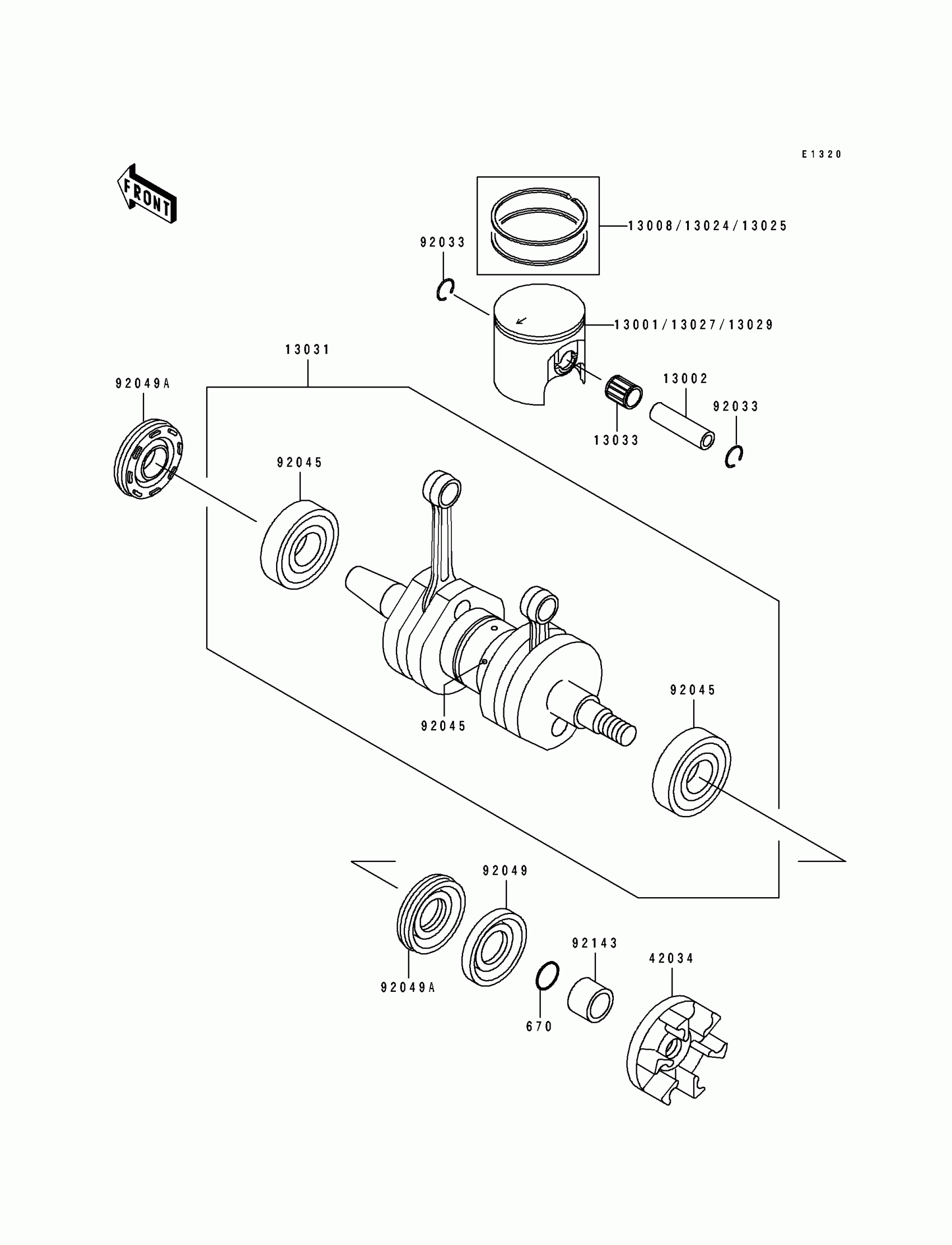

Kawasaki ST Crankshaft/Piston(s) Diagram

Description

Price

13001

PISTON-ENGINE,STD

13001-3718

Unavailable

13002

PIN-PISTON

13002-3702

$30.36

13008

RING-SET-PISTON,STD

13008-3708

$68.36

13024

RING-SET-PISTON LL,O/S 1.00

13024-3706

Unavailable

13025

RING-SET-PISTON L,O/S 0.50

13025-3706

Unavailable

13027

PISTON-ENGINE LL,O/S 1.00

13027-3710

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-3710

Unavailable

13031

CRANKSHAFT-COMP

13031-3726

$1,228.85

13033

BEARING-SMALL END

13033-3702

$30.80

42034

COUPLING

42034-3707

$56.93

92033

RING-SNAP

92033-1207

$1.65

92045

BEARING-BALL

92045-3714

$47.31

92049

SEAL-OIL,S30726

92049-3706

$14.27

92049A

SEAL-OIL,FWJ7307210ZS

92049-3713

$31.68

92143

COLLAR

92143-3735

$40.29

670

O RING,16MM

670B2016

$1.04
