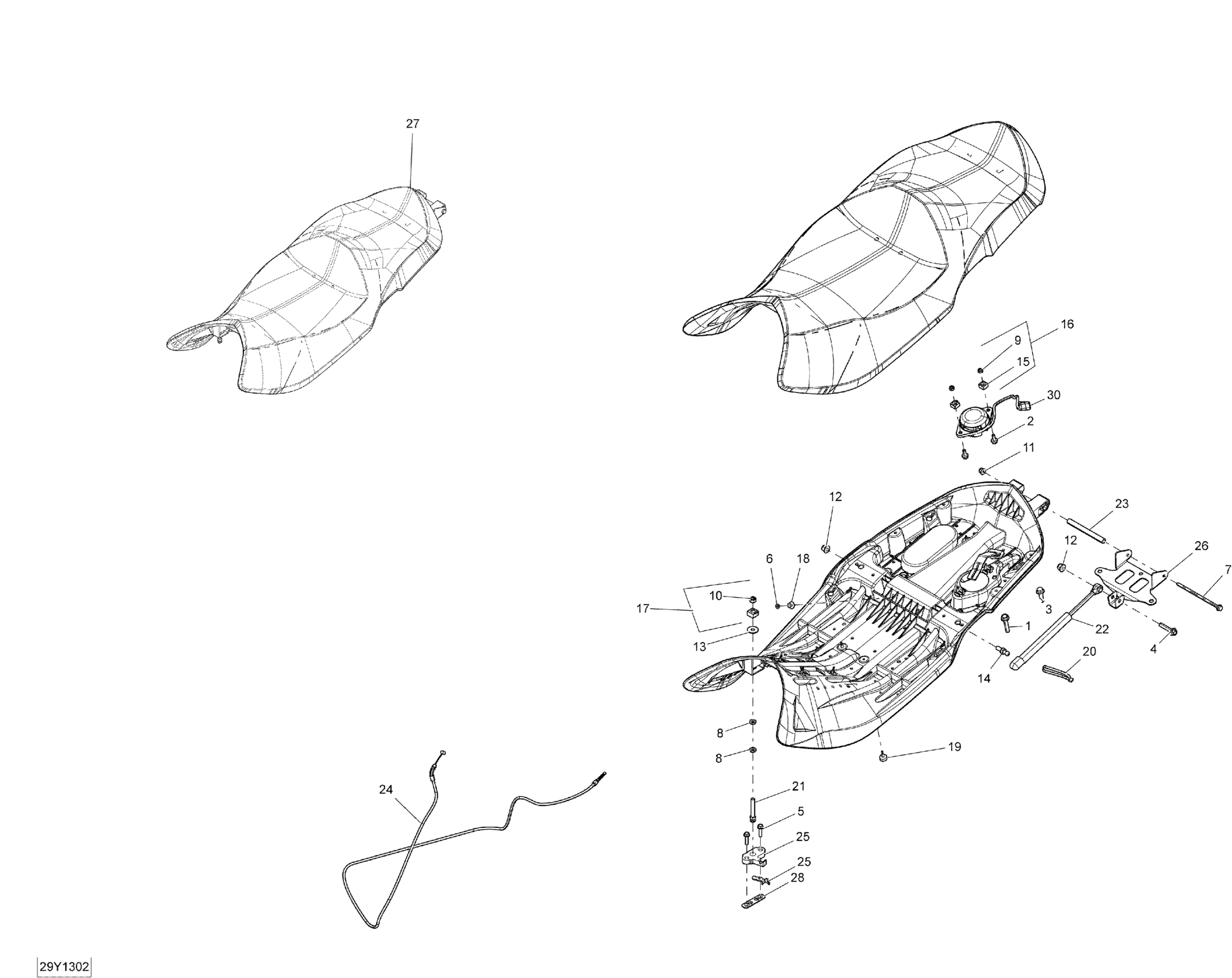

Can-Am ST, 2016 09- Seat Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.69

2

Hex. Flange Screw M6 X 16

207661644

$0.74

3

Hex. Flange Screw M8 X 30

207683034

$4.44

4

Hex. Flange Screw M8 X 40

207684044

$1.48

5

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

6

Flat Washer | XT

211200035

$0.55

7

Hex. Flange Screw M6 X 130

230663084

$3.38

8

Hex. Jam Nut M8

232180600

$0.67

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

Hex. Elastic Nut M8 Brass

232581200

$2.22

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Hex. Flange Elastic Nut M8

233281414

$1.47

13

Flat Washer 8 mm

234082410

$1.47

14

Ball Head Stud

250300039

$7.51

15

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

16

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

17

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

18

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

19

Rubber Stopper

708000759

$4.19

20

Tie-Rap 180 mm

414115200

$0.11

21

Lug

705002223

$25.99

22

Gaz Shock

708000479

$38.99

23

SPACER BUSHING - Call your local BRP dealership

708000824

Unavailable

24

Seat Cable

708001743

$53.99

25

Latch

705007379

$28.99

26

PIVOT PLATE - Call your local BRP dealership

708001770

Unavailable

27

SEAT ASSY - Call your local BRP dealership

708001938

Unavailable

28

Adjustable Latch

708002000

$14.49

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Passenger Detection Switch

710008103

$76.99
