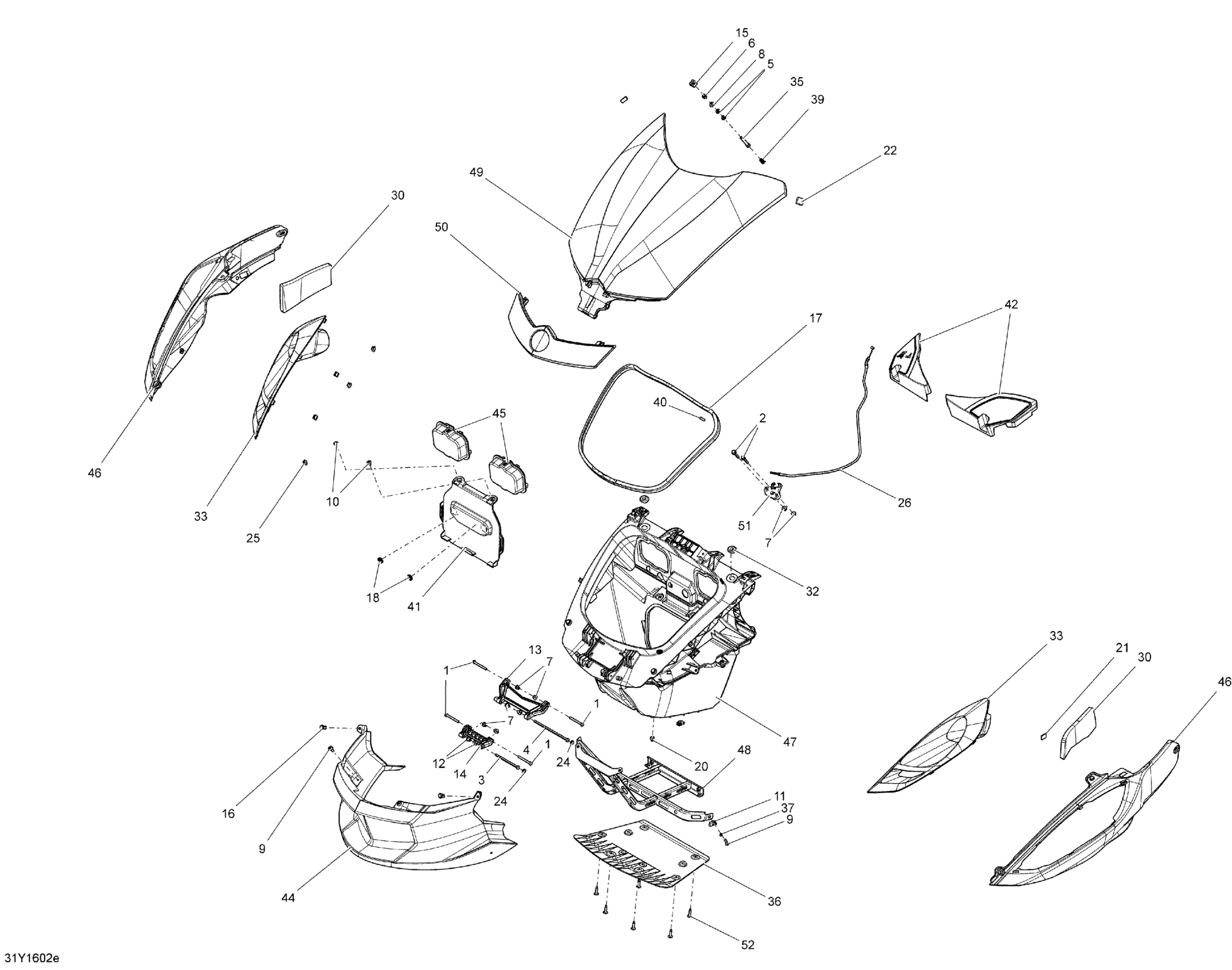

Can-Am ST, 2016 Body And Accessories - Front Storage Diagram

#

Description
Price

1

Hex. Screw M6 X 55

207065544

$1.70

2

Hex. Flange Screw M6 X 35

207663544

$0.74

3

Hex. Screw M6 X 100

230060060

$6.08

4

Hex. Screw M6 X 150

230065060

$10.14

5

Hex. Jam Nut M8

232180600

$0.56

6

Hex. Elastic Nut M8 Brass

232581200

$1.29

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

8

Flat Washer 8 mm

234081410

$0.69

9

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

10

Torx Screw M6 X 12

250000454

$3.61

11

Panel Nut M6 X 1.0

250100198

$1.73

12

Sleeve

269500706

$4.60

13

REAR ARM - Call your local BRP dealership

269501481

Unavailable

14

FRONT ARM - Call your local BRP dealership

269501482

Unavailable

15

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

16

Tuflok Plastic Rivet

293150230

$1.21

17

Neoprene Seal 3000Mm Long

219704371

$45.47

18

Dual Lock Velcro Washer 3/4"

293740028

$4.00

20

Rubber Bumper

293830005

$5.33

21

Rubber Pad

293830143

$18.00

22

Rubber Pad

293830175

$17.00

24

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

25

Clip

414479100

$1.86

26

Hood Cable

517305742

$43.00

30

LH FRONT PANEL FOAM - Call your local BRP dealership

518325515

Unavailable

30

RH FRONT PANEL FOAM - Call your local BRP dealership

518325516

Unavailable

32

Oval Washer

705000321

$4.64

33

LH Air Duct | Model-North America

705001541

$90.00

33

RH Air Duct | Model-North America

705001543

$90.00

35

Lug

705002223

$26.00

36

Skid Plate

705002837

$69.00

37

Plastic Washer

705003207

$1.00

38

Service Center | Model-RS

705003515

$26.00

39

Spring

705003911

$4.00

40

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

41

Battery Cover Ass'y | Includes 130 to 130c

705018040

$30.00

42

LH SERVICE CENTER - Call your local BRP dealership | Model-ST

705005394

$26.00

42

RH SERVICE CENTER - Call your local BRP dealership | Model-ST

705005774

$26.00

44

STEEL BLACK BUMPER COVER - Call your local BRP dealership | Model-ST S Steel Black Met.

705007666

Unavailable

44

COUVRE P-CHOCS *BUMPER COVER - Call your local BRP dealership | Model ST with Color Magma Red

705009956

Unavailable

45

Fuse Cover Ass'y | Includes 140 to 140b

705011444

$28.00

46

RH Front Panel | Model RS with Color Steel Black This part replaces 705007707.

705007685

$87.00

46

LH Front Panel | Model-Steel Black Met. Australie

705007684

$89.00

46

LH Front Panel | Model-Steel Black Met. Australie

705007684

$89.00

46

PANEL_BODY FR B-389 - Call your local BRP dealership | Model RS with Color Magma Red

705009955

Unavailable

47

Storage Bin Ass'y

705008320

$480.00

48

Front Frame

705201326

$82.00

49

Steel Black Hood | Model-Steel Black Met.

705007992

$660.00

49

HOOD - Call your local BRP dealership | Model RS with Color Magma Red

705009957

Unavailable

50

Front Facing | Model RS with Color Steel Black This part replaces 705004572.

705003876

$120.00

50

FRONT FACING - Call your local BRP dealership | Model RS with Color Magma Red

705009958

Unavailable

51

Latch

705007379

$29.00

52

Torx Screw M6 X 25 | XT Models

250000728

$3.61
