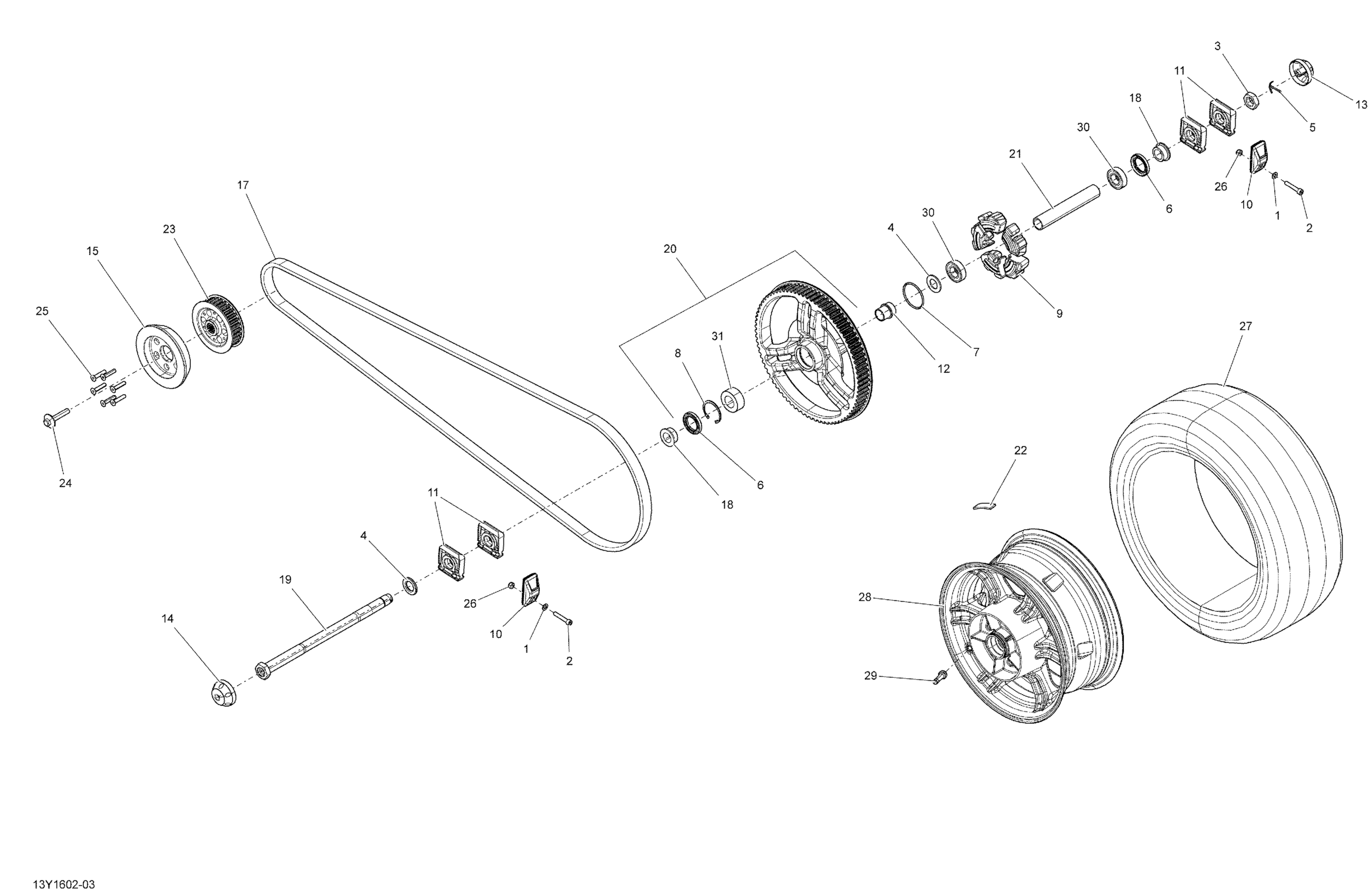

Can-Am ST, 2016 Drive System, Rear Diagram

#

Description
Price

1

Flat Washer 8 mm

234081410

$0.69

2

Socket Screw DIN.912

250000713

$3.00

3

Hex. Jam Nut M24

250100170

$12.00

4

Flat Washer

250200163

$3.40

5

Cotter Pin

250400047

$2.00

6

Seal

293200094

$9.31

7

O-Ring

293300124

$3.00

8

Circlip

293370053

$10.00

9

Damper

705500736

$24.00

10

Adjustment Support

705502450

$16.00

11

Sliding Block

705502448

$15.00

12

Spacer

705500853

$23.00

13

RH Cap

705501022

$9.00

14

LH Cap

705501081

$9.00

15

FLYWHEEL - Call your local BRP dealership | Model-RS

705501250

Unavailable

17

Drive Belt | Model-RS

705501576

$410.00

18

Spacer

705501602

$19.00

19

Rear Wheel Axle

705501691

$99.00

20

Carbon Black, Sprocket Wheel 79 Teeth Ass'y | Included 200 to 200d

705503311

$500.00

21

Spacer Tube

705502093

$18.00

22

Self Adhesive Weight, 5G 20mm

705502106

$4.35

23

Wheel_Sprocket 28 Teeth B-356 | Model-RS

705503315

$155.00

24

Hex Flange Screw DIN.6921 S.Grip

250001017

$13.00

25

Socket Screw M8 X 40, Scotch Grip | Model-RS

205884046

$2.00

26

Hex. Elastic Nut M8

250100141

$2.00

27

Rear Tire 225/50R15

705503310

Unavailable

28

Black, Rear Rim

705501992

$392.00

29

Rim Valve With Cap

705400193

$6.69

30

Ball Bearing

293350115

$11.15

31

Double Row Bearing

293350065

$34.00
