TRACK SUSPENSION 2

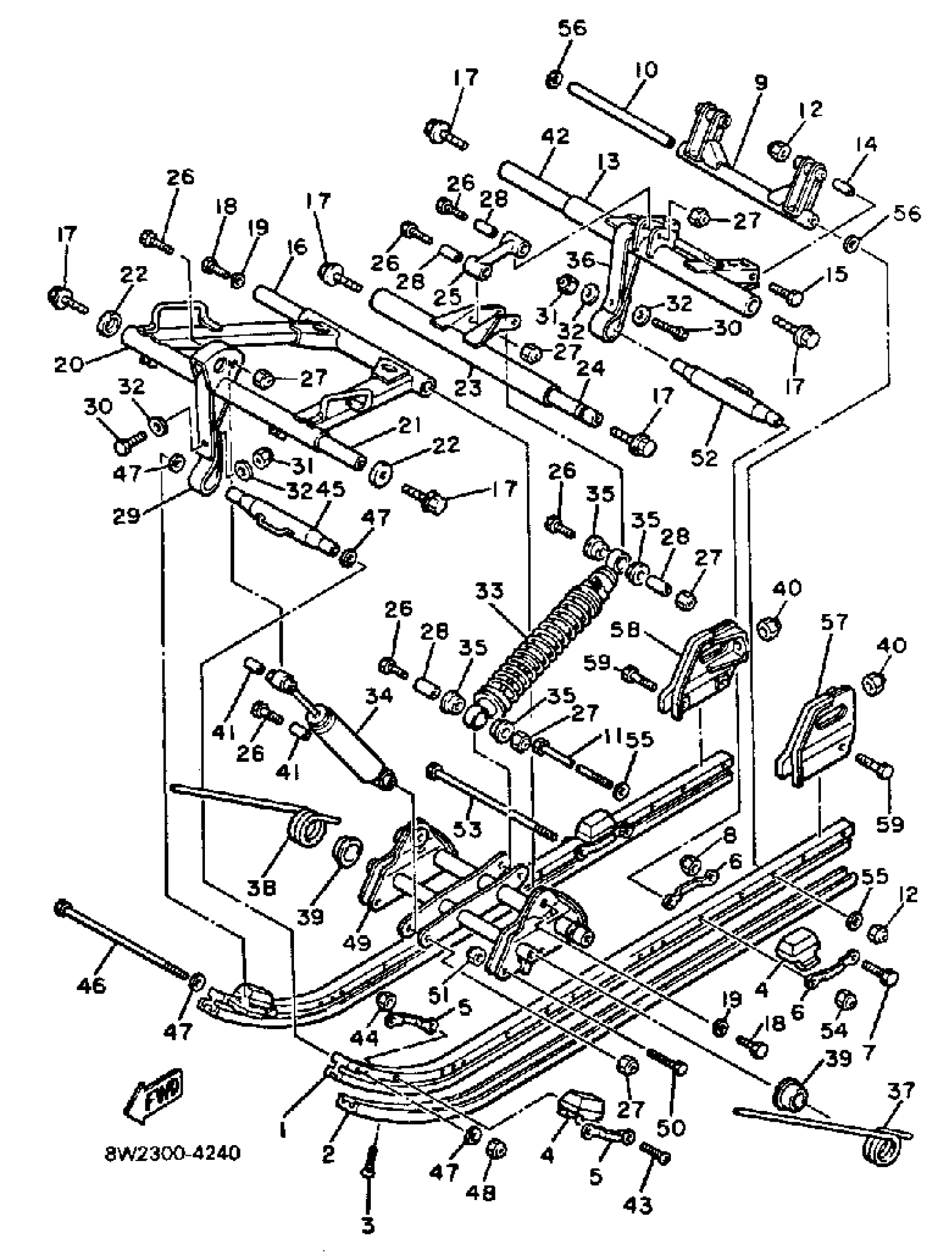

Yamaha SS440J (SS440) 1985 TRACK SUSPENSION 2 Diagram
#
1
FRAME, SLIDING 1
8L8-47411-01-00
Unavailable
2
RUNNER, SLIDING 1
8N8-47421-00-XX
Unavailable
3
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
4
DAMPER 1
8L8-47456-00-00
Unavailable
5
PLATE, DAMPER
885-47458-01-00
Unavailable
6
PLATE, DAMPER
8H8-47458-00-00
Unavailable
7
BOLT
97013-08035-00
$5.60
8
UNAVAILABLE IN PRICE BOOK
857-02083-00-00
Unavailable
9
BRACKET 3
8L8-47417-00-00
Unavailable
10
COLLAR (899 SUSPENSION)
90387-08496-00
Unavailable
11
BOLT (8M8)
90101-08374-00
Unavailable
12
NUT, NYLON
95717-08300-00
$2.70
13
ARM, PIVOT 2
8K2-47332-01-00
Unavailable
14
COLLAR (8K2)
90387-08754-00
$7.49
15
. BOLT
90101-08557-00
Unavailable
16
SHAFT 3
8K2-47485-00-00
Unavailable
17
BOLT (8V0)
90109-10771-00
Unavailable
18
BOLT (8J7)
97013-10030-00
Unavailable
19
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
20
ARM, PIVOT 1
8K2-47331-00-00
Unavailable
21
SHAFT 1
8A5-47465-02-00
Unavailable
22
SPACER
8U7-47341-00-00
Unavailable
23
BRACKET 5
8K2-47463-00-00
Unavailable
24
SHAFT 2
8L8-47475-00-00
Unavailable
25
BRACKET 6
8K2-47464-00-00
Unavailable
26
. BOLT
90101-08557-00
Unavailable
27
NUT, NYLON
95717-08300-00
$2.70
28
COLLAR (8K2)
90387-08754-00
$7.49
29
STOPPER 1
8E3-47495-00-00
Unavailable
30
BOLT(3RV)
97014-06035-00
Unavailable
31
NUT, NYLON
95707-06300-00
Unavailable
32
WASHER, PLATE
90201-06747-00
Unavailable
33
SHOCK ABSORBER
8L8-47480-00-00
Unavailable
34
SHOCK ABSORBER 2
8K4-47481-00-00
Unavailable
35
COLLAR
90387-13758-00
Unavailable
36
STOPPER 1
888-47495-02-00
Unavailable
37
SPRING, TORSION
90508-85471-00
Unavailable
38
SPRING, TORSION
90508-85472-00
Unavailable
39
COLLAR
90387-30759-00
Unavailable
40
NUT, NYLON
95707-10300-00
Unavailable
41
COLLAR
90387-08775-00
Unavailable
42
SHAFT 1
8L8-47465-00-00
Unavailable
43
SCREW, PAN HEAD
98517-05030-00
Unavailable
44
NUT, NYLON
95707-05300-00
Unavailable
45
BRACKET 1
899-47415-00-00
Unavailable
46
BOLT (8M8)
90101-08374-00
Unavailable
47
.. WASHER, PLATE
92990-08600-00
Unavailable
48
NUT, NYLON
95717-08300-00
$2.70
49
BRACKET 2
(8L8-47416-01-00)
Unavailable
50
BOLT(21W)
97017-06035-00
Unavailable
51
NUT, NYLON
95707-06300-00
Unavailable
52
COLLAR 1
8L8-47469-00-00
Unavailable
53
BOLT (8M8)
90101-08374-00
Unavailable
54
NUT, NYLON
95717-08300-00
$2.70
55
.. WASHER, PLATE
92990-08600-00
Unavailable
56
WASHER (1T1)
90201-08649-00
Unavailable
57
FRAME, SLIDING 2
8L8-47412-00-00
Unavailable
58
FRAME, SLIDING 3
8L8-47413-00-00
Unavailable
59
BOLT, WITH WASHER
90119-08008-00
Unavailable
