- SS440J (SS440) 1985
TRACK SUSPENSION 1

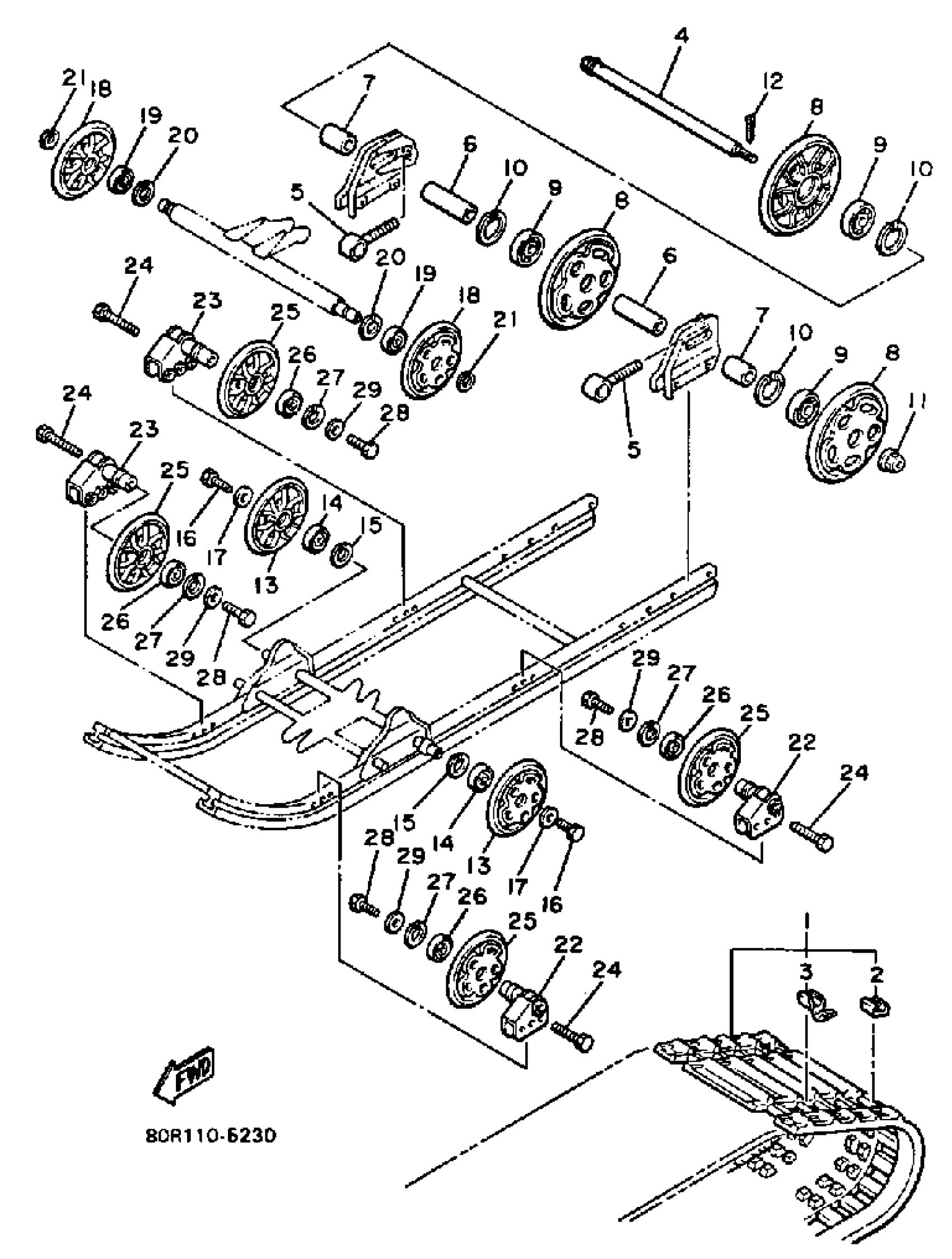

Yamaha SS440J (SS440) 1985 TRACK SUSPENSION 1 Diagram
#
Description
Price
1
TRACK ASY
8V0-47110-00-00
Unavailable
2
PLATE, REINFORCEMENT
89A-47113-00-00
$5.49
3
METAL, SLIDE
8A5-47115-00-00
Unavailable
4
REAR AXLE COMP.
8L8-47520-02-00
$89.99
5
COLLAR 3
8K2-47479-01-00
$30.99
6
COLLAR
90387-20756-00
Unavailable
7
COLLAR
90387-21757-00
Unavailable
8
GUIDE WHEEL COMP.
8K2-47530-00-00
$127.99
9
BRG,R-B 62042RS 47MM 110G KY
93306-20417-00
$40.99
10
CIRCLIP(48Y)
99009-47500-00
$9.49
11
NUT, SELF-LOCKING (8BF)
95607-14200-00
$12.49
12
PIN COTTER
91490-30025-00
$3.99
13
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
14
BEARING(8AB)
93306-00444-00
$41.99
15
CIRCLIP(5U8)
99009-42500-00
$8.49
16
BOLT (8K2)
90109-08559-00
Unavailable
17
WASHER (8G1)
90201-08681-00
Unavailable
18
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
19
BEARING(8AB)
93306-00444-00
$41.99
20
CIRCLIP(5U8)
99009-42500-00
$8.49
21
CIRCLIP(1AR)
99009-20400-00
Unavailable
22
BRACKET 4
8L8-47418-00-00
Unavailable
23
. BRACKET 7
8L8-47419-00-00
Unavailable
24
BOLT(21W)
97017-06035-00
Unavailable
25
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
26
BEARING(8AB)
93306-00444-00
$41.99
27
CIRCLIP(5U8)
99009-42500-00
$8.49
28
BOLT (8K2)
90109-08559-00
Unavailable
29
WASHER (8G1)
90201-08681-00
Unavailable
