- SS440J (SS440) 1985
STEERING

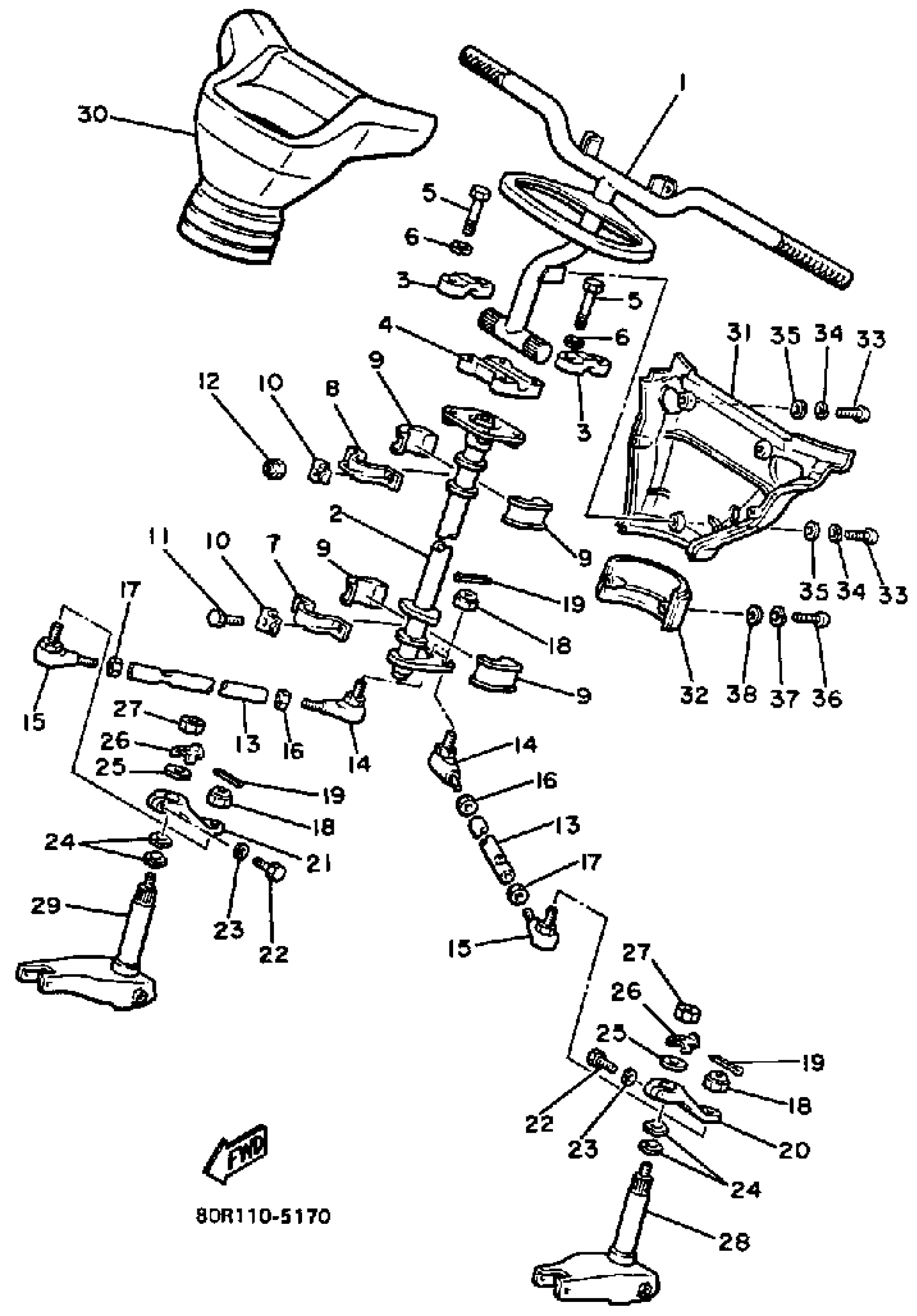

Yamaha SS440J (SS440) 1985 STEERING Diagram
#
1
COLUMN, STEERING
81R-23811-00-00
Unavailable
2
COLUMN, STEERING 2
8L8-23813-00-00
Unavailable
3
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
4
HANDLE, HOLDER
164-23441-01-98
Unavailable
5
BOLT, HEXAGON
97013-08055-00
$2.55
6
WASHER(JN5)
92907-08100-00
$8.49
7
BRACKET, STEERING LOWER
84M-23868-00-00
Unavailable
8
HOLDER, BEARING
84M-23872-00-00
Unavailable
9
BEARING, STEERING
8F3-23812-00-00
Unavailable
10
WASHER, LOCK 1
8AC-23894-01-00
$4.78
11
BOLT, HEXAGON
97013-08016-00
$1.01
12
NUT, NYLON
95717-08300-00
$2.70
13
ROD, STEERING RELAY
8K4-23821-00-00
Unavailable
14
JOINT, UNIVERSAL 1
86X-23841-00-00
$59.99
15
JOINT, UNIVERSAL 2
86X-23845-00-00
$61.99
16
NUT (682)
95380-10700-00
Unavailable
17
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
18
NUT, NYLON
95707-10300-00
Unavailable
19
PIN, COTTER
91490-20025-00
Unavailable
20
ARM, OUTSIDE 1
8K4-23851-00-00
Unavailable
21
ARM, OUTSIDE 2
8K4-23852-00-00
Unavailable
22
BOLT, HEXAGON
97017-08025-00
Unavailable
23
WASHER(JN5)
92907-08100-00
$8.49
24
WASHER, WAVE (878)
90206-20037-00
Unavailable
25
WASHER, PLATE (3J6)
90201-100A1-00
Unavailable
26
WASHER, LOCK
90215-10096-00
Unavailable
27
NUT(3BM)
95314-10600-00
Unavailable
28
COLUMN, SKI 1
8L8-23853-00-00
Unavailable
29
COLUMN, SKI 2
8L8-23854-00-00
Unavailable
30
PAD, STEERING
8L8-23815-01-00
Unavailable
31
. PAD, STEERING
8L8-23817-02-00
Unavailable
32
COVER, STEERING
8Y0-23818-00-00
Unavailable
33
SCREW, PAN HEAD
90157-05M19-00
Unavailable
34
WASHER(3SX)
92907-05100-00
Unavailable
35
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
36
SCREW, PAN HEAD
98517-04012-00
Unavailable
37
WASHER(6TA)
92907-04100-00
Unavailable
38
WASHER(JF2)
92907-04600-00
Unavailable
