Description

Price

1

GUARD, DRIVE

(8L8-77311-01-00)

Unavailable

2

SHAFT

8F3-77327-00-00

Unavailable

3

PIN(8E7)

91701-06082-00

$5.60

4

CLIP

90468-18008-00

Unavailable

5

LABEL, WARNING 2

8BD-77762-00-00

$7.99

6

BOX, TOOL

8N8-77381-00-00

Unavailable

7

HOOK 1

8K4-77386-00-00

Unavailable

8

RIVET, BLIND (8R6)

90267-48086-00

$4.14

9

WASHER, PLATE

90201-04027-00

$3.02

10

PROTECTOR

8N8-77373-00-00

Unavailable

11

RIVET, BLIND (8K2)

90267-48079-00

$3.50

12

WASHER, PLATE

90201-04027-00

$3.02

13

LID, TOOL BOX

8N8-77382-00-00

Unavailable

14

SCREW, BINDING

98907-06014-00

$7.99

15

SCREW, BIND(J39)

98980-06014-00

$9.49

16

WASHER, PLATE

90201-06380-00

Unavailable

17

WASHER, SPRING

92907-06100-00

Unavailable

18

NUT(4MY)

95307-06800-00

Unavailable

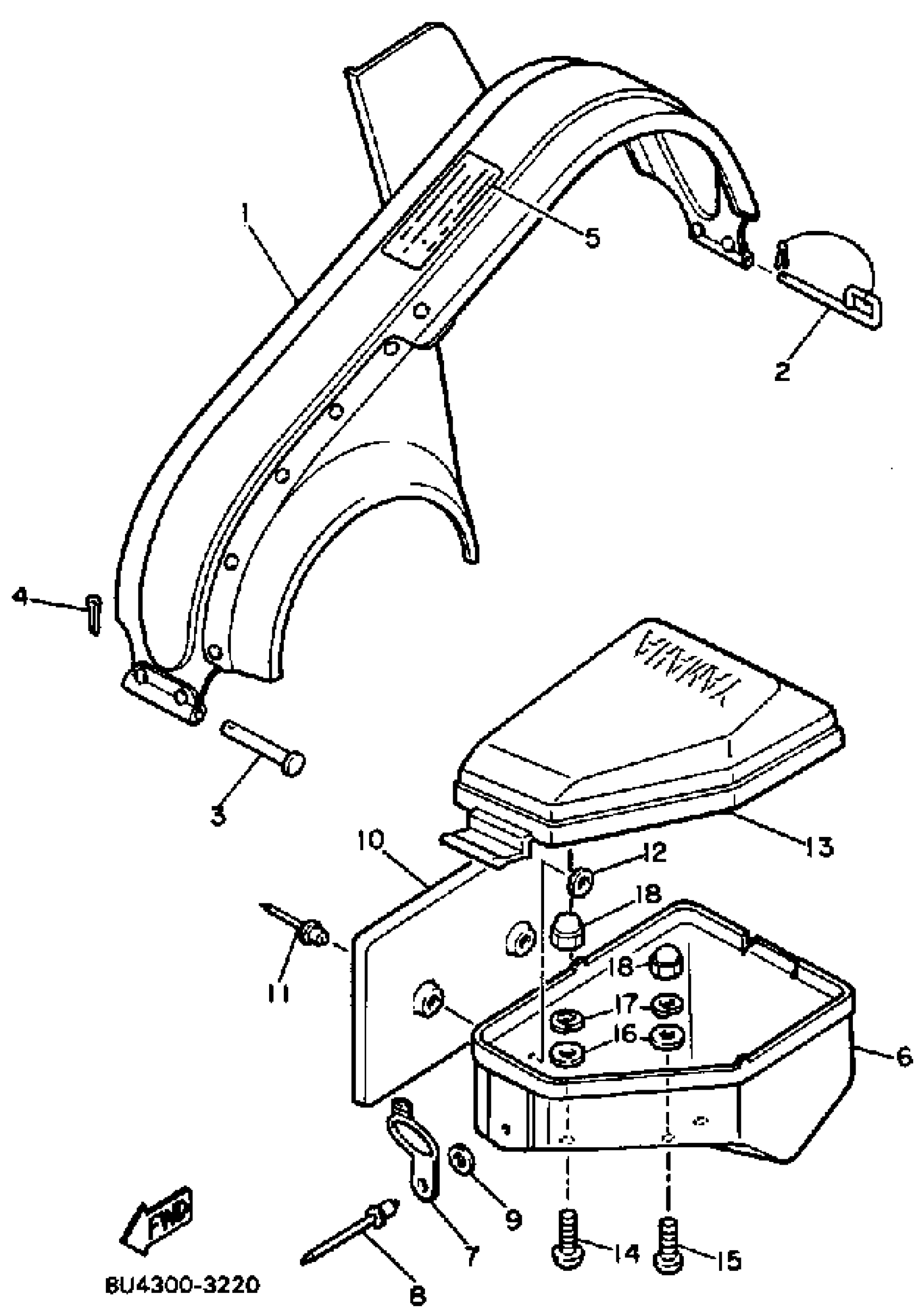

Yamaha SS440J (SS440) 1985 GAURD - LUGGAGE BOX Diagram

GUARD, DRIVE

SHAFT

PIN(8E7)

CLIP

LABEL, WARNING 2

BOX, TOOL

HOOK 1

RIVET, BLIND (8R6)

WASHER, PLATE

PROTECTOR

RIVET, BLIND (8K2)

WASHER, PLATE

LID, TOOL BOX

SCREW, BINDING

SCREW, BIND(J39)

WASHER, PLATE

WASHER, SPRING

NUT(4MY)
