Description

Price

1

C.D.I. UNIT ASSEMBLY

8V0-85540-21-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$71.99

4

BOLT(8CP)

97017-06014-00

$8.49

5

NUT, NYLON

95707-06300-00

$3.50

6

IGNITION COIL ASY

8E7-82310-09-00

Unavailable

7

SCREW PAN HEAD

98580-06020-00

$8.49

8

WASHER, SPRING

92995-06100-00

Unavailable

9

CLAMP, CORD

861-82361-00-00

Unavailable

10

PLUG CAP ASSY

85G-82370-20-00

$34.99

11

SEAL

8G5-82372-00-00

$5.60

12

MAIN SWITCH ASSY

8K4-82510-20-00

Unavailable

13

WIRE HARNESS ASSEMBLY

8Y0-82590-20-00

Unavailable

14

COVER, CONNECTER

8Y0-82599-00-00

Unavailable

15

CLAMP

90465-08028-00

Unavailable

16

BOLT (661)

97013-06012-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

BAND, SWITCH CORD

437-83936-01-00

Unavailable

19

CLAMP

90462-06079-00

Unavailable

20

BOLT (661)

97013-06012-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

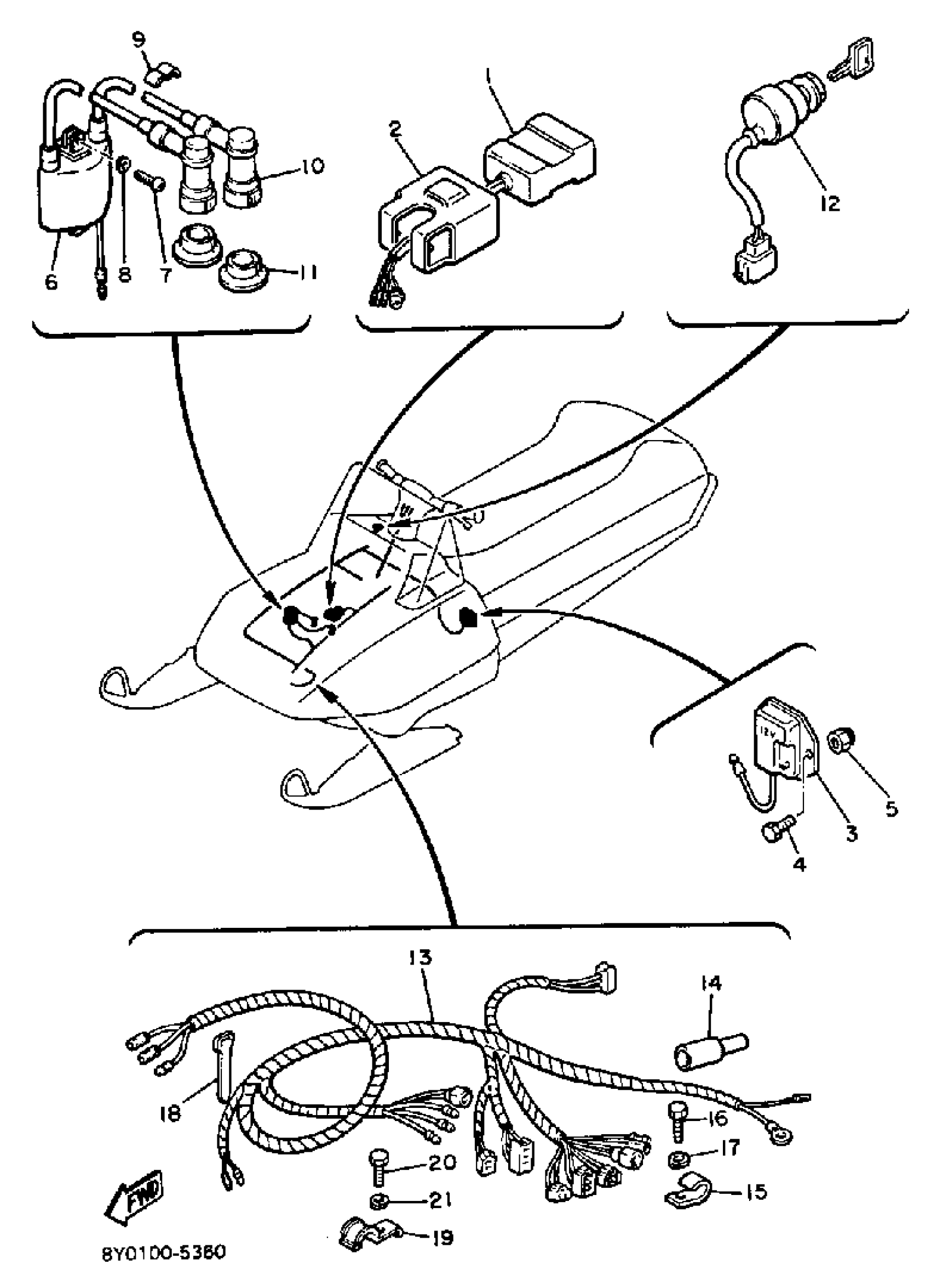

Yamaha SS440J (SS440) 1985 ELECTRICAL 1 Diagram

C.D.I. UNIT ASSEMBLY

BAND

VOLTAGE REGULATOR ASSY

BOLT(8CP)

NUT, NYLON

IGNITION COIL ASY

SCREW PAN HEAD

WASHER, SPRING

CLAMP, CORD

PLUG CAP ASSY

SEAL

MAIN SWITCH ASSY

WIRE HARNESS ASSEMBLY

COVER, CONNECTER

CLAMP

BOLT (661)

WASHER, SPRING

BAND, SWITCH CORD

CLAMP

BOLT (661)

WASHER, SPRING
