Description

Price

1

TRACK ASY

8V0-47110-00-00

Unavailable

1

PLATE, REINFORCEMENT

89A-47113-00-00

$5.49

2

METAL, SLIDE

8A5-47115-00-00

Unavailable

3

REAR AXLE COMP.

8L8-47520-02-00

$89.99

4

COLLAR 3

8K2-47479-01-00

$30.99

5

COLLAR

90387-20756-00

Unavailable

6

COLLAR

90387-21757-00

Unavailable

7

GUIDE WHEEL COMP.

8K2-47530-00-00

$127.99

8

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$40.99

9

CIRCLIP(48Y)

99009-47500-00

$9.49

10

NUT, SELF-LOCKING (8BF)

95607-14200-00

$12.49

11

PIN COTTER

91490-30025-00

$3.99

12

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

13

BEARING(8AB)

93306-00444-00

$41.99

14

CIRCLIP(5U8)

99009-42500-00

$8.49

15

BOLT (8K2)

90109-08559-00

Unavailable

16

WASHER (8G1)

90201-08681-00

Unavailable

17

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

18

BEARING(8AB)

93306-00444-00

$41.99

19

CIRCLIP(5U8)

99009-42500-00

$8.49

20

CIRCLIP(1AR)

99009-20400-00

Unavailable

21

BRACKET 4

8L8-47418-00-00

Unavailable

22

. BRACKET 7

8L8-47419-00-00

Unavailable

23

BOLT(21W)

97017-06035-00

Unavailable

24

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

25

BEARING(8AB)

93306-00444-00

$41.99

26

CIRCLIP(5U8)

99009-42500-00

$8.49

27

BOLT (8K2)

90109-08559-00

Unavailable

28

WASHER (8G1)

90201-08681-00

Unavailable

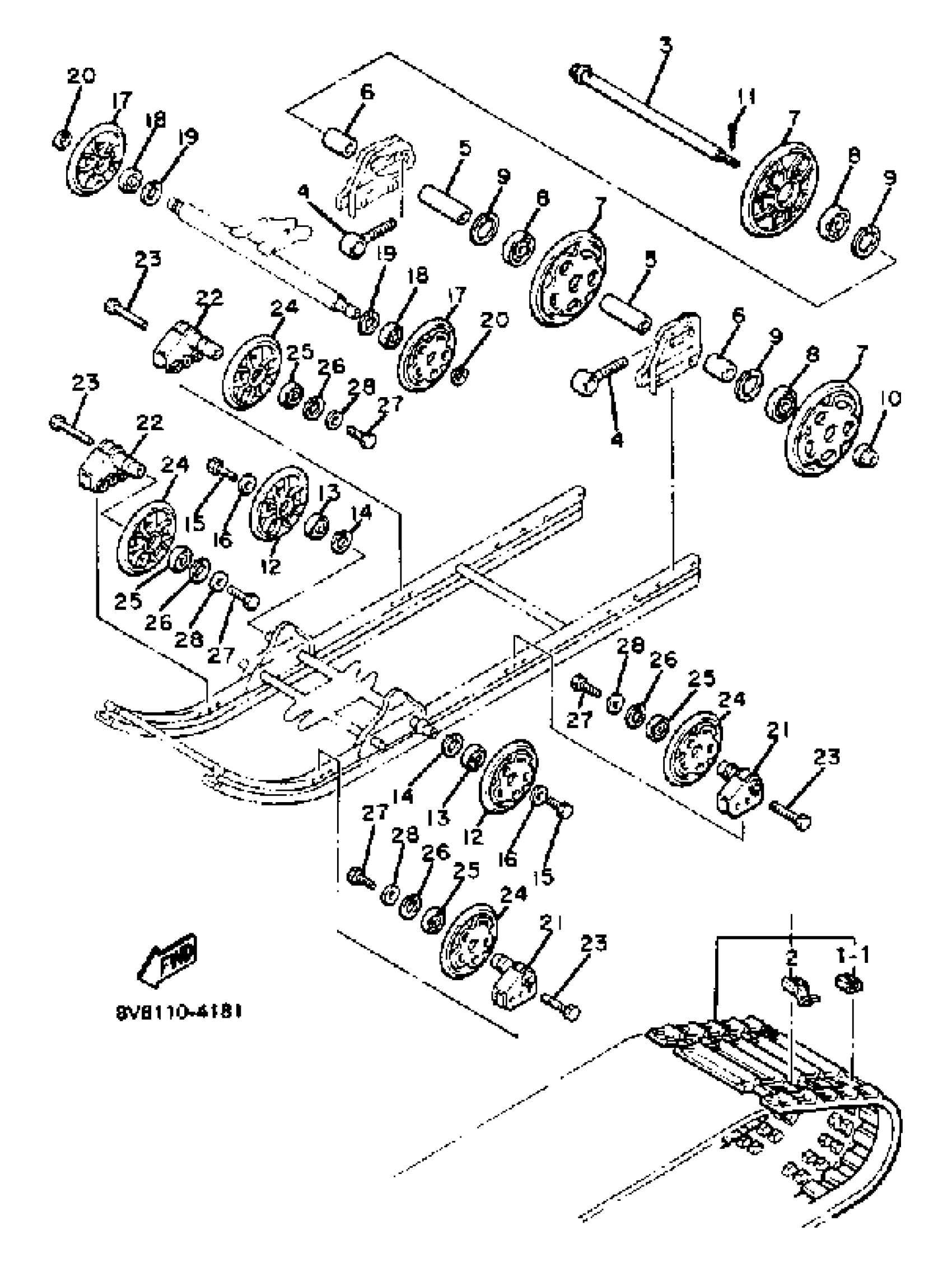

Yamaha SS440H (SS440) 1984 TRACK SUSPENSION 1 Diagram

TRACK ASY

PLATE, REINFORCEMENT

METAL, SLIDE

REAR AXLE COMP.

COLLAR 3

COLLAR

COLLAR

GUIDE WHEEL COMP.

BRG,R-B 62042RS 47MM 110G KY

CIRCLIP(48Y)

NUT, SELF-LOCKING (8BF)

PIN COTTER

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

BOLT (8K2)

WASHER (8G1)

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

CIRCLIP(1AR)

BRACKET 4

. BRACKET 7

BOLT(21W)

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

BOLT (8K2)

WASHER (8G1)
