- SS440H (SS440) 1984
SHROUD - WINDSHIELD

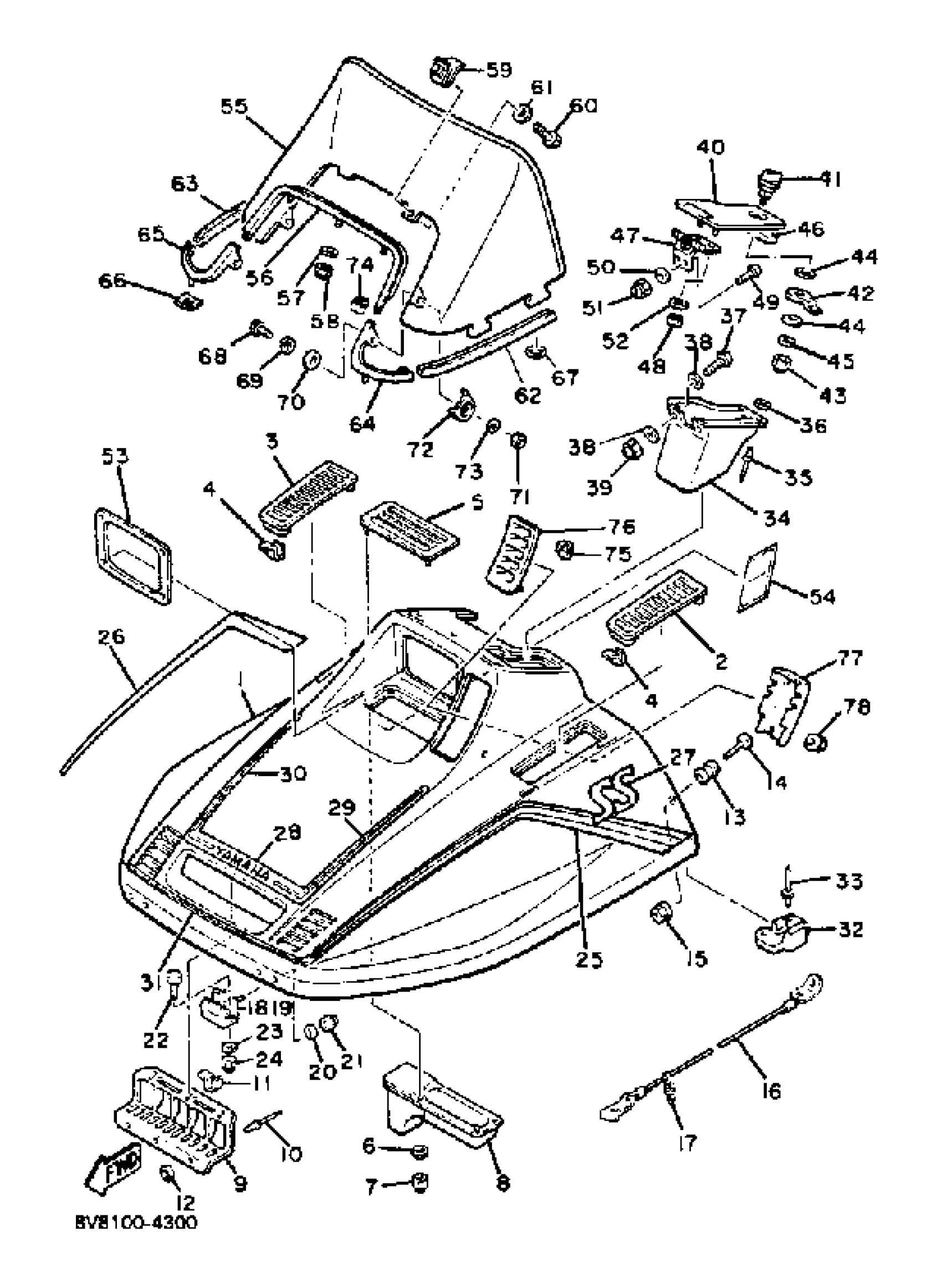

Yamaha SS440H (SS440) 1984 SHROUD - WINDSHIELD Diagram
#
1
SHROUD ASSEMBLY
8V8-W7711-01-00
Unavailable
2
LOUVER 3
8L9-77133-00-00
Unavailable
3
LOUVER 4
8L9-77134-00-00
Unavailable
4
CLIP
90468-05094-00
Unavailable
5
LOUVER 5 (83W-77109-00)
8L9-77109-00-00
Unavailable
6
WASHER, PLATE 8067717800
90201-05029-00
$8.49
7
NUT, NYLON
95707-05300-00
$4.24
8
INSULATOR
8K4-7712E-00-00
Unavailable
9
DUCT
8K4-77194-00-00
Unavailable
10
RIVET, BLIND (8H4)
90267-48053-00
$3.61
11
CLIP(80V)
90468-05176-00
Unavailable
12
WASHER, PLATE
90201-04027-00
$3.02
13
. HOLDER, LATCH
8M6-77175-00-00
Unavailable
14
SCREW, BINDING
98907-06030-00
$8.49
15
NUT, FLANGE(7NB)
95780-06500-00
$2.60
16
STOPPER, SHROUD
8K4-77118-00-00
Unavailable
17
CLAMP,ROD
838-77159-00-00
Unavailable
18
HINGE ASSEMBLY
8L8-77140-00-00
Unavailable
19
HINGE ASSEMBLY 2
8L8-7714A-00-00
Unavailable
20
WASHER, PLATE
90201-067A6-00
Unavailable
21
NUT, NYLON
95707-06300-00
Unavailable
22
BOLT(8CP)
97017-06014-00
Unavailable
23
WASHER, PLATE (4L0)
90201-062A8-00
Unavailable
24
NUT, NYLON
95707-06300-00
Unavailable
25
ORNAMENT 1
8V8-77163-00-00
Unavailable
26
ORNAMENT 2
8V8-77164-00-00
Unavailable
27
EMBLEM 1
8V8-77351-00-00
Unavailable
28
STRIPE 1
8V8-77281-00-00
Unavailable
29
STRIPE 2
8V8-77282-00-00
Unavailable
30
STRIPE 3
8V8-77283-00-00
Unavailable
31
STRIPE 4
8V8-77284-00-00
Unavailable
32
STOPPER
8K4-77188-00-00
Unavailable
33
RIVET, BLIND (8R6)
90267-48086-00
Unavailable
34
LUGGAGE BOX
8K4-77391-00-00
Unavailable
35
RIVET, BLIND
90267-489UJ-00
Unavailable
36
WASHER, PLATE
90201-04027-00
$3.02
37
SCREW, PAN
98517-06020-00
Unavailable
38
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
39
NUT, NYLON
95707-06300-00
Unavailable
40
COVER, LUGGAGE BOX
8L9-77392-00-00
Unavailable
41
KNOB
8L9-77324-00-00
Unavailable
42
LEVER, ARM FITTING
8K4-77328-00-00
Unavailable
43
NUT, NYLON
95707-05300-00
$4.24
44
WASHER, PLAIN(735)
90201-10119-00
Unavailable
45
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
46
DAMPER 2
8K4-77374-00-00
Unavailable
47
HINGE ASSEMBLY
8K4-77470-00-00
Unavailable
48
NUT, CAP
95307-05800-00
Unavailable
49
SCREW, PAN HEAD
90157-05M19-00
Unavailable
50
WASHER, PLATE 8067717800
90201-05029-00
$8.49
51
NUT, NYLON
95707-05300-00
$4.24
52
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
53
TRIM 1
8K4-77165-00-00
Unavailable
54
INDICATOR 3
8N8-77743-00-00
Unavailable
55
WINDSHIELD (8L0-77210-00)
8L0-77210-00-XX
Unavailable
56
TRIM, LOWER
8L0-77214-00-00
Unavailable
57
WASHER, PLAIN (646)
92990-05600-00
Unavailable
58
NUT, NYLON
95707-05300-00
$4.24
59
BRACKET, WNDSHLD R
8K4-77222-00-00
Unavailable
60
BOLT(3JP)
97017-06010-00
Unavailable
61
WASHER, SPRING
92995-06100-00
Unavailable
62
TRIM 3
8L0-77215-00-00
Unavailable
63
TRIM 4
8L0-77216-00-00
Unavailable
64
TRIM 5
8L0-77225-00-00
Unavailable
65
TRIM 6
8L0-77226-00-00
Unavailable
66
NUT, SPRING(8AJ)
90183-05068-00
Unavailable
67
FASTNER
82H-77223-00-00
Unavailable
68
BOLT, HEXAGON
97313-05016-00
Unavailable
69
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
70
WASHER PLATE 829771780000
90201-05033-00
Unavailable
71
NUT, CAP
95307-05800-00
Unavailable
72
WASHER, SPECIAL
8L9-77116-00-00
Unavailable
73
WASHER, PLATE
90201-06045-00
Unavailable
74
CLAMP 2
8L0-77136-00-00
Unavailable
75
CLIP
90468-05094-00
Unavailable
76
LOUVER 6
8V8-77108-00-00
Unavailable
77
PLATE 1
8V8-77185-00-00
Unavailable
78
NUT, FLANGE
95707-04500-00
Unavailable
