CARBURETOR

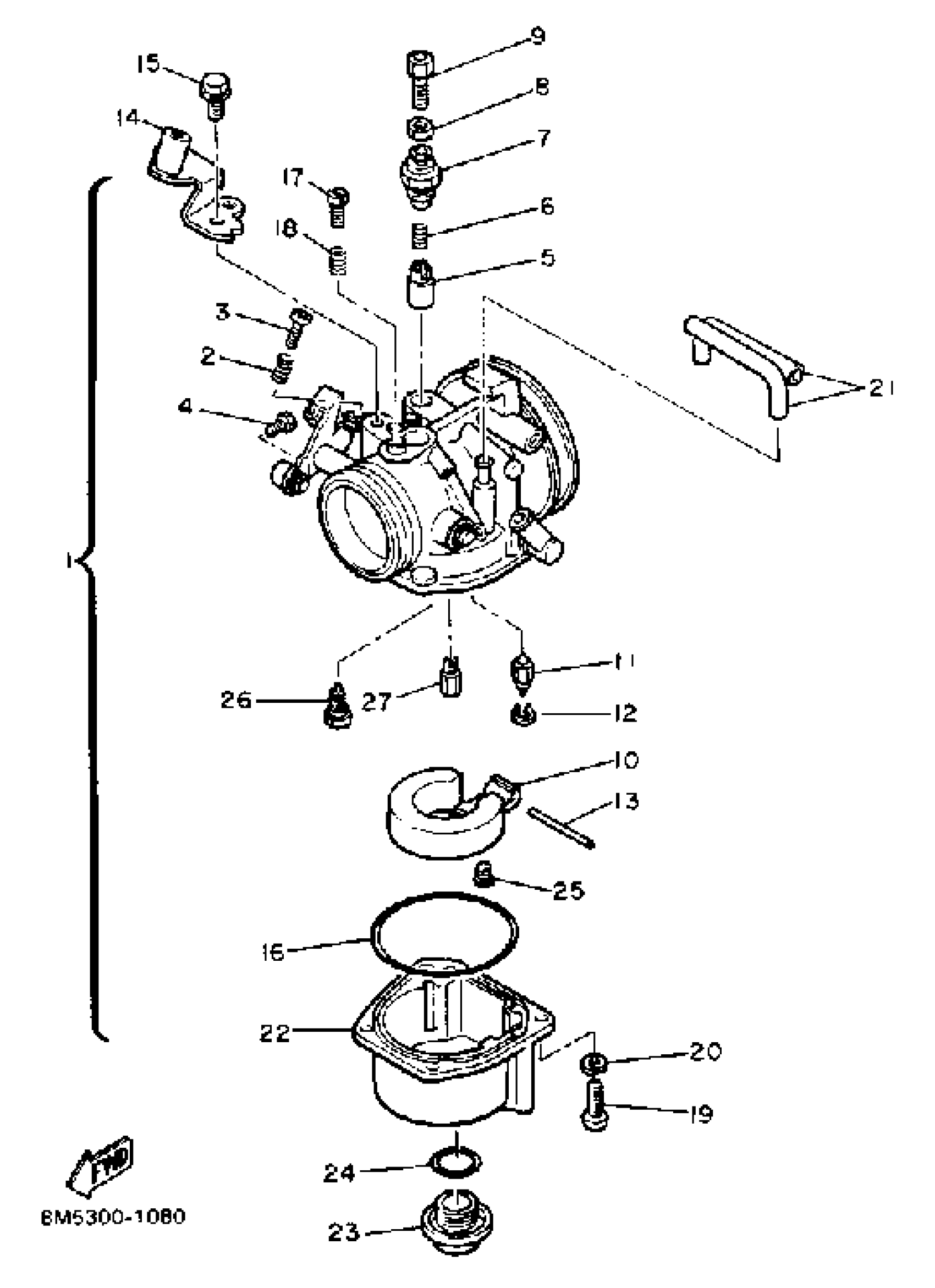

Yamaha SS440H (SS440) 1984 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
8L8-14101-01-00
Unavailable
2
. SPRING, COMPRESSION
90501-12229-00
Unavailable
3
. SCREW, PAN HEAD
90157-04010-00
Unavailable
4
SCREW, PAN HEAD (713)
98580-04008-00
$5.60
5
PLUNGER, STARTER
371-14993-60-00
$36.99
6
SPRING (8E7)
90501-08443-00
$10.49
7
CAP, PLUNGER
8A6-14969-00-00
$28.99
8
. NUT, CABLE ADJUSTING
8E7-14161-00-00
Unavailable
9
BOLT, STARTER CABLE ADJUSTING
8A6-14977-00-00
$20.99
10
FLOAT
8G6-14985-01-00
$40.99
11
VALVE,FLOAT
8E7-14546-01-00
$62.99
12
CLIP
633-14159-00-00
$15.49
13
. PIN, FLOAT ARM
663-14548-00-00
Unavailable
14
. PLATE, STAY
8G6-14572-00-00
Unavailable
15
. SCREW
8G6-14592-00-00
Unavailable
16
WASHER, FLOAT CHAMBER
8G6-14984-00-00
Unavailable
17
SCREW, ADJUST
8G6-14521-00-00
Unavailable
18
SPRING, COMPRESSION
90501-08214-00
Unavailable
19
SCREW, PN/HD.W/WSHR
(97602-04114-00)
Unavailable
20
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
21
. NET, FILTER
8G6-14994-01-00
Unavailable
22
BODY, FLOAT CHAMBER
(8K4-14980-02-00)
Unavailable
23
. ROD
8M7-14992-00-00
Unavailable
24
O-RING (8A6)
93210-19309-00
Unavailable
25
SCREW, FLAT
98707-04008-00
Unavailable
26
. JET #80
8G6-14948-19-00
Unavailable
27
. JET, MAIN #130
8A6-14516-30-00
Unavailable
27
. JET, MAIN #135
8A6-14516-35-00
Unavailable
27
. JET, MAIN #140
8A6-14516-40-00
Unavailable
27
. JET, MAIN #145
8A6-14516-45-00
Unavailable
27
. JET, MAIN #150
8A6-14516-50-00
Unavailable
27
. JET, MAIN #155
8A6-14516-55-00
Unavailable
27
. JET, MAIN #160
8A6-14516-60-00
Unavailable
27
. JET, MAIN #165
8A6-14516-65-00
Unavailable
