- SS440H (SS440) 1984
AIR SHROUD - FAN

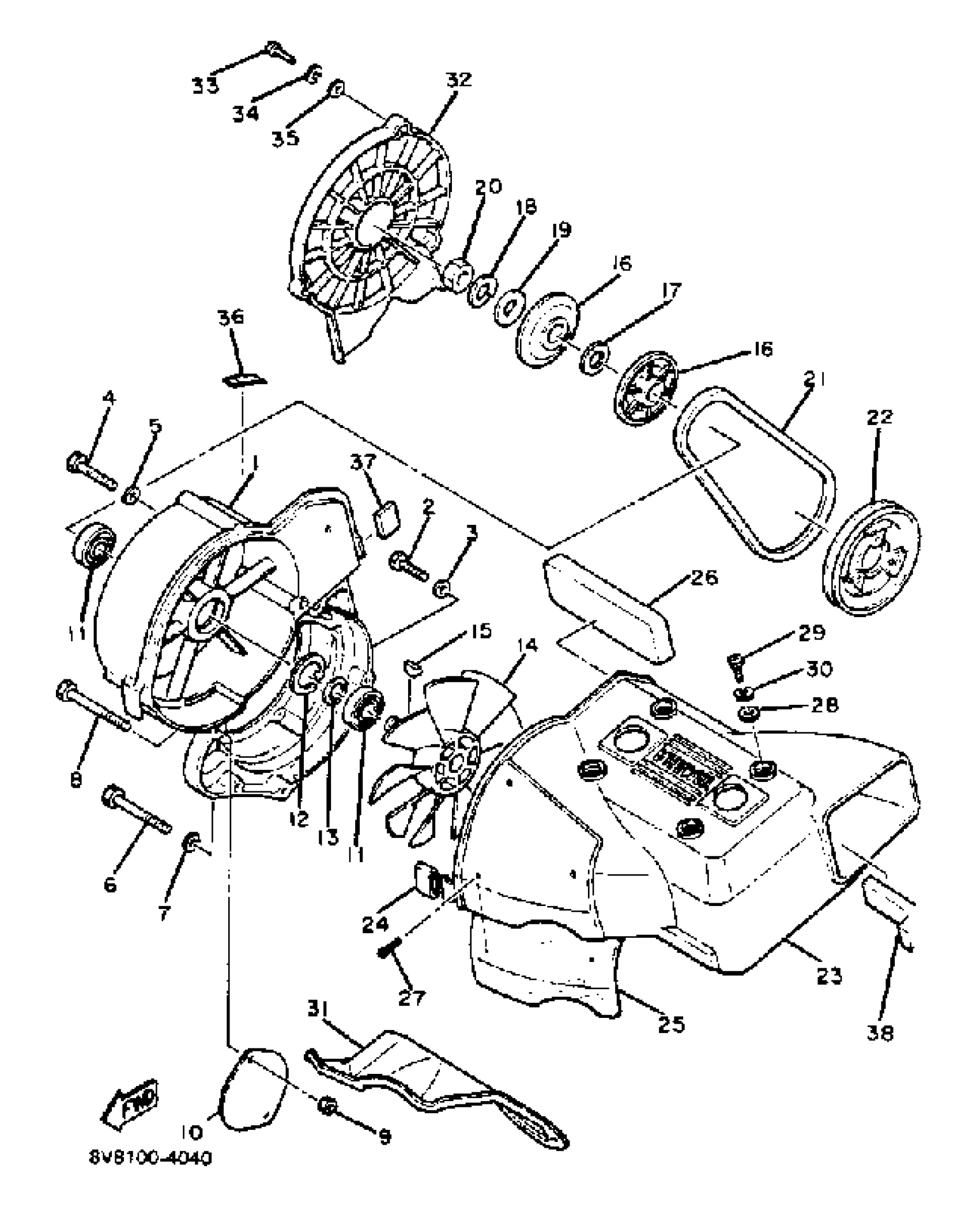

Yamaha SS440H (SS440) 1984 AIR SHROUD - FAN Diagram
#
1
CASE, FAN
8K4-12621-00-00
Unavailable
2
BOLT
97013-08035-00
$5.60
3
.. WASHER, PLATE
92990-08600-00
Unavailable
4
BOLT, HEXAGON
97013-08050-00
Unavailable
5
.. WASHER, PLATE
92990-08600-00
Unavailable
6
BOLT (6K8)
97013-08075-00
$7.49
7
.. WASHER, PLATE
92990-08600-00
Unavailable
8
BOLT (6K8)
97013-08075-00
$7.49
9
NUT, FLANGE
95704-08500-00
$8.49
10
PLATE
8K4-12633-00-00
Unavailable
11
BEARING
93306-20348-00
$40.99
12
CIR-CLIP (70R)
93420-40064-00
Unavailable
13
WASHER, PLATE (8H8)
90201-17713-00
$7.49
14
FAN
8K4-12611-01-00
Unavailable
15
KEY, WOOD RUFF (324)
90280-05014-00
$9.49
16
PULLEY 2
8H8-12619-01-00
Unavailable
17
WASHER, CLAW (8H8)
90214-17017-00
Unavailable
17
WASHER, CLAW (1.0T)
90214-17018-00
Unavailable
18
WASHER(JN5)
92907-16100-00
Unavailable
19
WASHER, PLATE (8H8)
90201-17713-00
$7.49
20
NUT
90170-16425-00
Unavailable
21
BELT
8K4-12612-00-00
Unavailable
22
PULLEY 1
8H8-12618-01-00
Unavailable
23
AIR SHROUD, CYLINDER 1
8K4-12651-00-00
Unavailable
24
DAMPER, AIR SHROUD CYLINDER
8H8-12658-00-00
Unavailable
25
DAMPER, SHROUD 2
8H8-12659-00-00
Unavailable
26
DAMPER, AIR SHRD 4
8K4-12669-00-00
Unavailable
27
PIN, COTTER
91401-16030-00
Unavailable
28
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
29
SCREW, BINDING
98907-06016-00
Unavailable
30
WASHER, SPRING
92907-06100-00
Unavailable
31
AIR SHROUD, CYLINDER 2
8H8-12652-00-00
Unavailable
32
COVER, FAN CASE
8K4-12616-00-00
Unavailable
33
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
34
WASHER, SPRING
92907-06100-00
Unavailable
35
WASHER, PLATE (4L0)
90201-062A8-00
Unavailable
36
LABEL, CAUTION
8K4-12628-00-00
Unavailable
37
DAMPER, SHROUD 6
(8V8-12679-00-00)
Unavailable
38
DAMPER, AIR SHROUD 5
8V8-12678-00-00
Unavailable
