Description

Price

1

SEC FXD SHV

8K4-17660-00-00

Unavailable

2

SEC SLIDING SHEAVE

8V8-17670-10-00

Unavailable

3

SHOE RAMP

8X6-17688-00-00

$8.49

4

SEAT, SEC SPRING

8K4-17684-00-00

Unavailable

5

WASHER, PLATE

90201-34684-00

Unavailable

6

CIRCLIP(86F)

93440-34170-00

$8.49

7

SHAFT, SECONDARY

82M-17681-00-00

Unavailable

8

WASHER, PLATE (8R6)

90201-252F1-00

$8.49

8

WASHER, PLATE (888)

90201-25526-00

$9.49

8

WASHER, PLATE (888)

90201-25527-00

$10.49

9

BOLT, WASHER BASED

90105-14175-00

Unavailable

10

WASHER, PLATE

90201-140A6-00

Unavailable

11

BEARING

888-17678-00-00

Unavailable

12

HOUSING, BEARING

8K4-47631-01-00

Unavailable

13

BOLT, HEXAGON

97017-08016-00

$8.49

14

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

15

WASHER, PLATE (T=0.5)

90201-222F0-00

Unavailable

15

WASHER, PLATE (8L8)

90201-225A4-00

Unavailable

16

COLLAR

90387-147A8-00

Unavailable

17

SPRING, TORSION

90508-45286-00

Unavailable

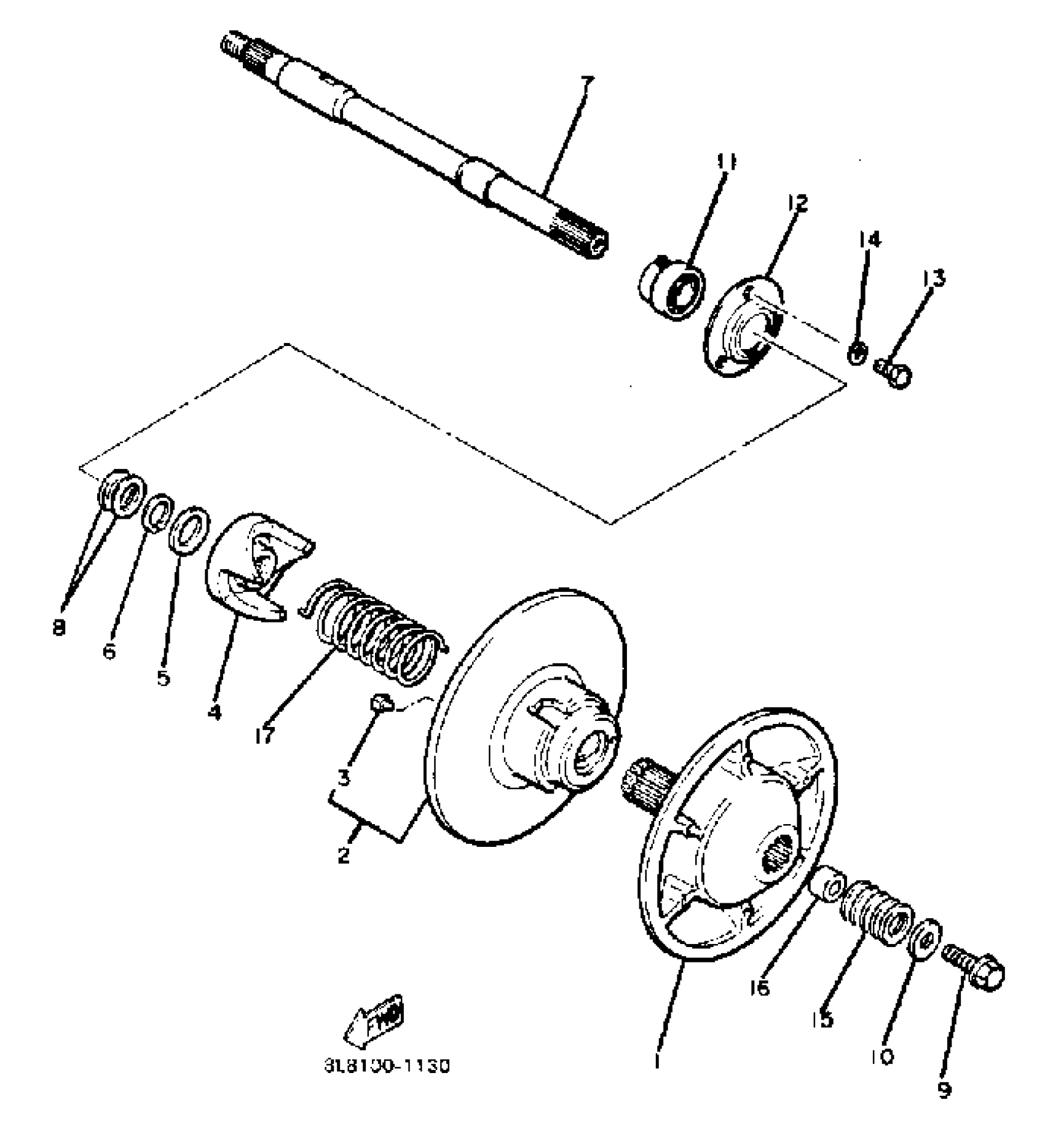

Yamaha SS440F 1982 SECONDARY SHEAVE Diagram

SEC FXD SHV

SEC SLIDING SHEAVE

SHOE RAMP

SEAT, SEC SPRING

WASHER, PLATE

CIRCLIP(86F)

SHAFT, SECONDARY

WASHER, PLATE (8R6)

WASHER, PLATE (888)

WASHER, PLATE (888)

BOLT, WASHER BASED

WASHER, PLATE

BEARING

HOUSING, BEARING

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

WASHER, PLATE (T=0.5)

WASHER, PLATE (8L8)

COLLAR

SPRING, TORSION
