Description

Price

1

REFLECTOR, REAR 1

8J7-85131-00-00

Unavailable

2

NUT, HEXAGON

95380-06600-00

Unavailable

3

WASHER, SPRING

92995-06100-00

Unavailable

4

STOP SWITCH ASSY

8H8-82550-01-00

$90.99

5

NUT

8H8-82557-00-00

$2.97

6

TOOL

UNA-VAILA-BL-EI

Unavailable

7

LEVER HOLDER ASSY (LEFT)

88R-W8291-00-00

$117.99

8

LEVER 1

8H8-83912-00-00

$20.99

9

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

9

SCREW, PAN HEAD

98580-05020-00

Unavailable

10

SCREW, PAN

98507-05040-00

$8.49

11

NUT, NYLON

95707-05300-00

$4.24

12

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

82A-83930-00-00

Unavailable

13

COLLAR, LEVER

802-83913-00-00

Unavailable

14

. SCREW, TAPPING

97780-30312-00

Unavailable

15

. WASHER, PLAIN

92990-05200-00

Unavailable

16

BEAM SWITCH ASSY

8H8-83950-01-00

Unavailable

17

STOP SWITCH ASSY

88R-82530-00-00

Unavailable

18

SWITCH, HANDLE 1

8L8-83976-00-00

Unavailable

19

CAP 1

8E3-83956-01-00

Unavailable

20

OIL LEVEL GAUGE ASSY

4HV-85720-03-00

Unavailable

21

BAND, SWITCH CORD

437-83936-01-00

Unavailable

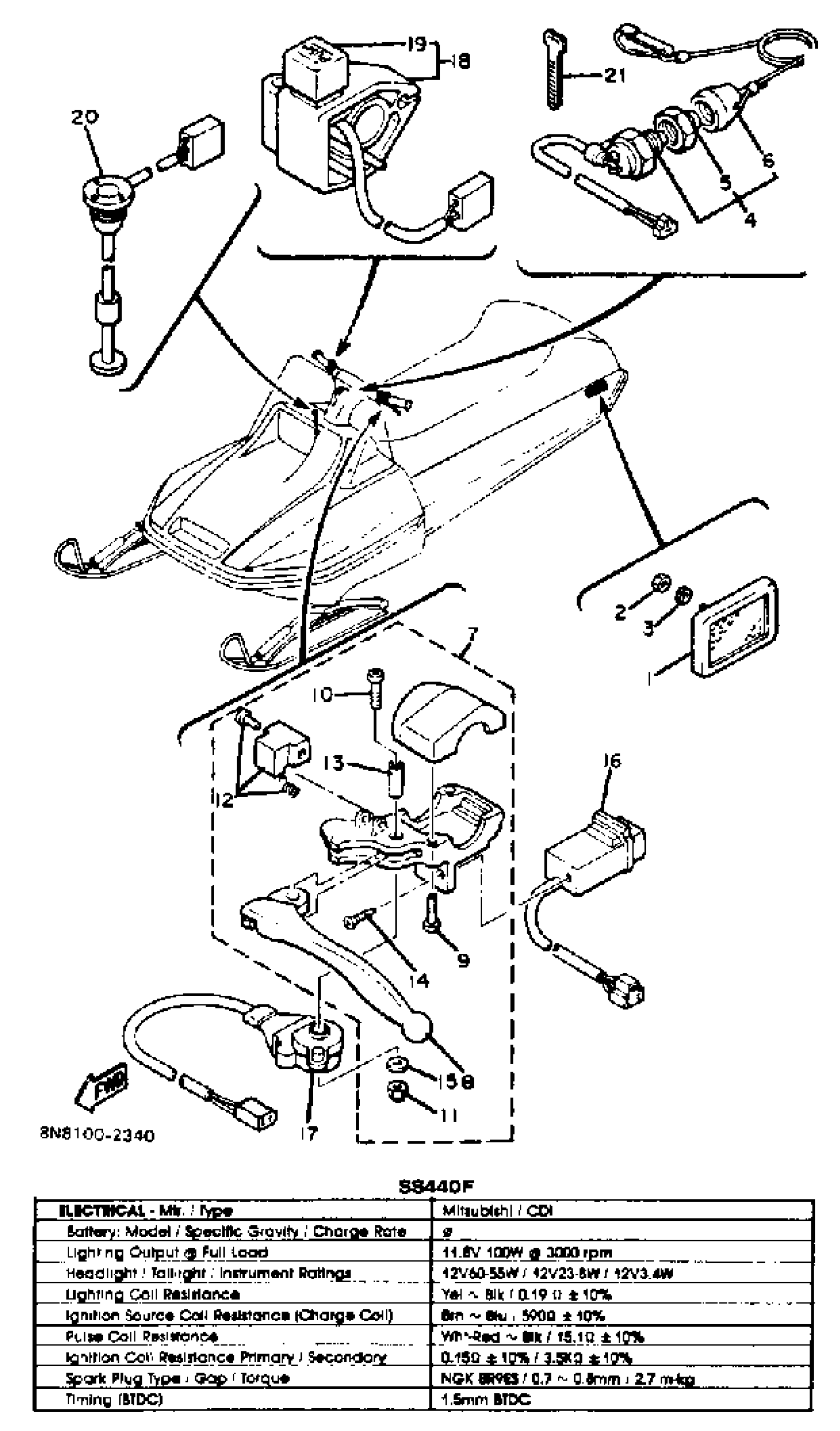

Yamaha SS440F 1982 ELECTRICAL 2 Diagram

REFLECTOR, REAR 1

NUT, HEXAGON

WASHER, SPRING

STOP SWITCH ASSY

NUT

TOOL

LEVER HOLDER ASSY (LEFT)

LEVER 1

SCREW, PAN HEAD(41N)

SCREW, PAN HEAD

SCREW, PAN

NUT, NYLON

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

COLLAR, LEVER

. SCREW, TAPPING

. WASHER, PLAIN

BEAM SWITCH ASSY

STOP SWITCH ASSY

SWITCH, HANDLE 1

CAP 1

OIL LEVEL GAUGE ASSY

BAND, SWITCH CORD
