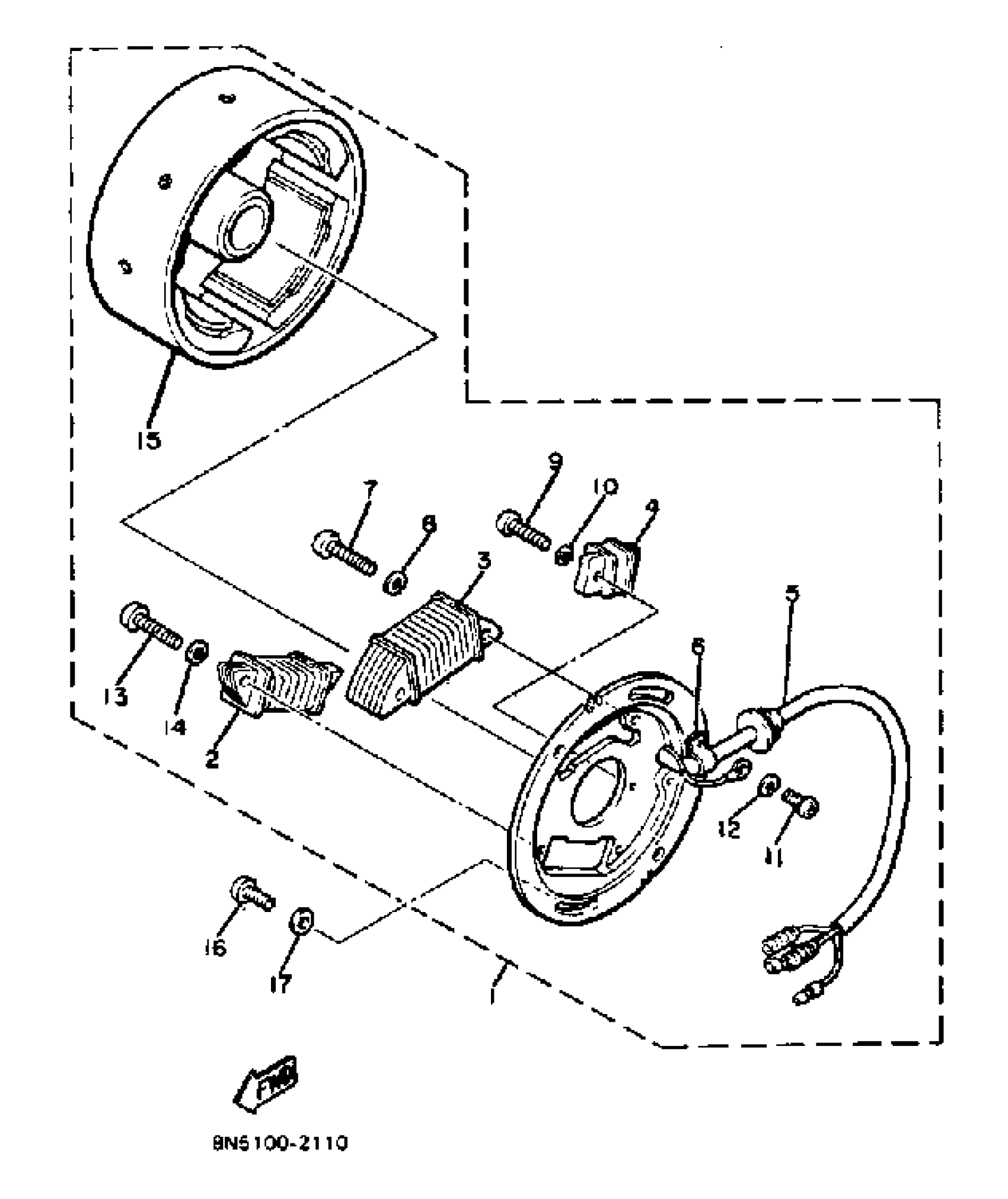

Yamaha SS440F 1982 C - D - I - MAGNETO Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

8N8-85500-20-00

Unavailable

2

. COIL SOURCE 1

8N4-85511-20-00

Unavailable

3

. COIL, LIGHTING 1

8G8-85513-20-00

Unavailable

4

. COIL, PULSER (8N5-85580-20)

82M-85580-20-00

Unavailable

5

LEAD WIRE ASSEMBLY

(8N5-85515-20-00)

Unavailable

6

CLAMP, LEAD

104-81328-20-00

$6.99

7

SCREW, PAN

98507-05035-00

$8.49

8

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

9

SCREW, PAN HEAD

98507-04018-00

$2.19

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

. ROTOR ASSEMBLY (8K1-85550-20)

8J9-85550-20-00

Unavailable

16

SCREW, BIND(J39)

98980-06014-00

Unavailable

17

WASHER, PLATE 6261117600

90201-06043-00

Unavailable
