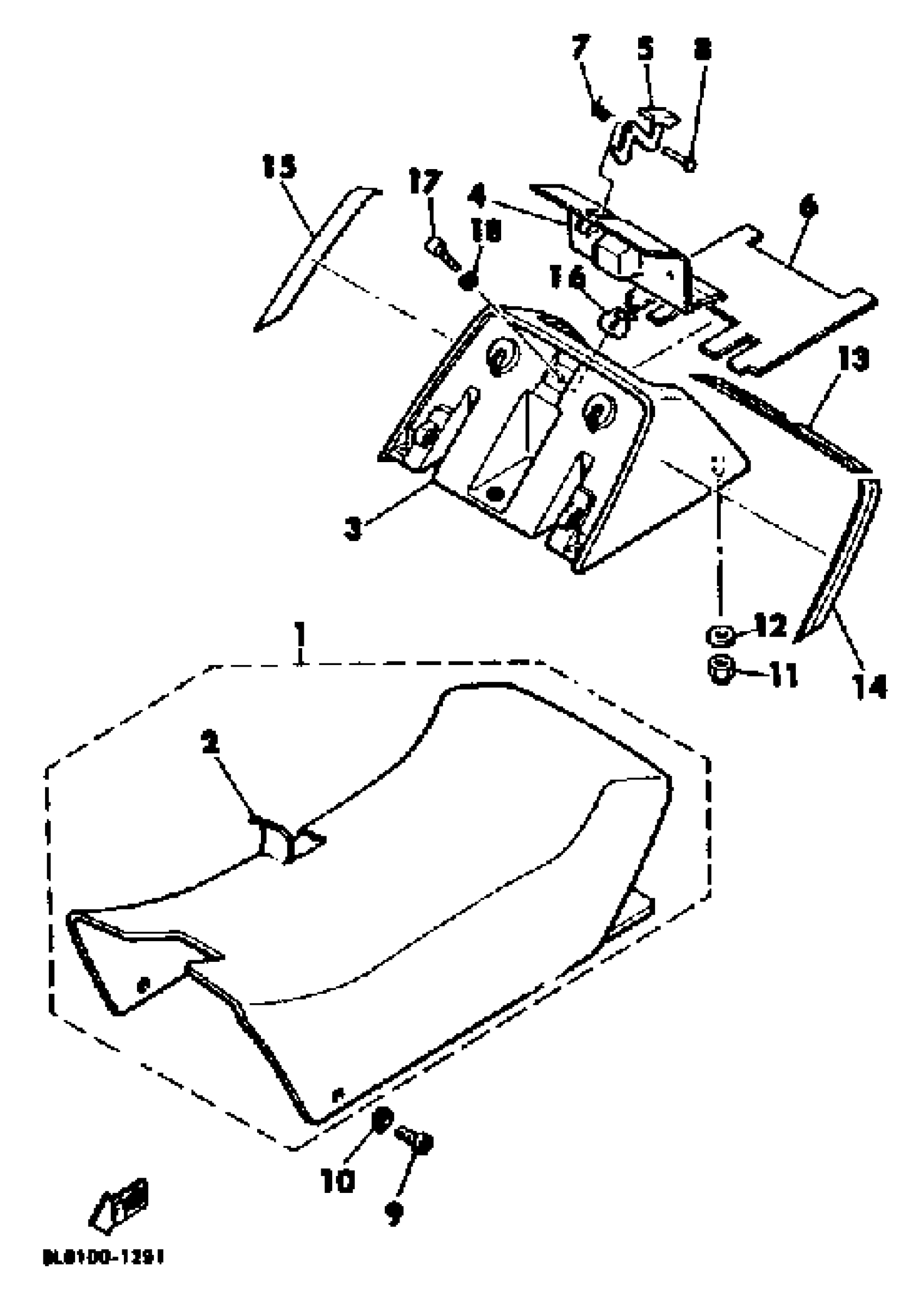

Yamaha SS440E 1981 SEAT Diagram

#

Description

Price

1

SINGLE SEAT ASSEMBLY

8L9-24710-00-00

Unavailable

2

. COVER, SINGLE SEAT

8L8-24711-00-00

Unavailable

3

. SEAT BOX ASSEMBLY

8L8-W2475-00-00

Unavailable

4

. LID 1

8L8-2473T-00-00

Unavailable

5

LEVER, SEAT

(8L8-24776-00-00)

Unavailable

6

. COVER

8K4-24796-00-00

Unavailable

7

SPRING,TORSION

90508-104A1-00

Unavailable

8

PIN

90243-04004-00

Unavailable

9

SCREW, BINDING

90154-06003-00

Unavailable

10

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

11

NUT, NYLON

95717-08300-00

$2.70

12

WASHER, PLATE (4W3)

90201-086A3-00

$8.49

13

STRIPE 5

(8L8-77285-00-00)

Unavailable

14

STRIPE 6

8L8-77286-00-00

Unavailable

15

STRIPE 7

8L8-77287-00-00

Unavailable

16

HOOK 1

8H8-77386-00-00

Unavailable

17

BOLT, HEXAGON

97313-05014-00

Unavailable

18

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable
