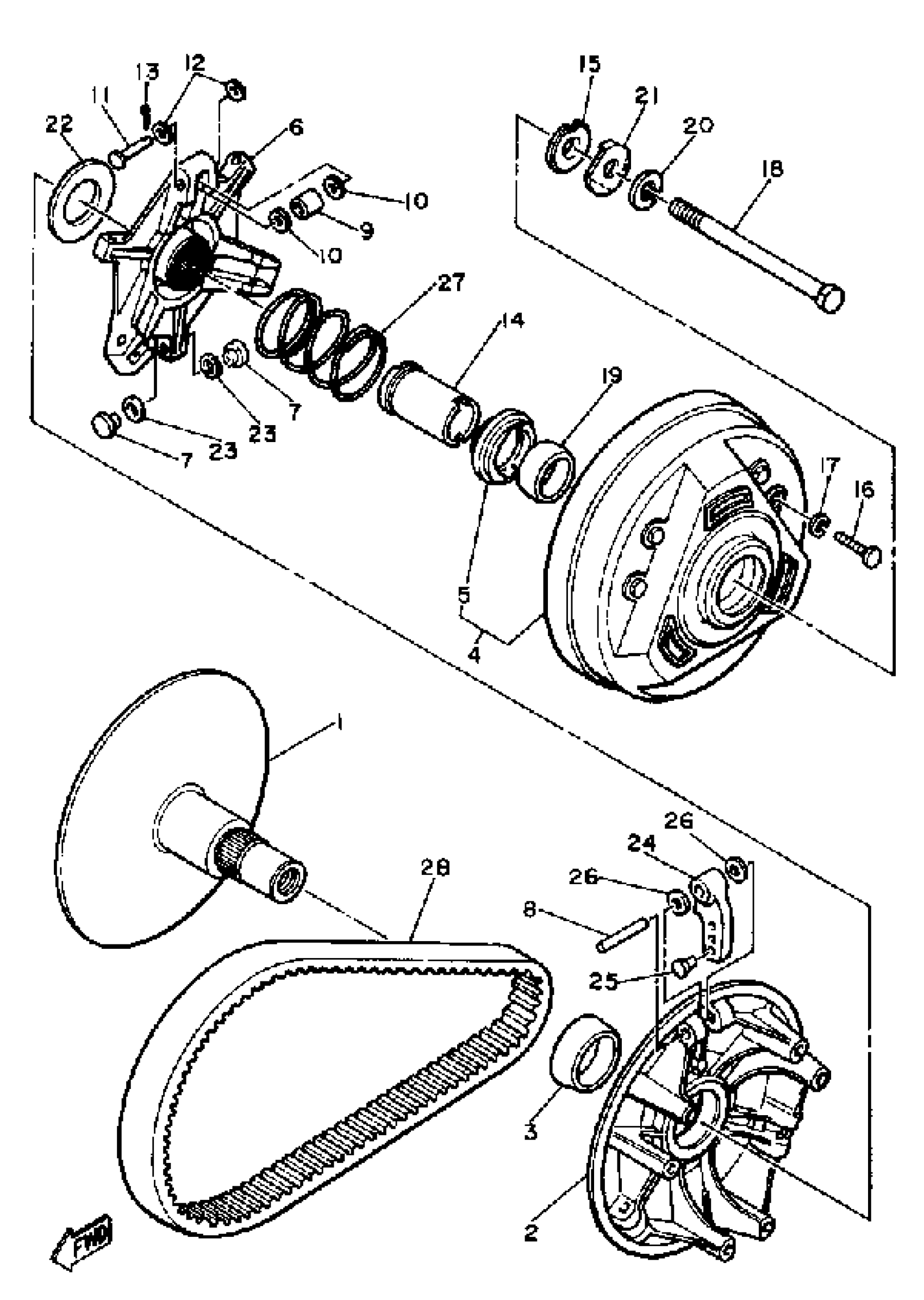

Yamaha SS440E 1981 PRIMARY SHEAVE Diagram

#

Description
Price

1

PRI FIXED SHEAVE

8J0-17610-01-00

Unavailable

2

SHEAVE, PRI SLIDING

8E7-17621-01-00

Unavailable

3

BUSH, SPEC''L SHAPE

90389-41018-00

Unavailable

4

PRI. SHEAVE CAP

8E7-W1762-00-00

Unavailable

5

SEAT, SPRING

8E7-17644-02-00

Unavailable

6

SPIDER

8J0-17627-00-00

Unavailable

7

SLIDER

8F2-17653-00-00

$13.49

8

PIN, DOWEL (8V8)

93607-44190-00

$16.99

9

COLLAR

8K2-17645-00-00

Unavailable

10

WASHER (8J0)

90202-06113-00

$4.72

11

PIN, W/HOLE (8G6)

90240-06062-00

$10.49

12

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

13

PIN, COTTER

91490-25020-00

$3.19

14

COLLAR

90387-28721-00

Unavailable

15

SPACER 1

8J0-17654-00-00

Unavailable

16

BOLT(JF7)

97080-06030-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

BOLT

90101-13406-00

Unavailable

19

. BUSH, SPEC''L SHAPE

90389-34019-00

Unavailable

20

WASHER, SPRING

90204-13010-00

Unavailable

21

WASHER, LOCK

90215-13047-00

Unavailable

22

WASHER, PLATE

90201-32710-00

Unavailable

23

WASHER, PLATE (8K2)

90201-090A4-00

Unavailable

24

WEIGHT, CLUTCH

8L8-17632-00-00

Unavailable

25

RIVET. COUNTERSUNK HEAD(8AK)

90261-06015-00

Unavailable

26

WASHER, PLATE(8E7)

90201-07641-00

Unavailable

27

SPRING, COMPRESSION

90501-55241-00

Unavailable

28

V-BELT

89X-17641-01-00

Unavailable

28

CLUTCH SUB ASSEMBLY

8K2-17602-09-00

Unavailable

28

CLTCH TUNE UP KIT

8L9-00000-50-00

Unavailable

28

CLUTCH WEIGHT KIT

8L9-17000-10-00

Unavailable
