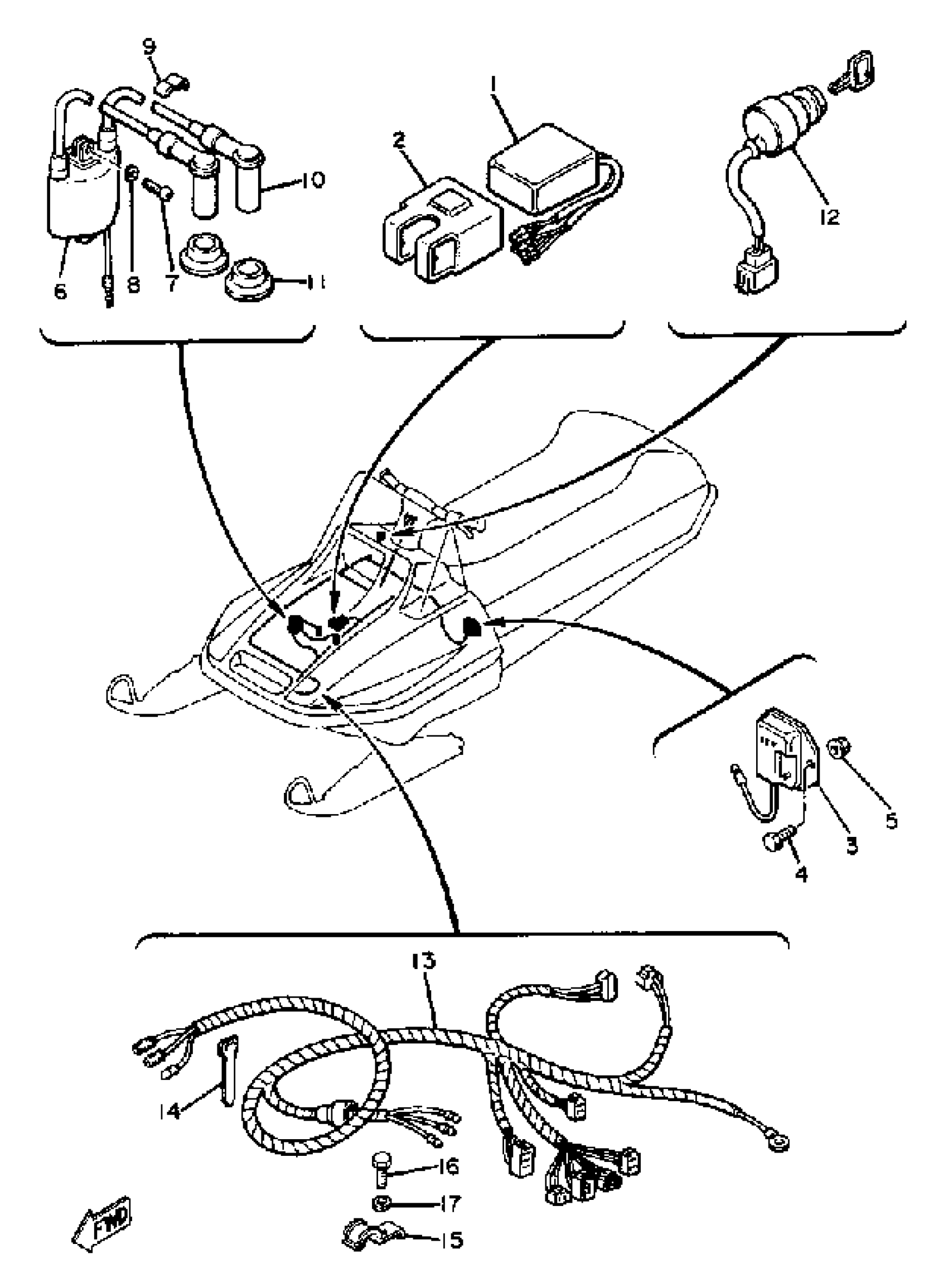

Yamaha SS440E 1981 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI UNIT ASSEMBLY

8H4-85540-20-00

Unavailable

3

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$71.99

4

BOLT(8CP)

97017-06014-00

$8.49

5

NUT, NYLON

95707-06300-00

$3.50

6

IGNITION COIL ASSEMBLY

8K4-82310-11-00

Unavailable

7

SCREW PAN HEAD

98580-06020-00

$8.49

8

WASHER, SPRING

92995-06100-00

Unavailable

9

CLAMP, CORD

861-82361-00-00

Unavailable

10

PLUG CAP ASSY

85G-82370-20-00

$34.99

11

SEAL

8G5-82372-00-00

$5.60

12

MAIN SWITCH ASSY

8K4-82510-20-00

Unavailable

13

WIRE HARNESS ASSEMBLY

8L8-82590-20-00

Unavailable

14

BAND, SWITCH CORD

437-83936-01-00

$7.99

15

CLAMP

90462-06079-00

Unavailable

16

BOLT (661)

97013-06012-00

$5.60

17

WASHER, SPRING

92995-06100-00

Unavailable
