CRANKSHAFT - PISTON

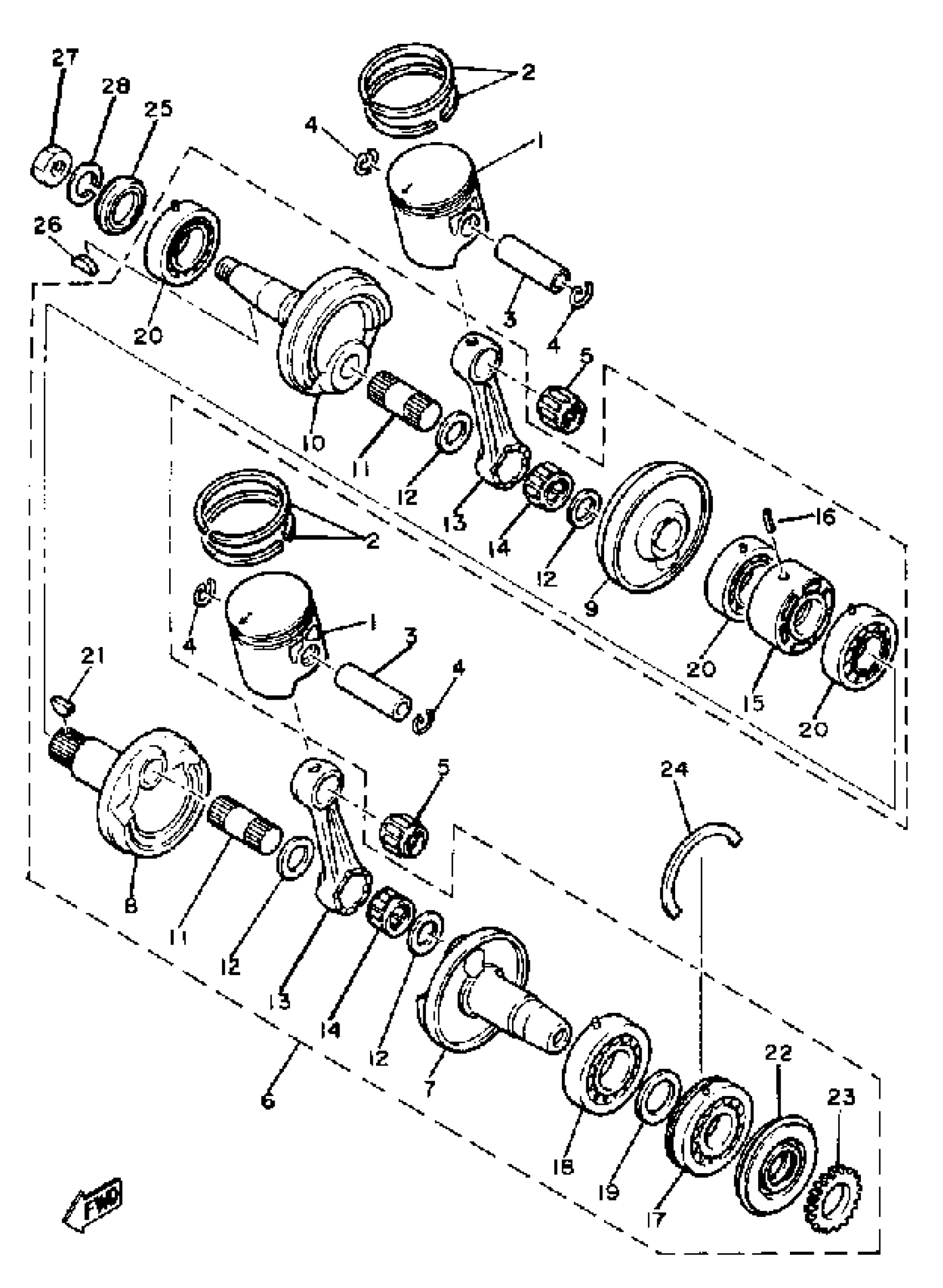

Yamaha SS440E 1981 CRANKSHAFT - PISTON Diagram
#
1
PISTON STD
8K4-11631-01-96
Unavailable
1
PISTON 1 O/S 0.25
8K4-11635-01-00
Unavailable
1
PISTON 2 O/S 0.50
8K4-11636-01-00
Unavailable
1
PISTON 3 O/S 0.75
8K4-11637-01-00
Unavailable
1
PISTON 4 O/S 1.00
(8K4-11638-01-00)
Unavailable
2
PISTON RING SET (STD)
8K4-11601-00-00
$58.99
2
PISTON RINGSET 1ST (1ST O/S)
8K4-11601-10-00
Unavailable
2
PISTON RINGSET 2ND (2ND O/S)
8K4-11601-20-00
Unavailable
2
PISTON RINGSET 3RD
(8K4-11601-30-00)
Unavailable
2
PISTON RINGSET 4TH
(8K4-11601-40-00)
Unavailable
3
PIN, PISTON
168-11633-00-00
Unavailable
4
CLIP 6041163400
93450-20026-00
$8.49
5
BRG,CYL-CAL ROLLER 15.6G KY
93310-218A6-00
$38.99
6
CRANKSHAFT ASSEMBLY
8K4-11400-01-00
Unavailable
7
CRANK 1
(8K4-11412-00-00)
Unavailable
8
CRANK 2
(8K4-11422-01-00)
Unavailable
9
CRANK 3
(8K4-11432-01-00)
Unavailable
10
CRANK 4
(8K4-11442-00-00)
Unavailable
11
. PIN, CRANK 1
8H8-11681-00-00
Unavailable
12
WASHER (152-11685-00)
90209-24073-00
Unavailable
13
. ROD, CONNECTING (838-11651-00)
8A7-11651-00-00
Unavailable
14
BEARING
93310-424E8-00
Unavailable
15
SEAL, LABYRINTH 1
8H8-11515-00-00
Unavailable
16
PIN, SPRING (663)
91690-30010-00
Unavailable
17
BEARING (8R6)
93306-30625-00
Unavailable
18
BEARING (8R6)
93306-30625-00
Unavailable
19
WASHER (8H0)
90201-34683-00
Unavailable
20
BEARING (8G8)
93306-20617-00
Unavailable
21
KEY, WOOD RUFF (324)
90280-05014-00
Unavailable
22
OIL SEAL (878).
93103-32095-00
Unavailable
23
GEAR, PUMP DRIVE
8K2-13178-00-00
Unavailable
24
CIRCLIP (8H8)
93440-78069-00
Unavailable
25
OIL SEAL(83R)
93103-32156-00
Unavailable
26
KEY, WOOD RUFF (324)
90280-05014-00
Unavailable
27
NUT
90170-16425-00
Unavailable
28
WASHER(JN5)
92907-16100-00
Unavailable
