STEERING

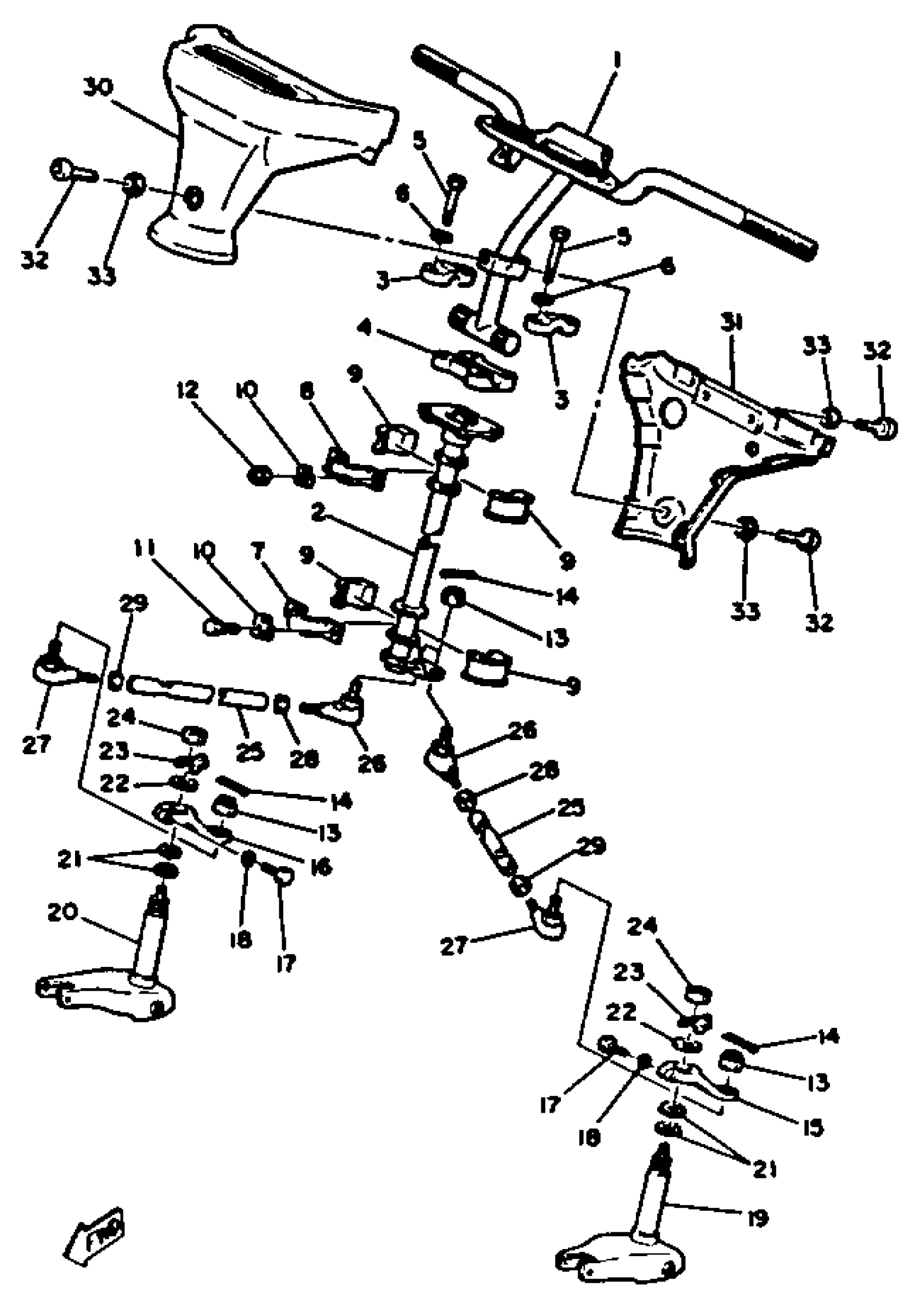

Yamaha SS440D 1980 STEERING Diagram
#
1
COLUMN, STEERING
(8K4-23811-01-00)
Unavailable
2
COLUMN, steering 2 (8K4-23813-00)
8K4-23813-01-00
Unavailable
3
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
4
HOLDER HANDLE UPR
164-23441-01-38
Unavailable
5
BOLT, HEXAGON
97013-08055-00
$2.55
6
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
7
BRACKET, STEERING LOWER
84M-23868-00-00
Unavailable
8
HOLDER, BEARING
84M-23872-00-00
Unavailable
9
BEARING, STEERING
8F3-23812-00-00
Unavailable
10
WASHER, LOCK
90215-08143-00
Unavailable
11
BOLT, HEXAGON
97013-08016-00
$1.01
12
NUT, NYLON
95717-08300-00
$2.70
13
NUT, NYLON
95707-10300-00
$8.49
14
PIN, COTTER
91490-20025-00
$1.99
15
ARM, OUTSIDE 1
8K4-23851-00-00
Unavailable
16
ARM, OUTSIDE 2
8K4-23852-00-00
Unavailable
17
BOLT, HEXAGON
97017-08025-00
Unavailable
18
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
19
COLUMN, SKI 1
(8K4-23853-01-00)
Unavailable
20
COLUMN, SKI 2
(8K4-23854-01-00)
Unavailable
21
WASHER, WAVE (878)
90206-20037-00
Unavailable
22
WASHER, PLATE (3J6)
90201-100A1-00
Unavailable
23
WASHER, LOCK
90215-10096-00
Unavailable
24
NUT(3BM)
95314-10600-00
Unavailable
25
ROD, STEERING RELAY
8K4-23821-00-00
Unavailable
26
JOINT, UNIVERSAL 1
86X-23841-00-00
Unavailable
27
JOINT, UNIVERSAL 2
86X-23845-00-00
Unavailable
28
NUT (682)
95380-10700-00
Unavailable
29
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
30
PAD, steering
[8K-42381-50-10
Unavailable
31
PAD, steering
[8K-42381-70-10
Unavailable
32
SCREW, BINDING
98907-05016-00
Unavailable
33
COLLAR
90387-06794-00
Unavailable
