SHROUD - WINDSHIELD

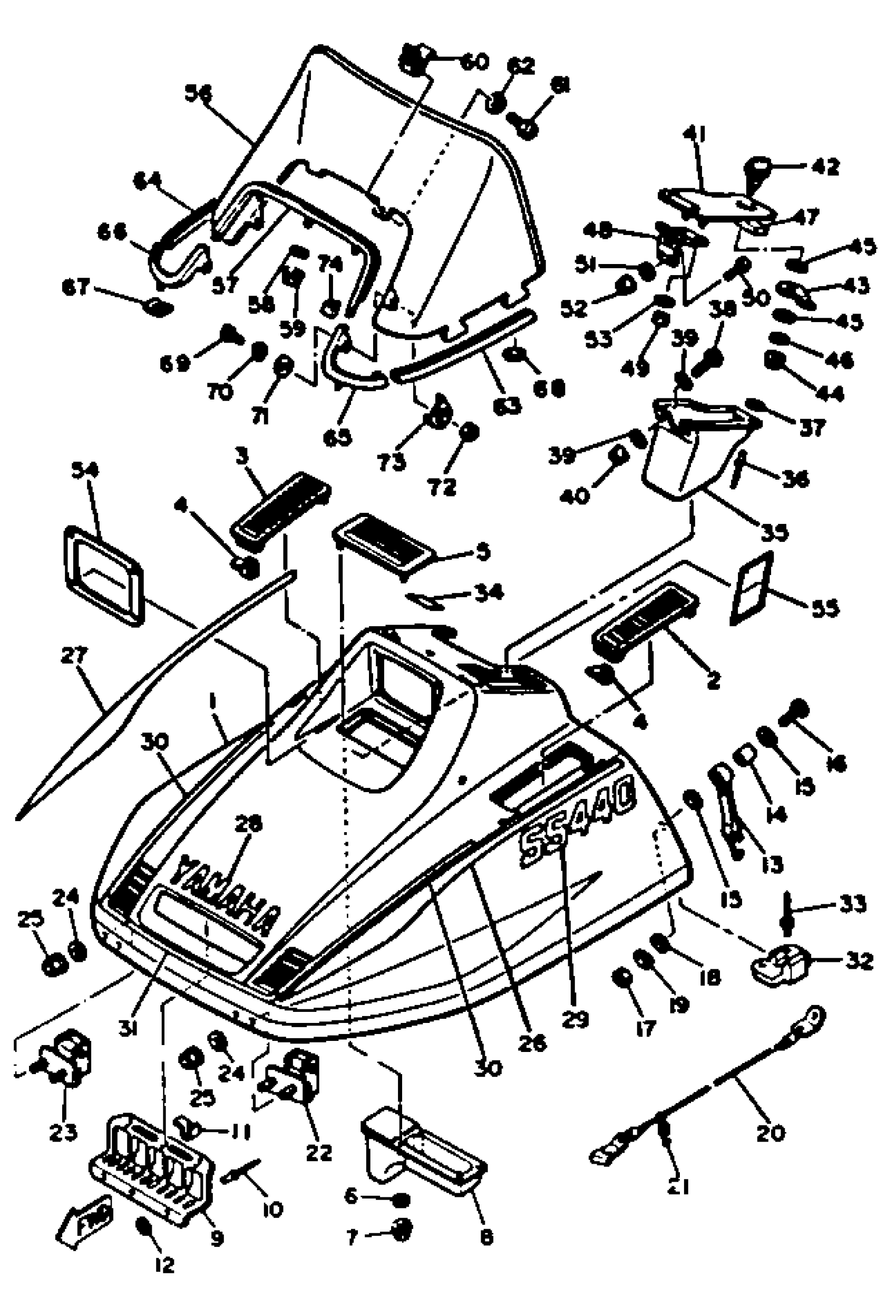

Yamaha SS440D 1980 SHROUD - WINDSHIELD Diagram
#
1
SHROUD ASS''Y (8K4-W7711-00)
8K4-W7711-02-00
Unavailable
2
LOUVER 3
8K4-77133-00-00
Unavailable
3
LOUVER 4
8K4-77134-00-00
Unavailable
4
CLIP
90468-05094-00
Unavailable
5
LOUVER 5
8K4-77109-01-00
Unavailable
6
WASHER, PLATE 8067717800
90201-05029-00
$8.49
7
NUT, NYLON
95707-05300-00
$4.24
8
INSULATOR
8K4-7712E-00-00
Unavailable
9
DUCT
8K4-77194-00-00
Unavailable
10
RIVET, BLIND (8H4)
90267-48053-00
$3.61
11
CLIP(80V)
90468-05176-00
Unavailable
12
WASHER, plate
[90-20104-75-60
Unavailable
13
LATCH ASSEMBLY
8G5-77170-00-00
Unavailable
14
SPACER
90560-07007-00
$9.49
15
WASHER, PLATE(36Y)
90201-063J2-00
$5.60
16
SCREW, BINDING
98907-06030-00
Unavailable
17
NUT, HEXAGON
95380-06600-00
Unavailable
18
WASHER, PLAIN (646)
92990-06600-00
Unavailable
19
WASHER, SPRING
92995-06100-00
Unavailable
20
STOPPER, SHROUD
8K4-77118-00-00
Unavailable
21
CLAMP,ROD
838-77159-00-00
Unavailable
22
HINGE ASSEMBLY
(8K4-77140-00-00)
Unavailable
23
HINGE ASS''Y 2
8K4-7714A-00-00
Unavailable
24
WASHER PLATE 137241870000
90201-06072-00
Unavailable
25
NUT, NYLON
95707-06300-00
Unavailable
26
ORNAMENT 1
(8K4-77163-00-00)
Unavailable
27
ORNAMENT 2
8K4-77164-00-00
Unavailable
28
EMBLEM 7
8K4-77357-00-00
Unavailable
29
EMBLEM 8
(8K4-77358-00-00)
Unavailable
30
STRIPE 1
[8K-47728-10-00
Unavailable
31
STRIPE 2
[8K-47728-20-00
Unavailable
32
STOPPER
8K4-77188-00-00
Unavailable
33
RIVET, BLIND (8R6)
90267-48086-00
Unavailable
34
LABEL, SAFETY
288-21659-00-00
Unavailable
35
LUGGAGE BOX
8K4-77391-00-00
Unavailable
36
RIVET, BLIND
90267-48032-00
Unavailable
37
WASHER, PLATE
90201-04027-00
Unavailable
38
ORNAMENT SET
[8K-47000-00-00
Unavailable
38
SCREW, PAN
98517-06020-00
Unavailable
39
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
40
NUT, NYLON
95707-06300-00
Unavailable
41
COVER, luggage box
8K4-77392-00-00
Unavailable
42
KNOB
8K4-77324-00-00
Unavailable
43
LEVER, ARM FITTING
8K4-77328-00-00
Unavailable
44
NUT, NYLON
95707-05300-00
$4.24
45
WASHER, PLAIN(735)
90201-10119-00
Unavailable
46
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
47
DAMPER 2
8K4-77374-00-00
Unavailable
48
HINGE ASSEMBLY
8K4-77470-00-00
Unavailable
49
NUT, CAP
95307-05800-00
Unavailable
50
SCREW, PAN HEAD
90157-05M19-00
Unavailable
51
WASHER, PLATE 8067717800
90201-05029-00
$8.49
52
NUT, NYLON
95707-05300-00
$4.24
53
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
54
TRIM 1
8K4-77165-00-00
Unavailable
55
INDICATOR 3
[8K-47774-30-00
Unavailable
56
WINDSHLD, SMB TALL
ABA-8K496-00-00
Unavailable
57
TRIM, LOWER
8L0-77214-00-00
Unavailable
58
WASHER, PLAIN (646)
92990-05600-00
Unavailable
59
NUT, NYLON
95707-05300-00
$4.24
60
BRACKET, WNDSHLD R
8K4-77222-00-00
Unavailable
61
BOLT(3JP)
97017-06010-00
Unavailable
62
WASHER, SPRING
92995-06100-00
Unavailable
63
TRIM 3
8L0-77215-00-00
Unavailable
64
TRIM 4
8L0-77216-00-00
Unavailable
65
TRIM 5
8L0-77225-00-00
Unavailable
66
TRIM 6
8L0-77226-00-00
Unavailable
67
NUT, SPRING(8AJ)
90183-05068-00
Unavailable
68
FASTNER
82H-77223-00-00
Unavailable
69
BOLT, HEXAGON
97313-05016-00
Unavailable
70
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
71
WASHER PLATE 829771780000
90201-05033-00
Unavailable
72
NUT, CAP
95307-05800-00
Unavailable
73
WASHER, special
8K4-77116-00-00
Unavailable
74
ORNAMENT SET
[8K-47000-00-00
Unavailable
74
CLAMP 2
8L0-77136-00-00
Unavailable
74
STRIPE 3
(8K4-77283-00-00)
Unavailable
