Description

Price

1

CDI UNIT ASSEMBLY

8K4-85540-10-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$71.99

4

BOLT(8CP)

97017-06014-00

$8.49

5

NUT, NYLON

95707-06300-00

$3.50

6

IGNITION COIL ASSEMBLY

8K4-82310-11-00

Unavailable

7

SCREW PAN HEAD

98580-06020-00

$8.49

8

WASHER, SPRING

92995-06100-00

Unavailable

9

CLAMP, CORD

861-82361-00-00

Unavailable

10

PLUG CAP ASSY

85G-82370-20-00

$34.99

11

SEAL

8G5-82372-00-00

$5.60

12

MAIN SWITCH ASSY

8K4-82510-20-00

Unavailable

13

WIRE HARNESS ASS''Y

8K4-82590-20-00

Unavailable

14

CLAMP

90465-08028-00

Unavailable

15

BAND, SWITCH CORD

437-83936-01-00

$7.99

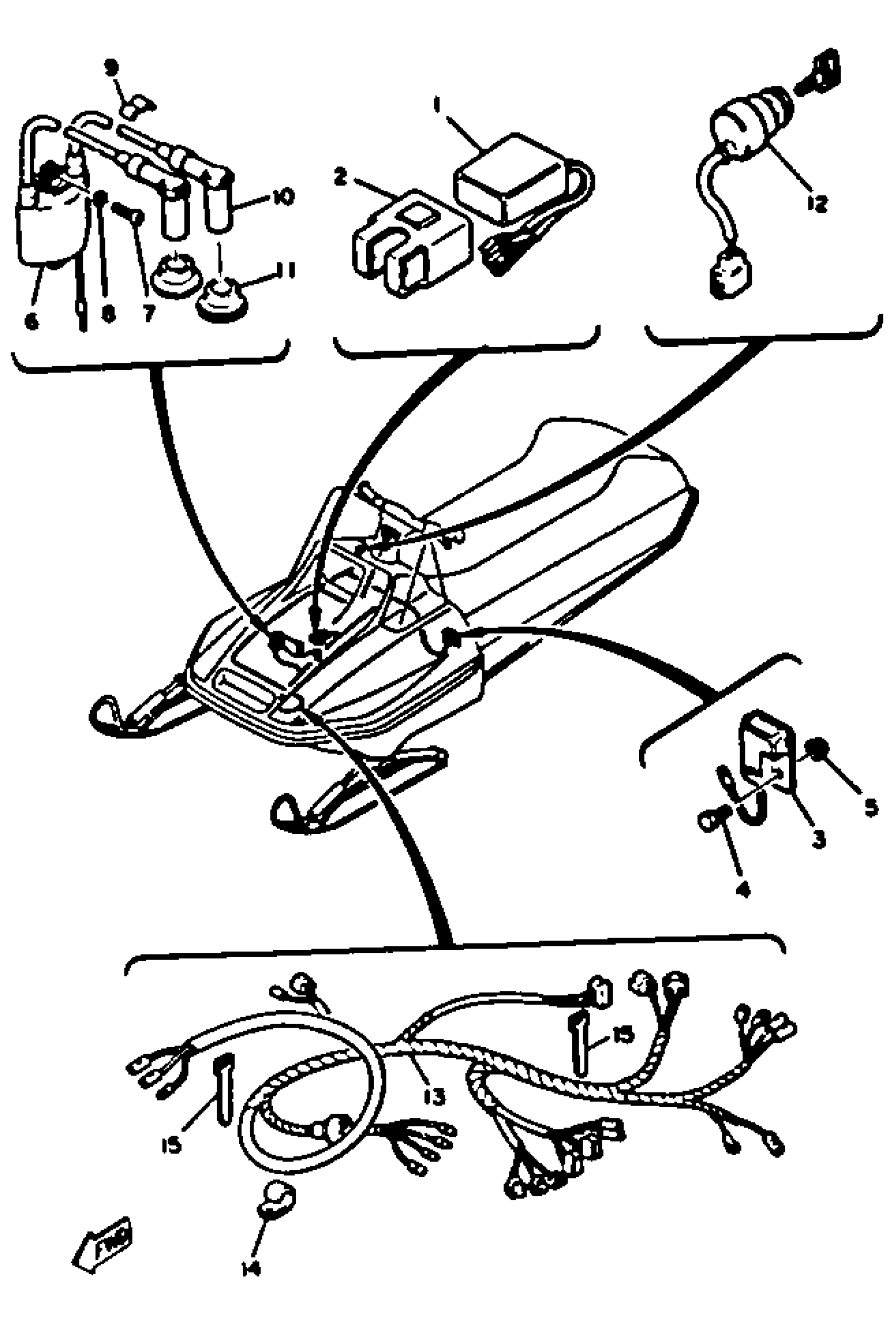

Yamaha SS440D 1980 ELECTRICAL 1 Diagram

CDI UNIT ASSEMBLY

BAND

VOLTAGE REGULATOR ASSY

BOLT(8CP)

NUT, NYLON

IGNITION COIL ASSEMBLY

SCREW PAN HEAD

WASHER, SPRING

CLAMP, CORD

PLUG CAP ASSY

SEAL

MAIN SWITCH ASSY

WIRE HARNESS ASS''Y

CLAMP

BAND, SWITCH CORD
