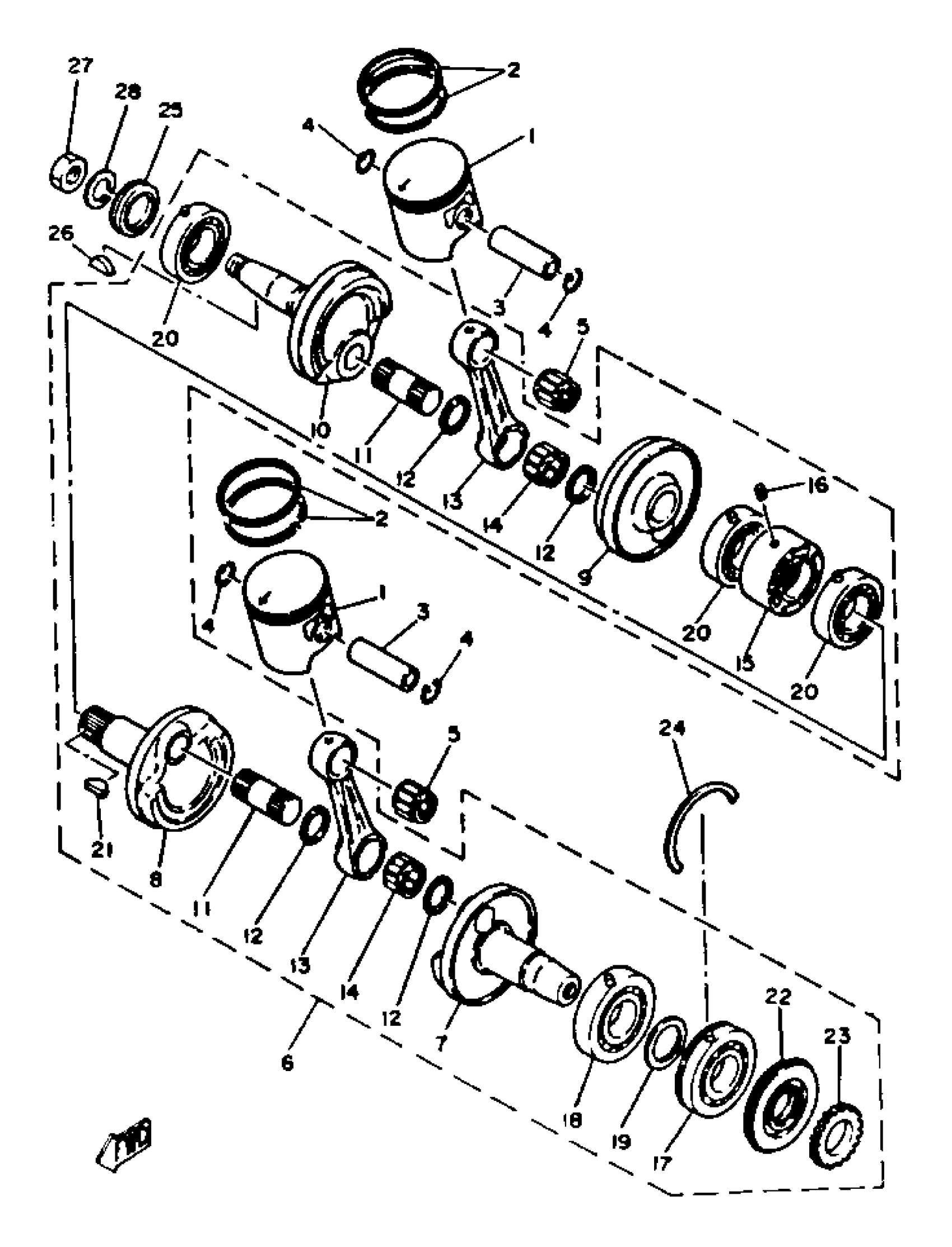

1980 Yamaha SS440D Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1980 Yamaha SS440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SS440D Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON STD

8K4-11631-01-96

1
Out of stock

1

PISTON 1 O/S 0.25

8K4-11635-01-00

1
Out of stock

1

PISTON 2 O/S 0.50

8K4-11636-01-00

1
Out of stock

1

PISTON 3 O/S 0.75

8K4-11637-01-00

1
Out of stock

1

PISTON (4th O/S 1.00mm)

8K-41163-80-00

1
Out of stock

2

PISTON RING SET (STD)

8K4-11601-00-00

1

$52.37

In stock

2

PISTON RINGSET 1ST (1ST O/S)

8K4-11601-10-00

1
Out of stock

2

PISTON RINGSET 2ND (2ND O/S)

8K4-11601-20-00

1
Out of stock

2

PISTON RING SET (3rd O/S)

8K-41160-13-00

1
Out of stock

2

PISTON RINGSET 4TH

(8K4-11601-40-00)

1
Out of stock

3

PIN, PISTON

168-11633-00-00

1
Out of stock

4

CLIP 6041163400

93450-20026-00

1

$5.10

In stock

5

1

$32.87

In stock

6

CRANKSHAFT ASSEMBLY

8K4-11400-01-00

1
Out of stock

7

CRANK 1

(8K4-11412-00-00)

1
Out of stock

8

. CRANK 2

8K-41142-20-00

1
Out of stock

9

CRANK 3

8K-41143-20-00

1
Out of stock

10

. CRANK 4

8K-41144-20-00

1
Out of stock

11

. PIN, CRANK 1

8H8-11681-00-00

1
Out of stock

12

WASHER (152-11685-00)

90209-24073-00

—

$10.08

In stock

13

. ROD, CONNECTING (838-11651-00)

8A7-11651-00-00

1
Out of stock

14

BEARING

93310-424E8-00

1

$19.49

In stock

15

SEAL, LABYRINTH 1

8H8-11515-00-00

—

$35.92

In stock

16

PIN, SPRING (663)

91690-30010-00

1

$5.46

In stock

17

BEARING (8R6)

93306-30625-00

—

$76.42

In stock

18

BEARING (8R6)

93306-30625-00

—

$76.42

In stock

19

WASHER (8H0)

90201-34683-00

—
Out of stock

20

BEARING (8G8)

93306-20617-00

—

$69.94

In stock

21

KEY, WOOD RUFF (324)

90280-05014-00

—

$7.82

In stock

22

OIL SEAL (878).

93103-32095-00

—

$30.09

In stock

23

GEAR, PUMP DRIVE

8K2-13178-00-00

—

$36.28

In stock

24

CIRCLIP (8H8)

93440-78069-00

—

$5.72

In stock

25

OIL SEAL(83R)

93103-32156-00

—

$26.08

In stock

26

KEY, WOOD RUFF (324)

90280-05014-00

—

$7.82

In stock

27

NUT

90170-16425-00

—
Out of stock

28

WASHER(JN5)

92907-16100-00

—

$12.08

In stock
