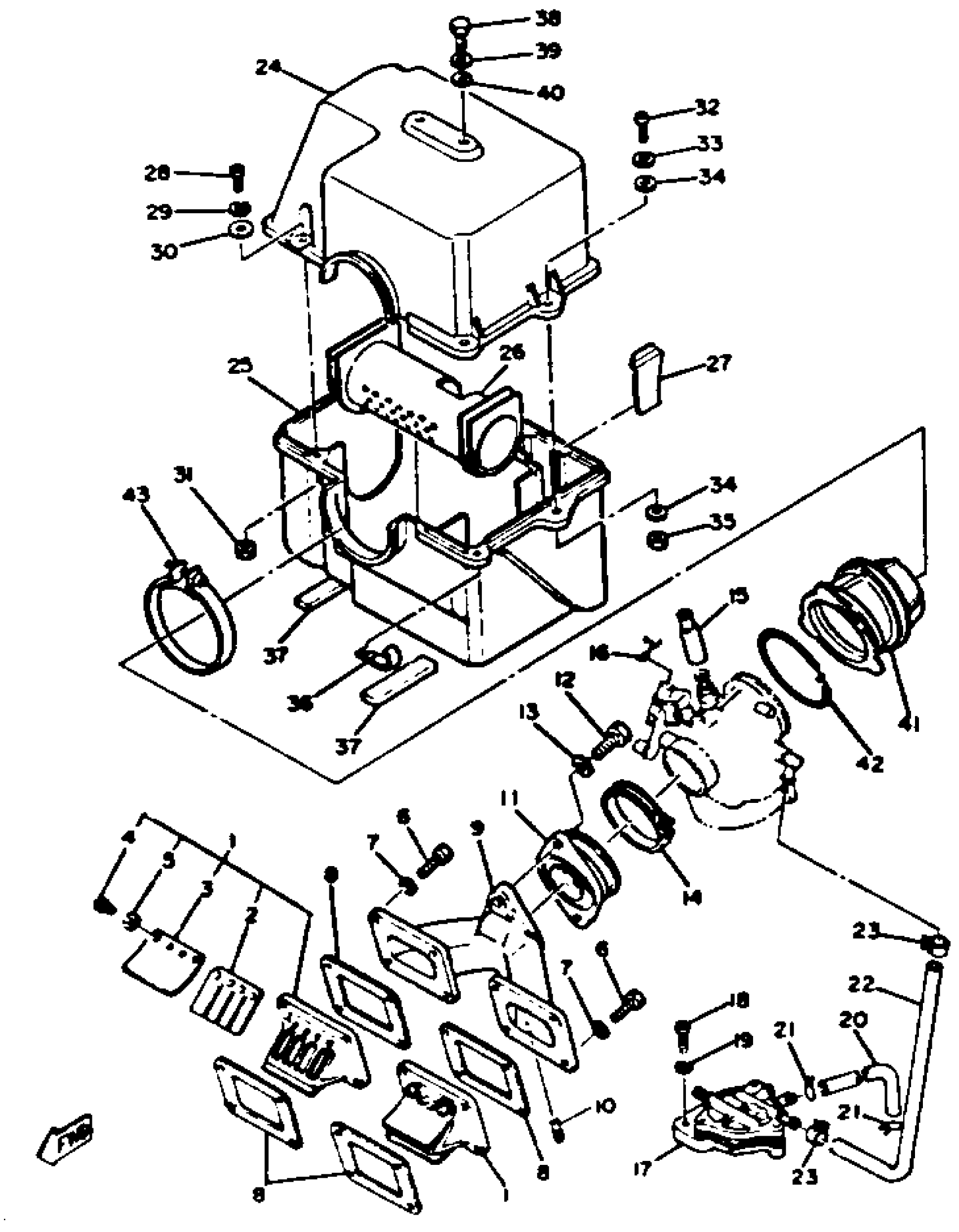

Yamaha SS440D 1980 AIR CLEANER Diagram

#

Description
Price

1

REED VALVE ASSY

8AT-13610-00-00

$165.99

2

REED, VALVE

8AT-13613-00-00

$33.99

3

STOPPER REED VALVE

8H8-13616-00-00

$4.77

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

WASHER, SPRING

92990-03100-00

$8.49

6

BOLT, HEXAGON

97017-06025-00

$4.24

7

WASHER, PLAIN (646)

92990-06600-00

$2.80

8

GASKET, MANIFOLD

8Y7-13556-01-00

$9.49

9

JOINT, carburetor

[8K-41356-50-00

Unavailable

10

NOZZLE

824-13552-00-00

Unavailable

11

MANIFOLD

8G8-13555-01-00

$114.99

12

BOLT, HEXAGON

97017-08025-00

$10.49

13

.. WASHER, PLATE

92990-08600-00

Unavailable

14

BAND

86M-13575-00-00

$19.49

15

BOOT

8J5-26352-00-00

Unavailable

16

CLAMP, THROTTLE

830-41222-00-00

Unavailable

17

FUEL PUMP ASSY

8K4-24410-01-00

Unavailable

18

SCREW PAN HEAD

98580-06020-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

HOSE

90445-10209-00

Unavailable

21

CLIP

90467-090A2-00

Unavailable

22

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

Unavailable

23

CLIP

90467-11028-00

Unavailable

24

SILENCER, INTAKE 1

8K4-14431-00-00

Unavailable

25

SILENCER, INTAKE 2

8K4-14441-01-00

Unavailable

26

PIPE

8K4-14466-00-00

Unavailable

27

PLATE

8K4-14477-00-00

Unavailable

28

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

29

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

30

WASHER, PLAIN (646)

92990-05600-00

Unavailable

31

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

32

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

33

WASHER, SPRING

92995-06100-00

Unavailable

34

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

35

NUT, HEXAGON

95380-06600-00

Unavailable

36

CLAMP(7RG)

90462-06232-00

Unavailable

37

DAMPER 1

8K4-14425-00-00

Unavailable

38

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

39

WASHER, SPRING

92995-06100-00

Unavailable

40

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

41

JOINT, air cleaner 1

8K4-14453-00-00

Unavailable

42

SPRING, TENSION (8R4)

90506-06261-00

Unavailable

43

HOSE CLAMP ASSY

90450-75002-00

Unavailable
