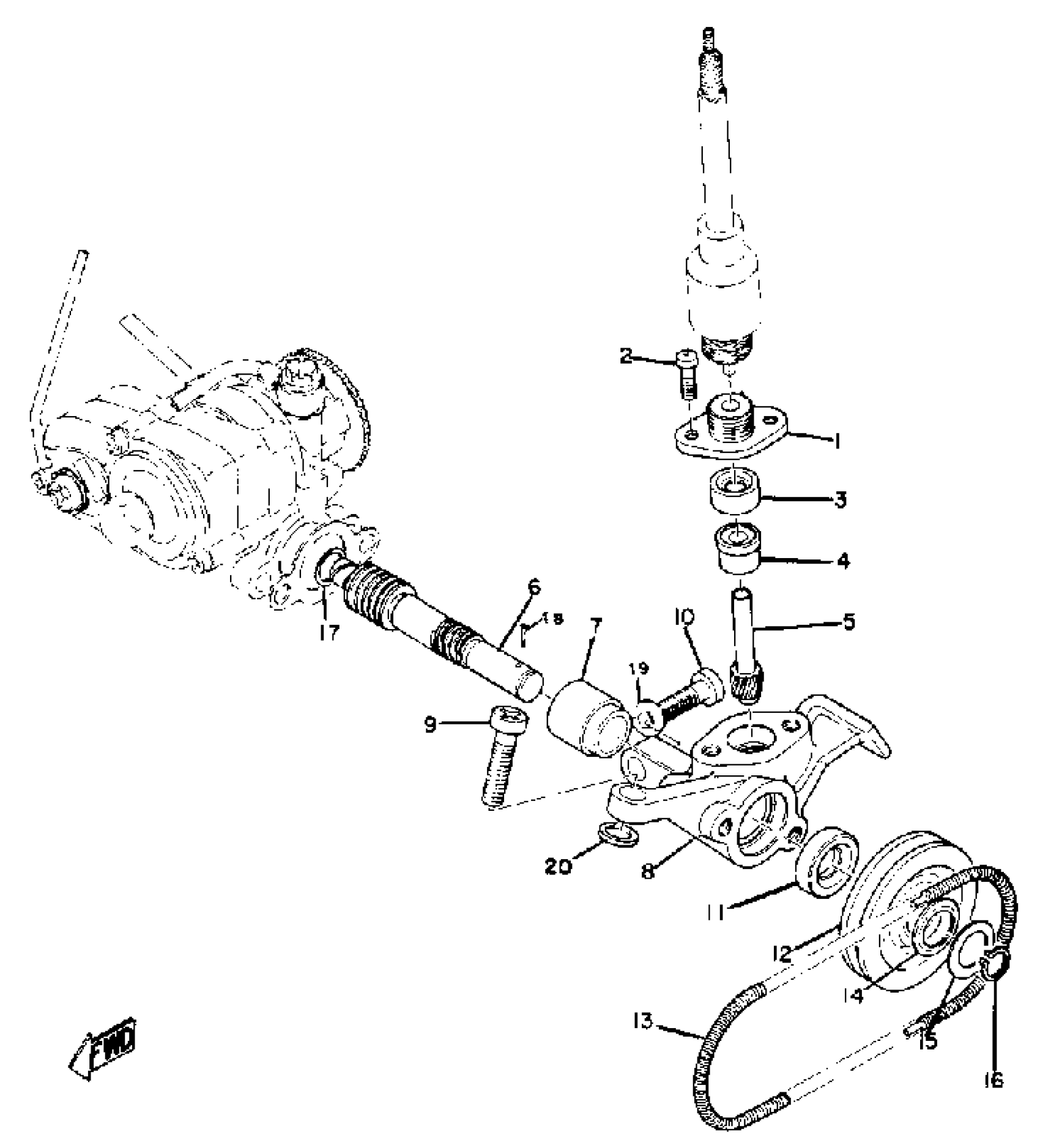

Yamaha SS433 1971 TACHOMETER GEAR Diagram

#

Description

Price

1

CAP, HOUSING

(813-17819-00-00)

Unavailable

2

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

3

OIL SEAL, SO-TYPE

(93104-06035-00)

Unavailable

4

BUSH, DRVN GR OUTER

(813-17843-00-00)

Unavailable

5

GEAR, DRIVEN (10T)

813-17841-00-00

Unavailable

6

SHAFT, WORM

813-13175-00-00

Unavailable

7

METAL, WRM SHAF OTR

(813-13176-00-00)

Unavailable

8

BRACKET, PUMP

(813-13199-00-00)

Unavailable

9

SCREW PAN HEAD

98580-06020-00

$8.49

10

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

11

OIL SEAL (J10)

93101-10090-00

$8.49

12

GEAR, PUMP DRIVE

(810-13178-00-00)

Unavailable

13

BELT (810-13189-00)

808-13189-00-00

Unavailable

14

UNAVAILABLE IN PRICE BOOK (137-13129-00)

90261-10160-0

Unavailable

15

PLATE, CAM THRUST

137-13148-00-00

Unavailable

16

CIRCLIP(10W)

99009-10400-00

Unavailable

17

SHIM

(813-17837-00-03)

Unavailable

17

SHIM

(813-17837-00-05)

Unavailable

18

PIN,DOWEL (137)

93603-22028-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

WASHER, PLATE (371)

90201-06431-00

Unavailable
