1971 Yamaha SS433 Fuel Tank Diagram

← All diagrams

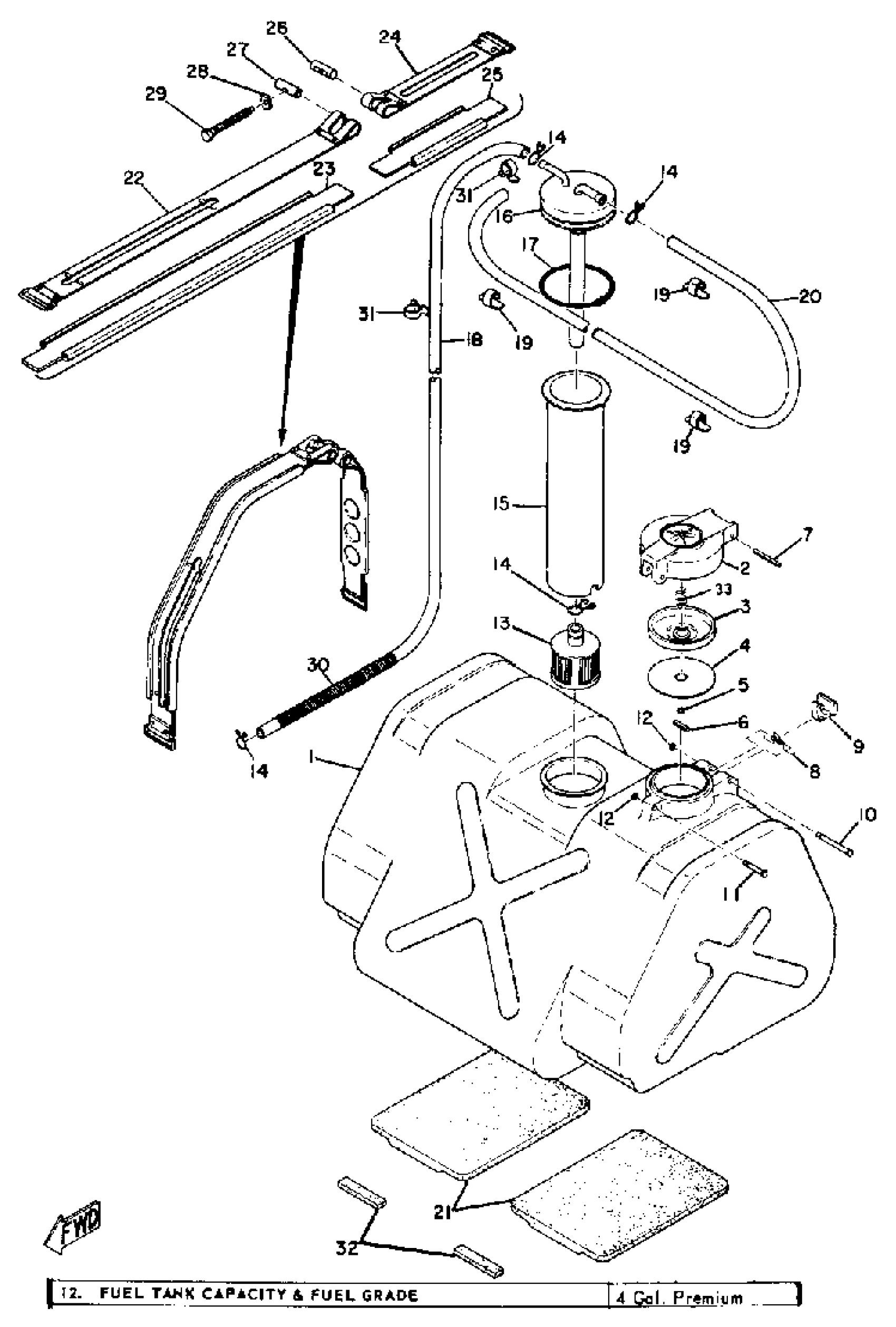

Find the part on the Fuel Tank diagram for your 1971 Yamaha SS433, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SS433 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

813-24111-00-00

1
Out of stock

2

BODY, CAP

8A5-24611-00-00

1
Out of stock

3

DISK,CAP

813-24613-01-00

1

$18.71

In stock

4

GASKET, CAP

256-24612-00-00

1
Out of stock

5

O-RING (256)

93210-04122-00

1
Out of stock

6

PIN, SPRING

91690-30016-00

1

$5.88

In stock

7

PIN, SPRING

91609-25032-00

1

$1.83

In stock

8

SPRING, TORSION (813-24637-00)

90508-08003-00

1
Out of stock

9

HOOK

83M-24628-00-00

1

$19.68

In stock

10

PIN (813)

90249-03017-00

1

$2.25

In stock

11

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

12

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

13

FILTER ASSEMBLY

(813-24560-01-00)

1
Out of stock

14

CLIP (8J7)

90467-11009-00

1

$7.55

In stock

15

PIPE, SUCTUIN

813-24336-00-00

—
Out of stock

16

PIPE, SUCTION 1

813-24335-00-00

1
Out of stock

17

SPRING, TENSION (8R4)

90506-06261-00

—

$6.94

In stock

18

HOSE

90446-11040-00

1
Out of stock

19

CLAMP, FUEL PIPE 1

(813-24366-00-00)

1
Out of stock

20

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—

$12.58

In stock

21

DAMPER, LOCATING 1

(813-24181-00-00)

1
Out of stock

22

BAND, TNK FITTING 1

(813-24173-00-00)

1
Out of stock

23

DAMPER, LOCATING 3

(813-24183-00-00)

1
Out of stock

24

BAND, TNK FITTING 2

(813-24199-00-00)

1
Out of stock

25

DAMPER, LOCATING 4

(813-24184-00-00)

1
Out of stock

26

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

1
Out of stock

27

CLAMP

806-24135-00-00

—

$3.20

In stock

28

WASHER, LOCK

(90215-05058-00)

1
Out of stock

29

SCREW, HEXAGON

(90153-05002-00)

1
Out of stock

30

—

$3.98

In stock

31

CLAMP

(90463-07002-00)

1
Out of stock

32

SEAT, TNK PROTECTOR

(813-24193-00-00)

1
Out of stock

33

SPRING, CAP

90501-20130-00

—

$6.80

In stock
