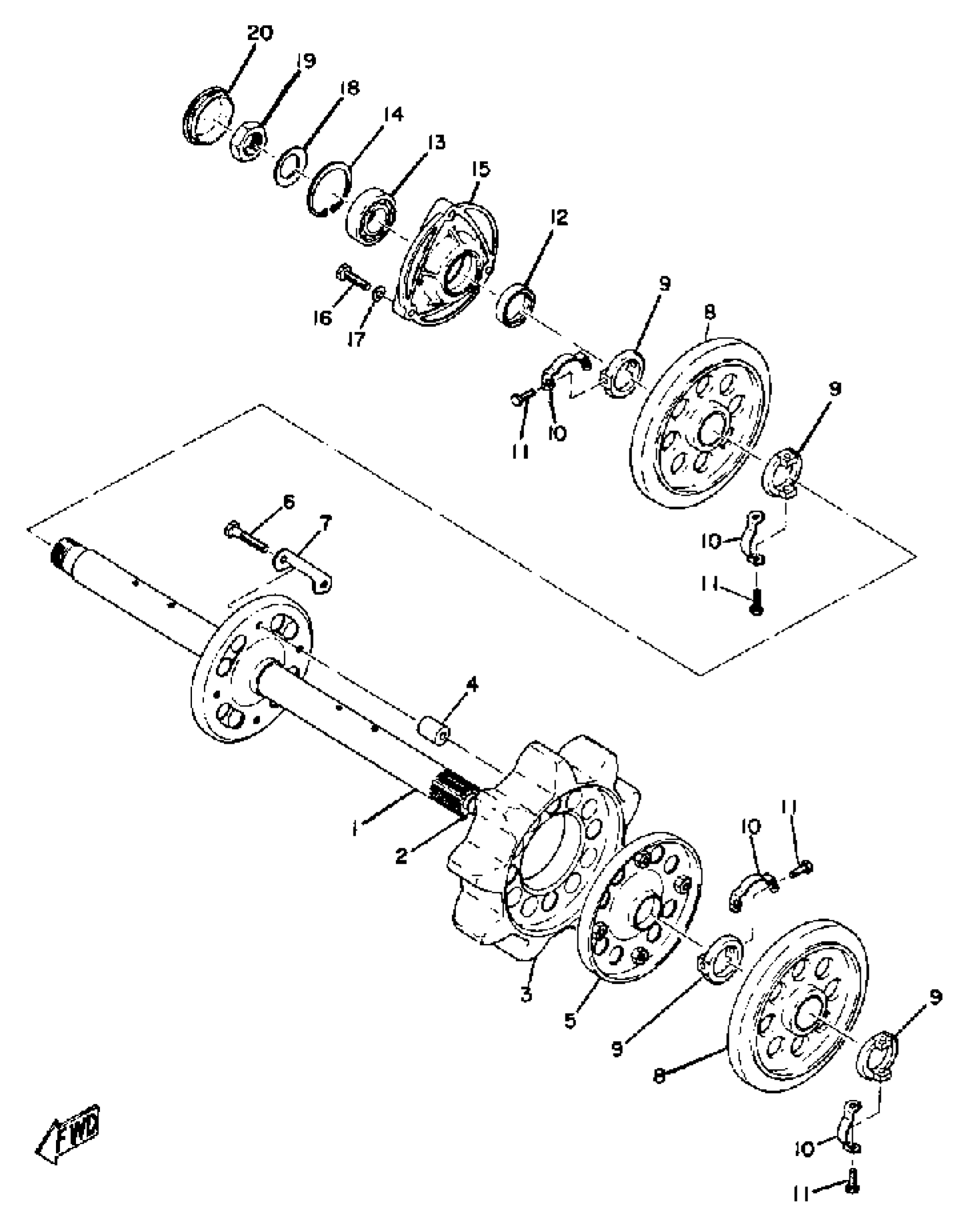

Yamaha SS433 1971 FRONT AXLE Diagram

#

Description
Price

1

FRONT AXLE

(810-47510-00-00)

Unavailable

2

PLUG, TAPER

(90336-14006-00)

Unavailable

3

WHEEL, SPROCKET 2

810-47532-00-00

Unavailable

4

COLLAR

(90387-06021-00)

Unavailable

5

RIM, SPROCKET WHL 2

(810-47522-00-00)

Unavailable

6

BOLT(3RV)

97014-06035-00

$2.75

7

WASHER, LOCK

90215-06100-00

Unavailable

8

GUIDE WHEEL

810-47530-00-00

Unavailable

9

COLLAR

810-47536-00-00

Unavailable

10

WASHER, LOCK

(810-47539-00-00)

Unavailable

11

BOLT, HEXAGON

97313-05016-00

Unavailable

12

OIL SEAL,SD-TYPE

93102-25332-00

Unavailable

13

BEARING

93306-00412-00

Unavailable

14

CIRCLIP, R-TYPE

93420-44029-00

Unavailable

15

HOUSING, FRONT AXLE

810-47551-00-00

Unavailable

16

BOLT, HEXAGON

97017-06025-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WASHER 810475810000

90208-22001-00

Unavailable

19

NUT (821-47579-00)

90170-22094-00

Unavailable

20

CAP (NOT AVAIL)

810-47552-00-00

Unavailable
