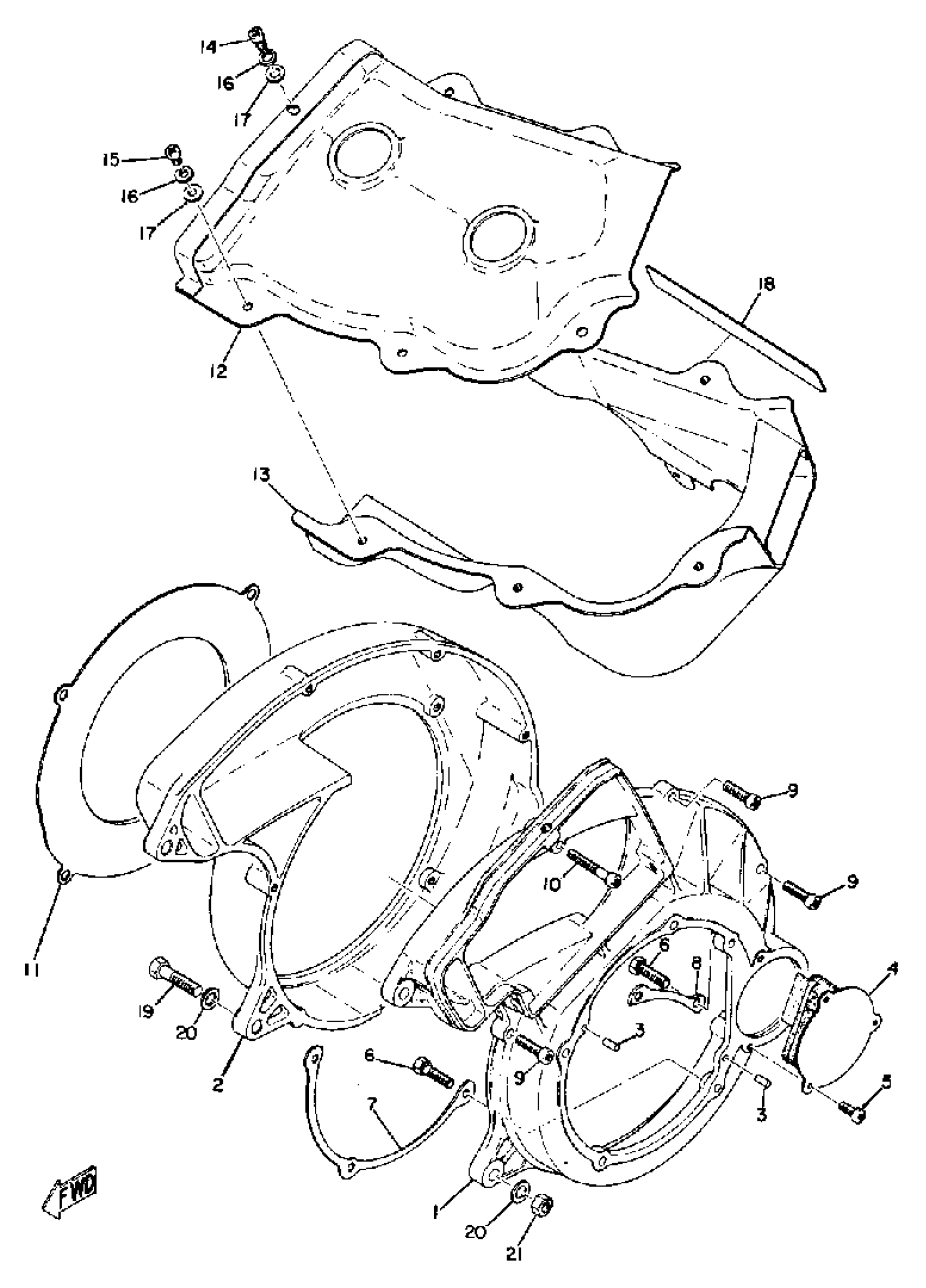

Yamaha SS433 1971 FAN CASE & AIR SHROUD Diagram

#

Description
Price

1

CASE, FAN

(811-12621-00-00)

Unavailable

2

CASE, FAN 2

(811-12622-00-00)

Unavailable

3

PIN,DOWEL (137)

93604-14012-00

$1.81

4

PLATE

(811-12633-00-00)

Unavailable

5

SCREW, BIND

98903-05010-00

Unavailable

6

BOLT

(807-12623-00-00)

Unavailable

7

WASHER, LOCK 1

(807-12624-00-00)

Unavailable

8

WASHER, LOCK 2

(807-12625-00-00)

Unavailable

9

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

10

SCREW PAN HEAD

98580-06040-00

$8.49

11

DEFLECTOR 1

(807-12631-00-00)

Unavailable

12

AIR SHROUD, CYLINDER 1

(813-12651-00-00)

Unavailable

13

AIR SHROUD, CYLINDER 2

(813-12652-00-00)

Unavailable

14

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

15

SCREW PAN HEAD

98580-06010-00

$8.49

16

WASHER, SPRING

92995-06100-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

18

EMBLEM 1

(818-77351-00-00)

Unavailable

19

BOLT

97013-08035-00

Unavailable

20

WASHER, PLAIN

92990-08200-00

Unavailable

21

NUT(6L2)

95333-08600-00

Unavailable
