EXHAUST

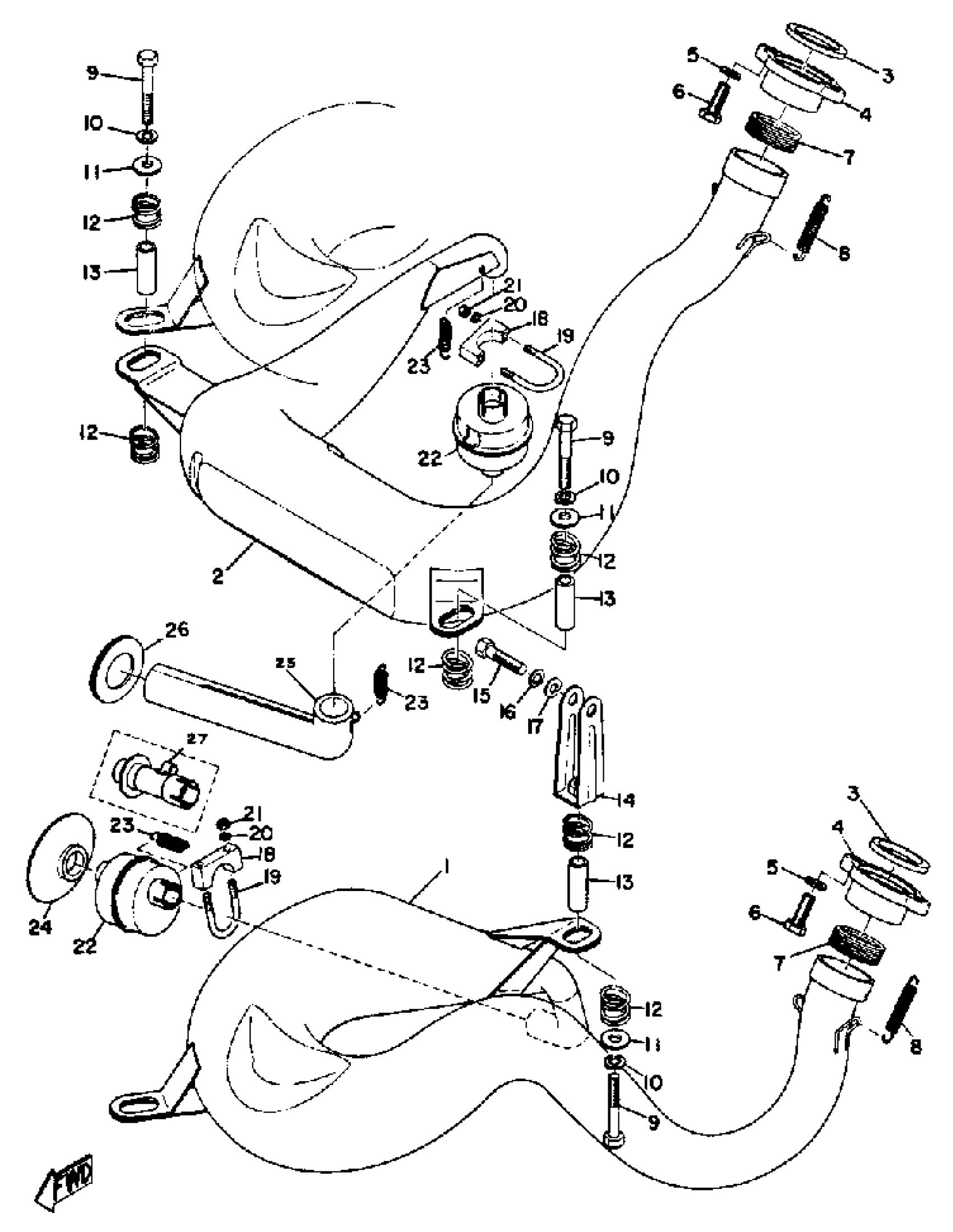

Yamaha SS433 1971 EXHAUST Diagram
#
Description
Price
1
EXHAUST PIPE ASSEMBLY L
(818-14610-00-00)
Unavailable
2
EXHAUST PIPE ASSEMBLY R
(818-14620-00-00)
Unavailable
3
GASKET, EXST PIPE
807-14613-02-00
Unavailable
4
NUT, RING
(818-14612-00-00)
Unavailable
5
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
6
BOLT (682)
97013-08025-00
$8.49
7
GASKET, EXST PIPE
(802-14623-00-00)
Unavailable
8
SPRING, TENSION
90506-12028-00
Unavailable
9
BOLT (663)
97013-08060-00
$4.41
10
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
11
WASHER, PLATE (5J0)
90201-085E6-00
$10.49
12
SPRING, COMPRESSION (802-14773-00)
90501-26149-00
Unavailable
13
COLLAR (802-14638-00)
90387-09071-00
Unavailable
14
STAY, MUFFLER
(809-14791-00-00)
Unavailable
15
BOLT
97013-08045-00
Unavailable
16
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
17
WASHER, PLAIN
92990-08200-00
Unavailable
18
BRACKET
(818-14744-00-00)
Unavailable
19
BOLT
(90109-05279-00)
Unavailable
20
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
21
NUT, HEXAGON (663)
95380-05600-00
Unavailable
22
SILENCER, EXHAUST
(818-14753-00-00)
Unavailable
23
SPRING 214-14683-01
90506-12029-00
Unavailable
24
PROTECTOR, MUFF 1
(818-14718-00-00)
Unavailable
25
PIPE, MUFFLER TAIL
(818-14746-00-00)
Unavailable
26
PROTECTER, MUFF 2
(818-14728-00-00)
Unavailable
27
PIPE, TAIL
(818-14784-00-00)
Unavailable
