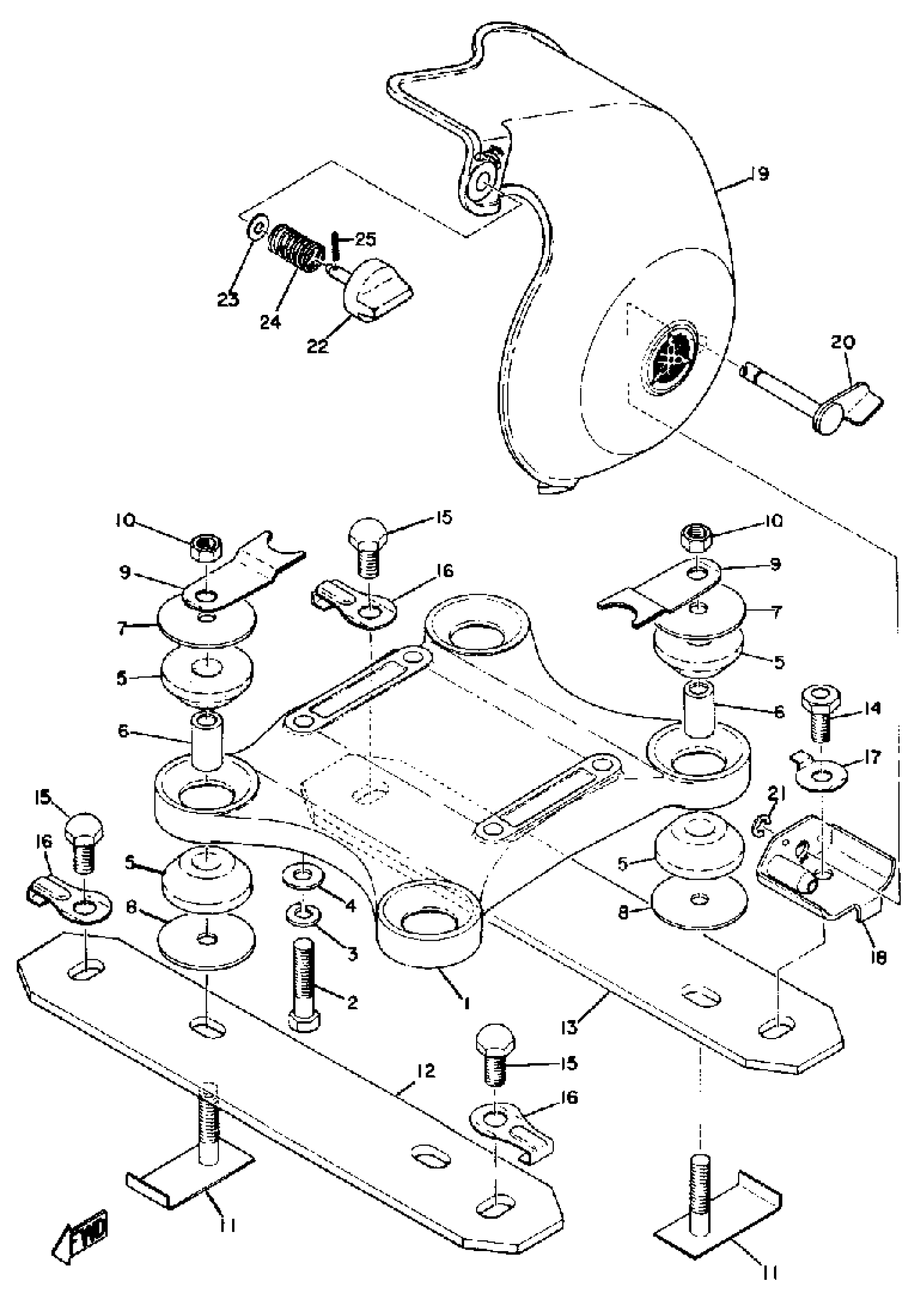

Yamaha SS433 1971 ENGINE BRACKET Diagram

#

Description
Price

1

BRACKET, ENGINE 1

(807-21411-00-00)

Unavailable

2

BOLT,HEXAGON(676)

97013-10050-00

Unavailable

3

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

4

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

5

DAMPER, ENG MOUNT 1

807-15316-00-00

Unavailable

6

SPACER

90560-10020-00

Unavailable

7

WASHER, LOCK

(807-21491-00-00)

Unavailable

8

WASHER, PLATE (807-21492-00)

90201-10152-00

Unavailable

9

WASHER, LOCK

(90215-10074-00)

Unavailable

10

NUT (682)

95380-10700-00

Unavailable

11

BOLT, ENG MNTNG 2

(807-21482-00-00)

Unavailable

12

BRACKET, ENGINE 2

(806-21419-00-00)

Unavailable

13

BRACKET, ENGINE 3

(810-21429-00-00)

Unavailable

14

BOLT

90101-10055-00

Unavailable

15

BOLT(8BT)

97017-10020-00

$8.49

16

WASHER, LOCK

(810-21492-00-00)

Unavailable

17

WASHER, LOCK

90215-10073-00

Unavailable

18

BRACKET 1

(806-77315-01-00)

Unavailable

19

GUARD, DRIVE

(810-77311-01-00)

Unavailable

20

ARM, FITTING

806-77314-00-00

Unavailable

21

CIRCLIP(53L)

99001-06600-00

Unavailable

22

KNOB

(806-77324-00-00)

Unavailable

23

WASHER, PLATE

90201-06095-00

Unavailable

24

SPRING 1

806-77325-00-00

Unavailable

25

PIN, SPRING

91690-25016-00

Unavailable
