Description

Price

1

IGNITION COIL ASSEMBLY

(810-82310-40-00)

Unavailable

2

IGNITION COIL ASSEMBLY

(810-82320-41-00)

Unavailable

3

SCREW, PAN

98517-06020-00

$8.49

4

WASHER, SPRING

92907-06100-00

$4.25

5

COVER, IGNITN COIL

(810-82314-00-00)

Unavailable

6

PLUG CAP ASSY

56J-82370-00-00

$64.99

7

BAND, SWITCH CORD

437-83936-01-00

$7.99

8

MAIN SWITCH ASSEMBLY

(810-82508-20-00)

Unavailable

9

COLLAR, MAIN SWITCH

806-82516-00-00

Unavailable

10

STOP SWITCH ASSEMBLY

(806-82530-00-00)

Unavailable

11

BAND, SWITCH CORD

437-83936-11-00

$4.63

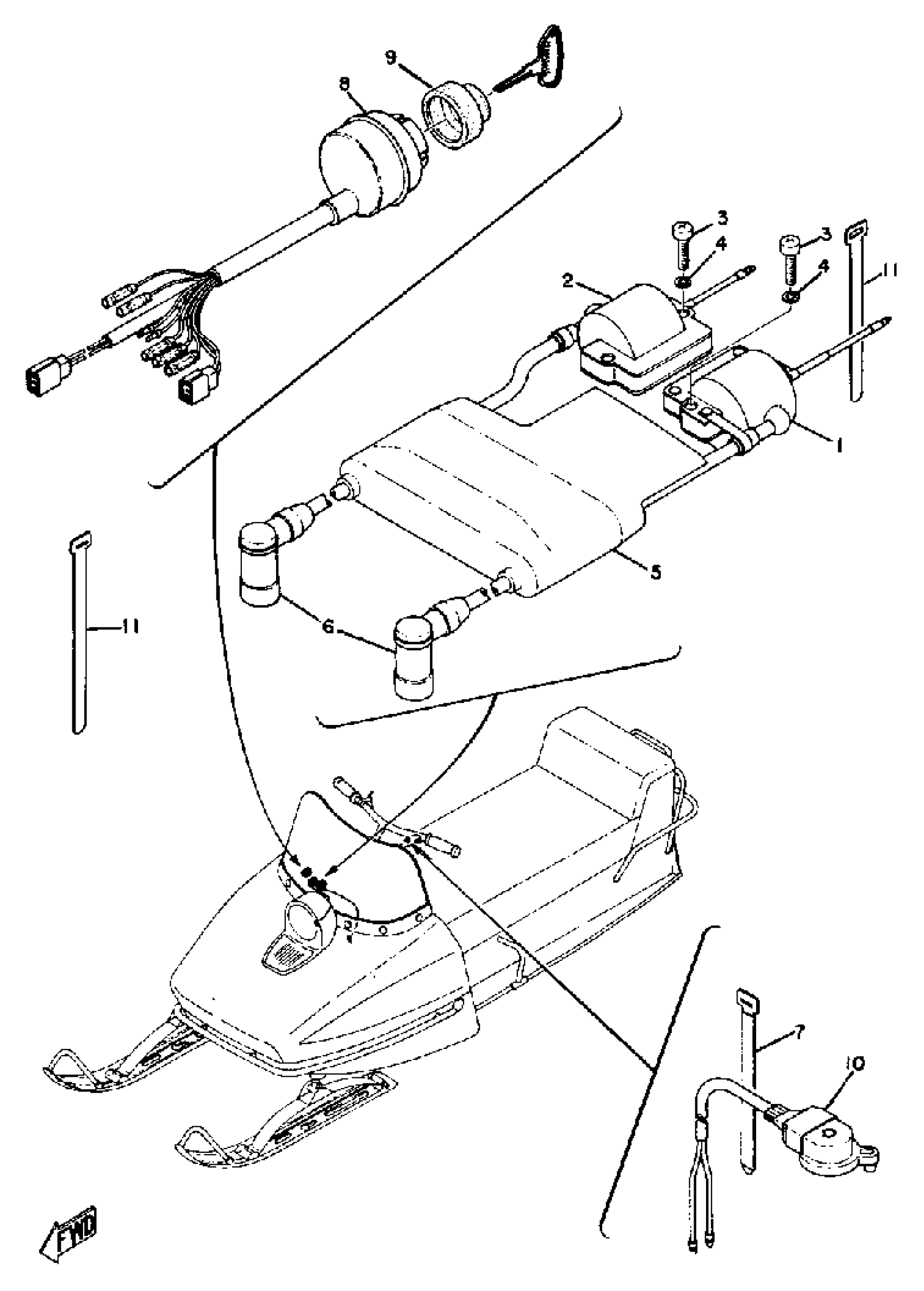

Yamaha SS433 1971 ELECTRICAL Diagram

IGNITION COIL ASSEMBLY

IGNITION COIL ASSEMBLY

SCREW, PAN

WASHER, SPRING

COVER, IGNITN COIL

PLUG CAP ASSY

BAND, SWITCH CORD

MAIN SWITCH ASSEMBLY

COLLAR, MAIN SWITCH

STOP SWITCH ASSEMBLY

BAND, SWITCH CORD
