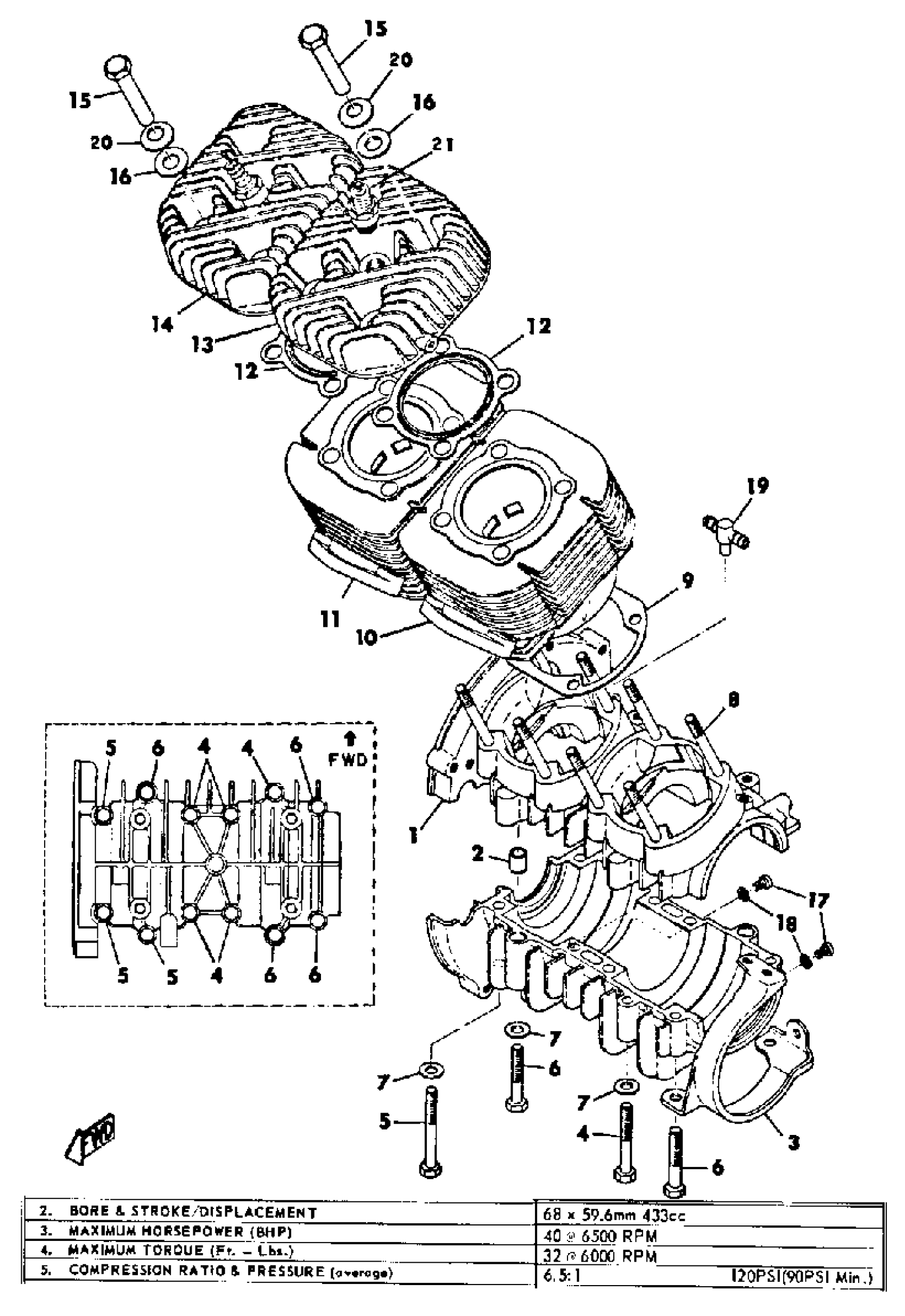

Yamaha SS433 1971 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

(811-15100-01-00)

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

PROTECTOR

(810-15491-02-00)

Unavailable

4

BOLT (663)

97013-08060-00

$4.41

5

BOLT(6TC)

97027-08070-00

Unavailable

6

BOLT, HEXAGON

97013-08050-00

Unavailable

7

WASHER, PLAIN

92990-08200-00

Unavailable

8

BOLT (248-11361-00)

90116-08064-00

$7.49

9

GASKET, CYLINDER

857-11351-09-00

$4.42

10

CYLINDER 1

(818-11311-00-00)

Unavailable

11

CYLINDER 2

(818-11321-00-00)

Unavailable

12

GASKET, CYL HEAD 1

818-11181-09-00

Unavailable

13

HEAD, CYLINDER 1

(818-11111-00-00)

Unavailable

14

HEAD, CYLINDER 2

818-11121-00-00

Unavailable

15

NUT, SPEC''L SHAPE

90179-08076-00

Unavailable

16

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

17

SCREW PAN HEAD

98580-06010-00

Unavailable

18

GASKET

90430-06017-00

Unavailable

19

PIPE, JOINT

(807-24461-00-00)

Unavailable

20

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

21

UNAVAILABLE IN PRICE BOOK (N-59G) (94700-00001)

94700-00068-00

Unavailable

21

CHAMPION N2G 10PK

(CMP-N2G00-00-00)

Unavailable

21

CHAMPION N3G 10PK

(CMP-N3G00-00-00)

Unavailable
