1971 Yamaha SS433 Crank & Piston Diagram

← All diagrams

Find the part on the Crank & Piston diagram for your 1971 Yamaha SS433, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

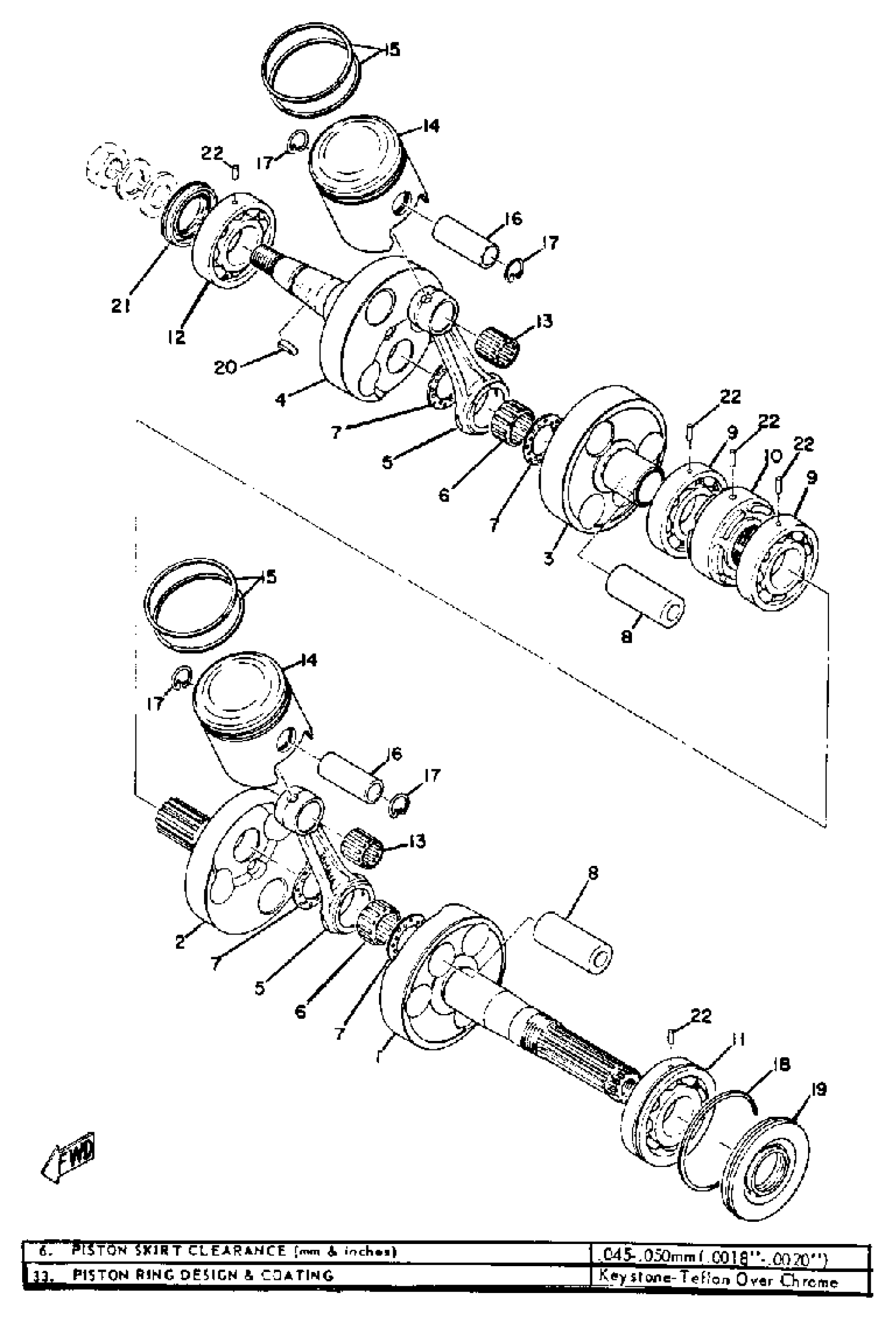

1971 Yamaha SS433 Crank & Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(811-11400-00-00)

1
Out of stock

1

CRANK 1

(811-11412-00-00)

1
Out of stock

2

CRANK 2

(811-11422-00-00)

1
Out of stock

3

CRANK 3

(807-11432-00-00)

1
Out of stock

4

CRANK 4

(807-11442-00-00)

1
Out of stock

5

. ROD, CONNECTING (838-11651-00)

8A7-11651-00-00

1
Out of stock

6

BEARING

93310-424E8-00

1

$19.49

In stock

7

WASHER (152-11685-00)

90209-24073-00

1

$10.08

In stock

8

. PIN, CRANK 1

168-11681-00-00

1
Out of stock

9

BEARING(8V0)

93306-20633-00

1

$67.35

In stock

10

. SEAL, LABYRINTH 1

811-11515-00-00

1
Out of stock

11

. BEARING

93306-30603-00

1
Out of stock

12

BEARING(8V0)

93306-20633-00

1

$67.35

In stock

13

1

$32.87

In stock

14

PISTON .96

(818-11631-02-96)

1
Out of stock

14

PISTON 1 O/S 0.25 (1ST O.S) (818-11635-00)

818-11635-02-00

1
Out of stock

14

PISTON 2 O/S 0.50

(818-11636-02-00)

1
Out of stock

15

PISTON RINGSET STD

818-11601-00-00

1
Out of stock

15

RING, PISTON 1ST

(818-11611-10-00)

1
Out of stock

15

RING, PISTON 2ND

(818-11611-20-00)

1
Out of stock

16

PIN, PISTON

818-11633-00-00

—

$28.05

In stock

17

CLIP 6041163400

93450-20026-00

—

$5.10

In stock
Crankcase →
