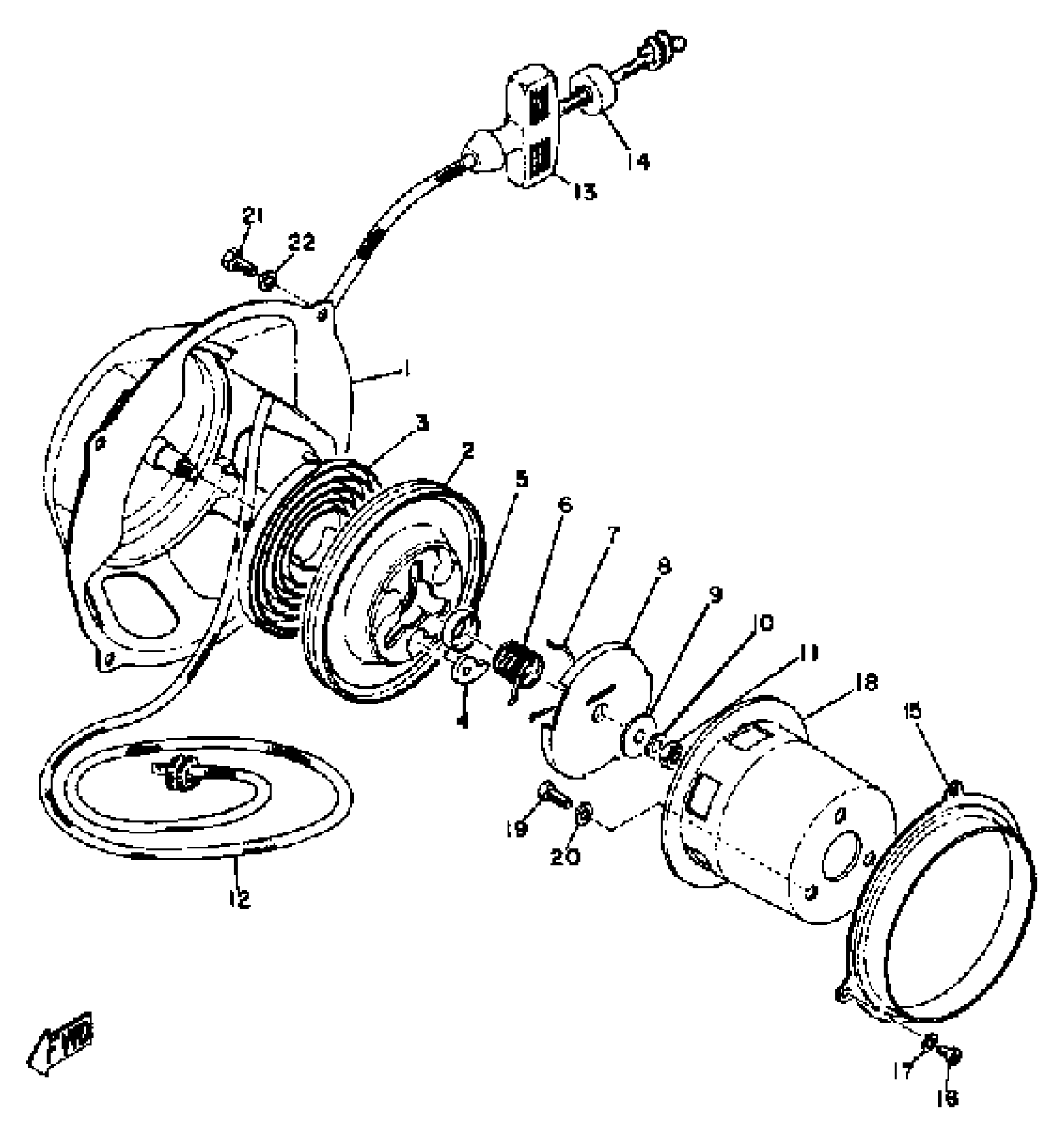

Yamaha SS396 1969 STARTER Diagram

#

Description
Price

1

CASE, STARTER

(807-15711-00-00)

Unavailable

1

STARTER ASSEMBLY

(821-15710-00-00)

Unavailable

2

. SPRING, STARTER

802-15713-00-00

Unavailable

2

DRUM, SHEAVE

(807-15714-00-00)

Unavailable

4

PAWL, DRIVE

(626-15741-01-00)

Unavailable

5

WASHER, THRUST

(807-15719-00-00)

Unavailable

6

SPRING,DRIVE PLATE

626-15715-01-00

Unavailable

7

. SPRING, RETURN

807-15784-00-00

Unavailable

8

. PLATE, DRIVE

626-15716-00-00

Unavailable

9

WASHER,FLAT

807-15726-01-00

Unavailable

10

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

11

. NUT

95380-08700-00

Unavailable

12

ROPE, STARTER

(807-15751-00-00)

Unavailable

13

. HANDLE, STARTER

807-15755-00-00

Unavailable

14

. CONNECTOR 1

619-15756-00-00

Unavailable

15

COVER, SHEAVE

(807-15782-00-00)

Unavailable

16

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

17

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

18

PULLEY, STARTER

(807-15723-00-00)

Unavailable

19

BOLT, HEXAGON

97013-08016-00

Unavailable

20

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable
