REAR AXLE

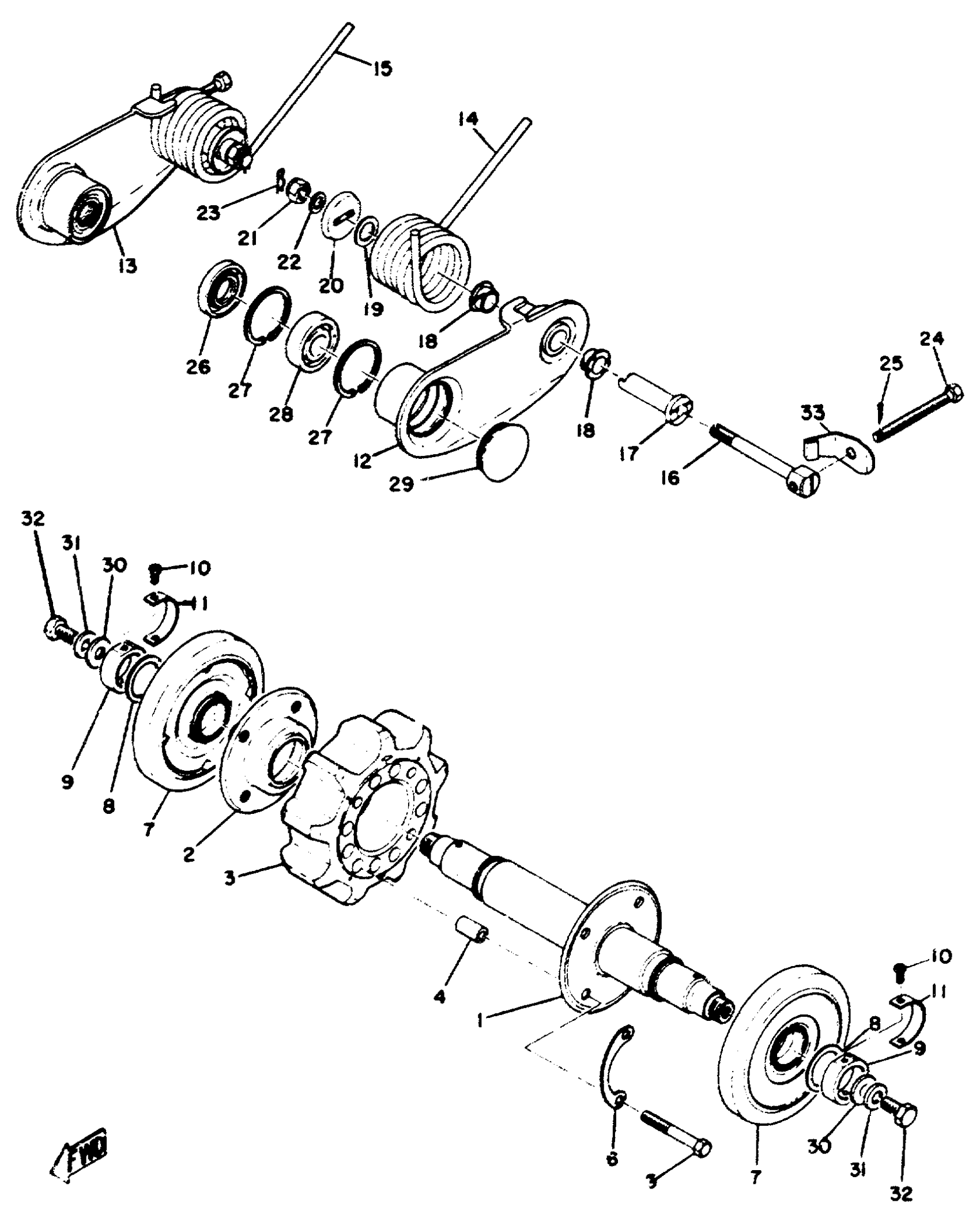

Yamaha SS396 1969 REAR AXLE Diagram
#
1
REAR AXLE
(806-47520-00-00)
Unavailable
2
RIM, SPROCKET WHL 2
(806-47522-00-00)
Unavailable
3
WHEEL, SPROCKET 1
(806-47531-00-00)
Unavailable
4
COLLAR
90387-09072-00
Unavailable
5
BOLT(6TC)
97027-08070-00
Unavailable
6
WASHER, LOCK
802-47517-00-00
Unavailable
7
GUIDE WHEEL
(806-47530-00-00)
Unavailable
8
WASHER (8H0)
90201-34683-00
$10.49
9
COLLAR
(806-47536-00-00)
Unavailable
10
SCREW, HEXAGON
90153-06004-00
Unavailable
11
WASHER, LOCK
(806-47539-00-00)
Unavailable
12
ARM, REAR PIVOT 1
(806-47361-00-00)
Unavailable
13
ARM, REAR PIVOT 2 (R.H)
806-47362-00-00
Unavailable
14
SPRING, TORSION
90508-70115-00
Unavailable
15
SPRING, TORSION (806-47364-00)
90508-70085-00
Unavailable
16
SCREW, SPEC''L SHAPE
(90149-10042-00)
Unavailable
17
COLLAR
806-47369-00-00
Unavailable
18
BUSH, PIVOT
(806-47371-00-00)
Unavailable
19
WASHER
(806-47384-00-00)
Unavailable
20
WASHER 1
(806-47374-00-00)
Unavailable
21
NUT, SELF-LOCKING
90185-10017-00
Unavailable
22
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
23
CLIP (156-83525-00)
90468-10050-00
Unavailable
24
BOLT, DOME HEAD (841-47373-00)
90106-08050-00
Unavailable
25
PIN, COTTER
91490-30030-00
Unavailable
26
OIL SEAL (25X47X7-801)
93102-25044-00
Unavailable
27
CIRCLIP(48Y)
99009-47500-00
Unavailable
28
BRG,R-B 62042RS 47MM 110G KY
93306-20417-00
Unavailable
29
CAP
802-47377-00-00
Unavailable
30
WASHER, PLATE (12.5-30-2.6)
90201-16513-00
Unavailable
31
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
32
BOLT(6TA)
97027-12020-00
Unavailable
33
WASHER, LOCK (806-47378-00)
90215-09072-00
Unavailable
