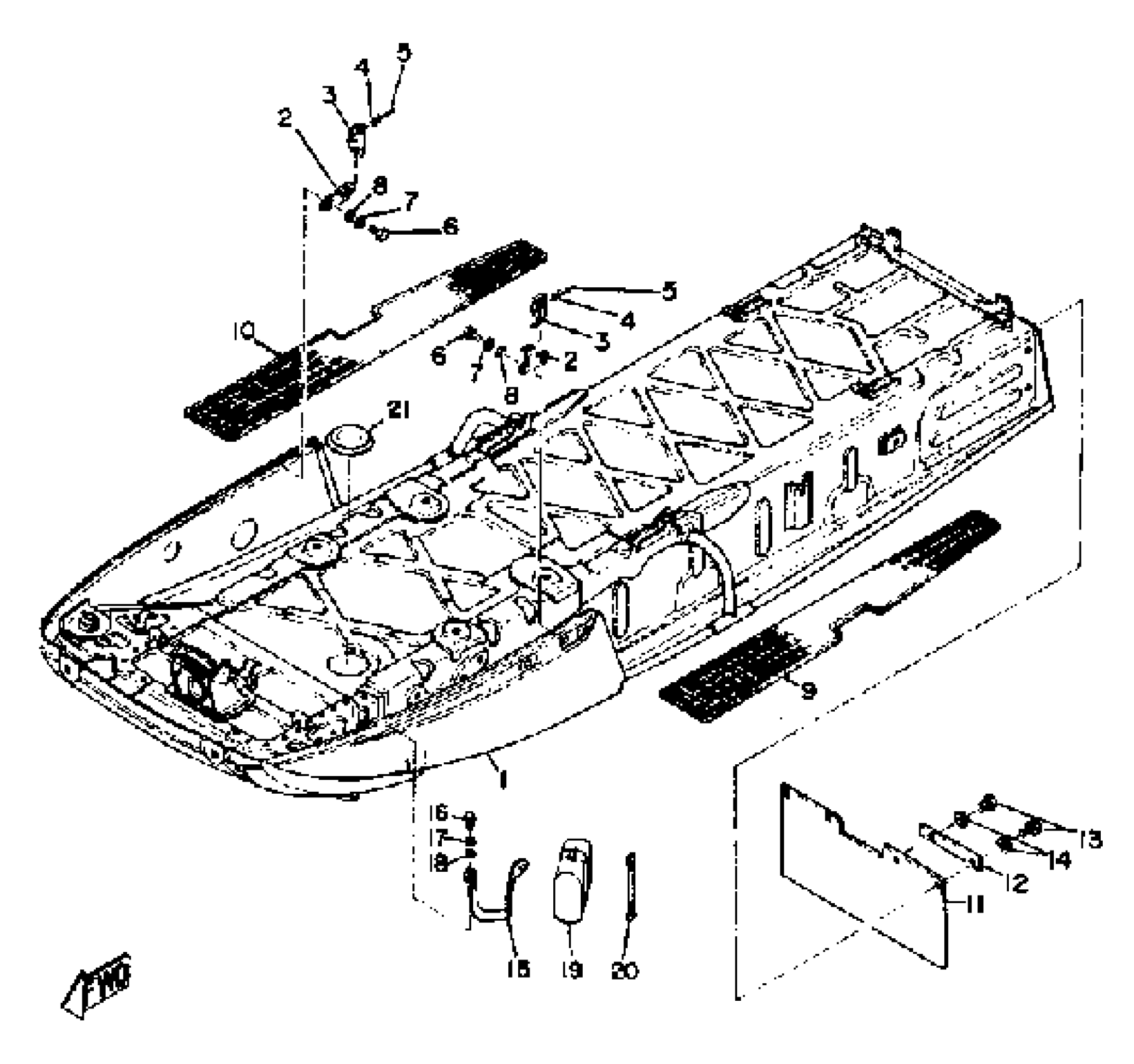

Yamaha SS396 1969 FRAME Diagram

#

Description

Price

1

LATCH ASSEMBLY

806-77170-00-00

Unavailable

1

FRAME

(809-21910-00-00)

Unavailable

2

BODY, LATCH 2

(806-77172-00-00)

Unavailable

3

. LEVER, LATCH 1

806-77173-00-00

Unavailable

4

. SPRING, TORSION

90508-10012-00

Unavailable

5

. PIN, SPECIAL SHAPE

90249-04068-00

Unavailable

6

BOLT, HEXAGON

(97306-05015-00)

Unavailable

7

WASHER(3SX)

92907-05100-00

$8.49

8

WASHER, PLATE 8067717800

90201-05029-00

$8.49

9

COVER, FOOTREST

(806-27413-00-00)

Unavailable

10

COVER, FOOTREST

(806-27423-00-00)

Unavailable

11

FLAP

(802-77595-02-00)

Unavailable

12

PLATE, FLAP 1

(802-77593-00-00)

Unavailable

13

BOLT, HEXAGON

97080-06100-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

LEDGE, TOOL

(809-21727-00-00)

Unavailable

16

BOLT, HEXAGON

97013-05010-00

Unavailable

17

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

18

. WASHER, PLAIN

92990-05200-00

Unavailable

19

TOOL KIT

(806-28100-00-00)

Unavailable

20

BAND, BATTERY

26L-82131-00-00

Unavailable

21

PROTECTER, MUFF 3

(809-14738-00-00)

Unavailable
