Description

Price

1

IGNITION COIL ASSEMBLY

206-82310-41-00

Unavailable

2

SCREW, PAN HEAD

98517-05020-00

$4.25

3

WASHER(3SX)

92907-05100-00

$8.49

4

PLUG CAP ASSY

56J-82370-00-00

$64.99

5

BAND, SWITCH CORD

437-83936-01-00

$7.99

6

MAIN SWITCH ASSEMBLY

(806-82510-21-00)

Unavailable

7

TOOL

UNA-VAILA-BL-EI

Unavailable

8

COLLAR, MAIN SWITCH

806-82516-00-00

Unavailable

9

COVER, CONNECTER

(806-82599-00-00)

Unavailable

10

SILICOM STACK ASSEMBLY

806-82390-20-00

Unavailable

11

SCREW, PAN HEAD

(98506-04015-00)

Unavailable

12

WASHER(6TA)

92907-04100-00

$8.49

13

WASHER(6E1)

92907-04200-00

Unavailable

14

BAND, SWITCH CORD

437-83936-11-00

$4.63

15

CORD, TAILLIGHT

(809-84727-00-00)

Unavailable

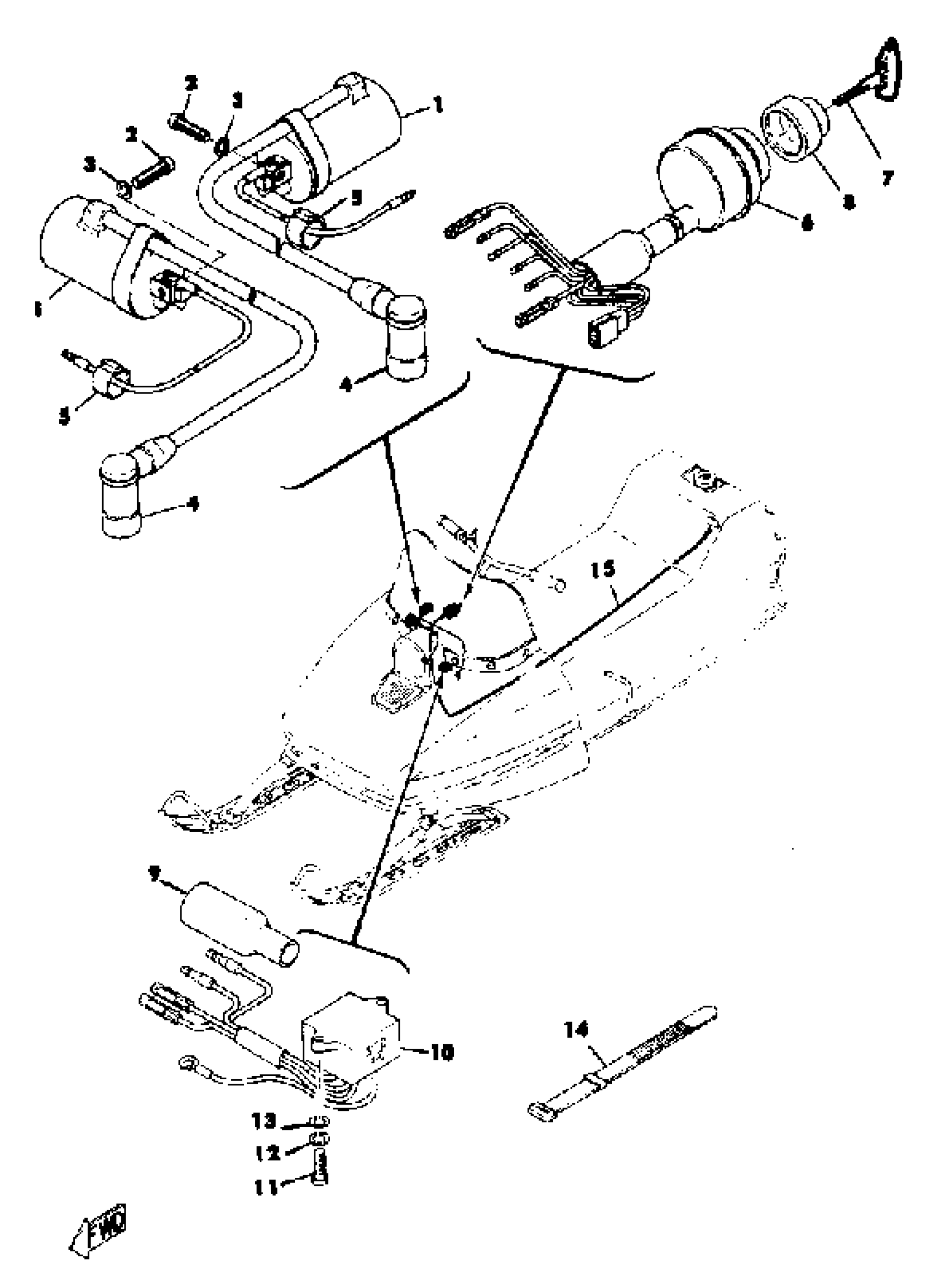

Yamaha SS396 1969 ELECTRICAL Diagram

IGNITION COIL ASSEMBLY

SCREW, PAN HEAD

WASHER(3SX)

PLUG CAP ASSY

BAND, SWITCH CORD

MAIN SWITCH ASSEMBLY

TOOL

COLLAR, MAIN SWITCH

COVER, CONNECTER

SILICOM STACK ASSEMBLY

SCREW, PAN HEAD

WASHER(6TA)

WASHER(6E1)

BAND, SWITCH CORD

CORD, TAILLIGHT
