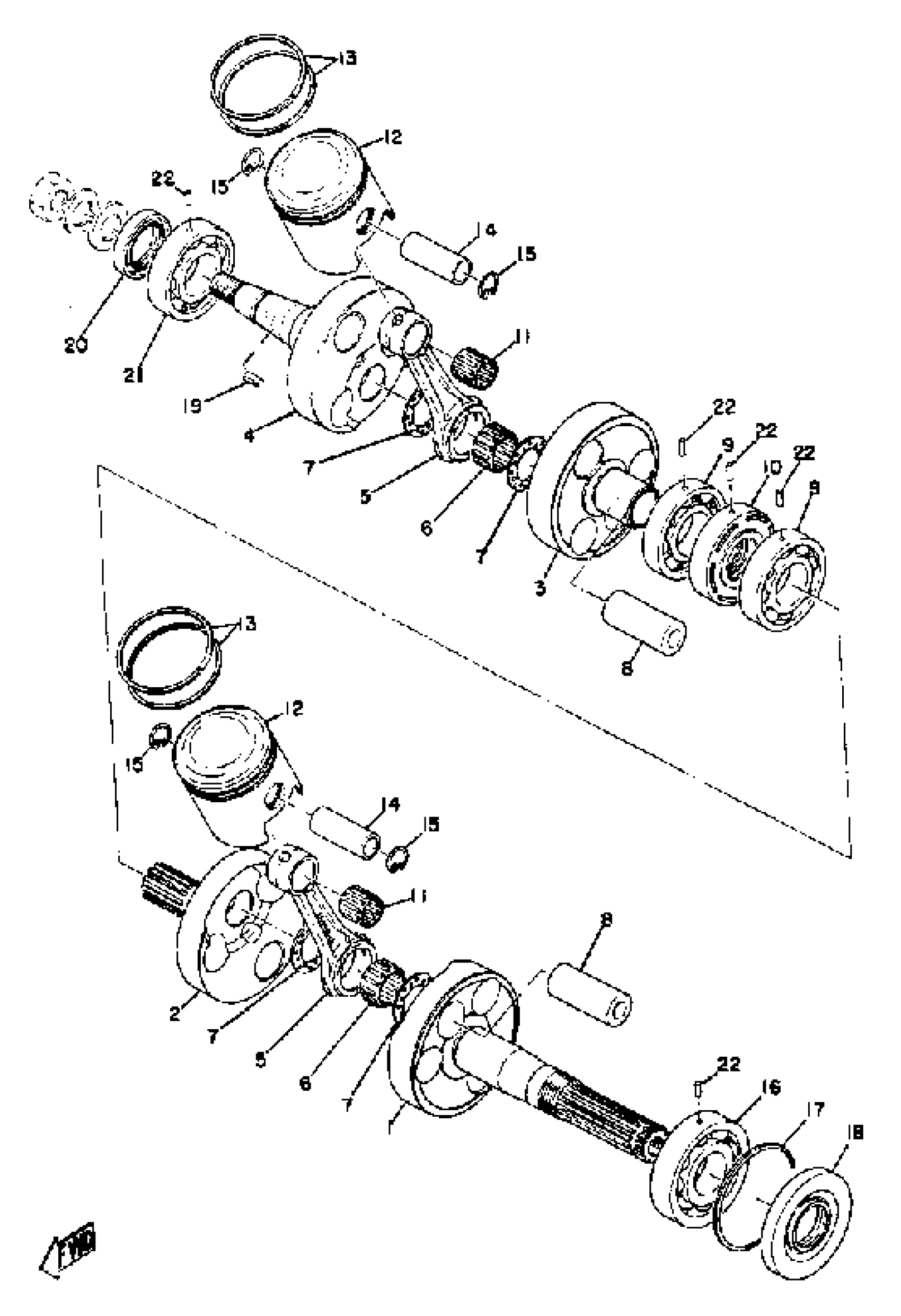

Yamaha SS396 1969 CRANK & PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

(807-11400-00-00)

Unavailable

1

CRANK 1

(807-11412-00-00)

Unavailable

2

CRANK 2

(807-11422-00-00)

Unavailable

3

CRANK 3

(807-11432-00-00)

Unavailable

4

CRANK 4

(807-11442-00-00)

Unavailable

5

. ROD, CONNECTING (838-11651-00)

8A7-11651-00-00

Unavailable

6

BEARING

93310-424E8-00

Unavailable

7

WASHER (152-11685-00)

90209-24073-00

$14.99

8

. PIN, CRANK 1

168-11681-00-00

Unavailable

9

BEARING(8V0)

93306-20633-00

$76.99

10

SEAL, LABYRINTH 1

(168-11515-00-00)

Unavailable

11

BRG,CYL-CAL ROLLER 15.6G KY

93310-218A6-00

$38.99

12

PISTON .96

(806-11631-70-96)

Unavailable

12

PISTON .96 (0.96)

809-11631-00-96

Unavailable

13

RING, PISTON STD

(806-11611-00-00)

Unavailable

13

PISTON RINGSET STD

807-11601-00-00

Unavailable

14

PIN, PISTON

168-11633-00-00

Unavailable

15

CLIP 6041163400

93450-20026-00

Unavailable

16

. BEARING

93306-30603-00

Unavailable

17

CIRCLIP, OUTER

93440-78011-00

Unavailable

18

OIL SEAL, SW-TYPE

93103-32054-00

Unavailable

19

KEY, WOODRUFF

214-11545-00-00

Unavailable

20

OIL SEAL(83R)

93103-32156-00

Unavailable

21

BEARING(8V0)

93306-20633-00

$76.99

22

PIN,DOWEL (168)

93604-12037-00

Unavailable
