CARBURETOR

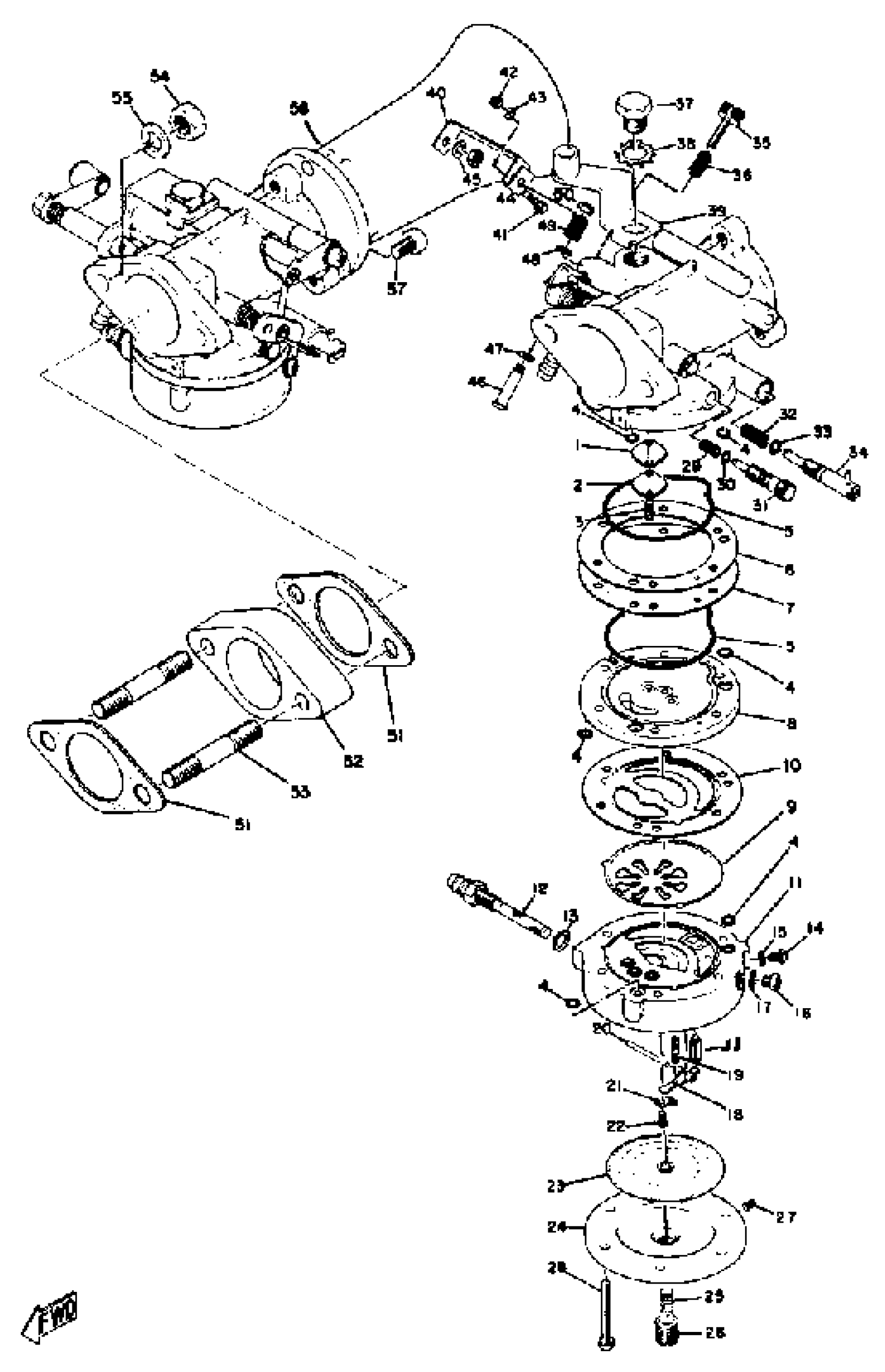

Yamaha SS396 1969 CARBURETOR Diagram
#
1
GASKET
(806-14537-00-00)
Unavailable
1
CARBURETOR ASSEMBLY 1
(809-14501-00-00)
Unavailable
2
PLATE
(806-14527-00-00)
Unavailable
2
CARBURETOR ASSEMBLY 2
(809-14502-00-00)
Unavailable
3
SCREW, PAN HEAD(GA5)
98580-04014-00
$4.51
4
O-RING
(806-14561-00-00)
Unavailable
5
. O-RING
806-14562-00-00
Unavailable
6
. GASKET
806-14536-00-00
Unavailable
7
. DIAPHRAGM, PUMP
806-14541-00-00
Unavailable
8
BODY, PUMP 1
(806-14542-00-00)
Unavailable
9
VALVE,CHECK
806-14552-01-00
$56.99
10
GASKET
(806-14553-00-00)
Unavailable
11
BODY, PUMP 2
(806-14543-00-00)
Unavailable
12
JOINT
(806-14568-00-00)
Unavailable
13
WASHER
(806-14558-00-00)
Unavailable
14
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
15
. WASHER
806-14559-00-00
Unavailable
16
SCREW
(806-14567-00-00)
Unavailable
17
WASHER
(806-14557-00-00)
Unavailable
18
ARM, FLOAT
(806-14547-00-00)
Unavailable
19
SPRING
(806-14556-00-00)
Unavailable
20
PIN, FLOAT ARM
(806-14548-00-00)
Unavailable
21
PLATE, PIN FITTING
(806-14549-00-00)
Unavailable
22
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
23
DIAPHRAGM
(806-14545-00-00)
Unavailable
24
BODY, PUMP 3
(806-14544-00-00)
Unavailable
25
SPRING
(806-14555-00-00)
Unavailable
26
SCREW, STOP
(806-14565-01-00)
Unavailable
27
SCREW, STOP
(806-14566-00-00)
Unavailable
28
SCREW
(806-14567-00-00)
Unavailable
29
SPRING, AJST SCREW
(806-14531-00-00)
Unavailable
30
O-RING
(806-14563-00-00)
Unavailable
31
SCREW, ADJUST
(806-14522-00-00)
Unavailable
32
SPRING, AJST SCREW
(806-14533-00-00)
Unavailable
33
O-RING
(806-14564-00-00)
Unavailable
34
SCREW, ADJUST
(806-14521-00-00)
Unavailable
35
SCREW, STOP
(806-14523-00-00)
Unavailable
36
SPRING, AJST SCREW
(806-14533-00-00)
Unavailable
37
BOLT(8X2)
90101-08344-00
Unavailable
38
WASHER (688)
92990-08400-00
Unavailable
39
. BRACKET, THROTTLE
806-14571-00-00
Unavailable
40
CONNECTOR
(806-14588-00-00)
Unavailable
41
SCREW, PAN HEAD(GA5)
98580-04014-00
$4.51
42
NUT
(806-14595-00-00)
Unavailable
43
YBS66-4 WASHER, PLAIN
92990-04200-00
Unavailable
44
NUT, HEXAGON (663)
95380-05600-00
Unavailable
45
WASHER
(806-14598-00-00)
Unavailable
46
SCREW
(806-14591-00-00)
Unavailable
47
. WASHER
806-14596-00-00
Unavailable
48
WASHER
(806-14597-00-00)
Unavailable
49
SPRING
(806-14579-00-00)
Unavailable
50
NUT
(806-14594-00-00)
Unavailable
51
GASKET, MANIFOLD
810-13556-09-00
Unavailable
52
MANIFOLD, INTAKE
(807-13555-00-00)
Unavailable
53
BOLT, STUD
(90116-08056-00)
Unavailable
54
. NUT
95380-08700-00
Unavailable
55
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
56
FUNNEL
809-14479-00-00
Unavailable
57
SCREW, PAN
98507-06014-00
Unavailable
58
CARBURETOR KIT
(806-14500-00-00)
Unavailable
58
VALVE SEAT ASSEMBLY
(806-14590-10-00)
Unavailable
58
VALVE SEAT ASSEMBLY
(806-14590-20-00)
Unavailable
58
CARB IM KIT
(90890-91013-00)
Unavailable
