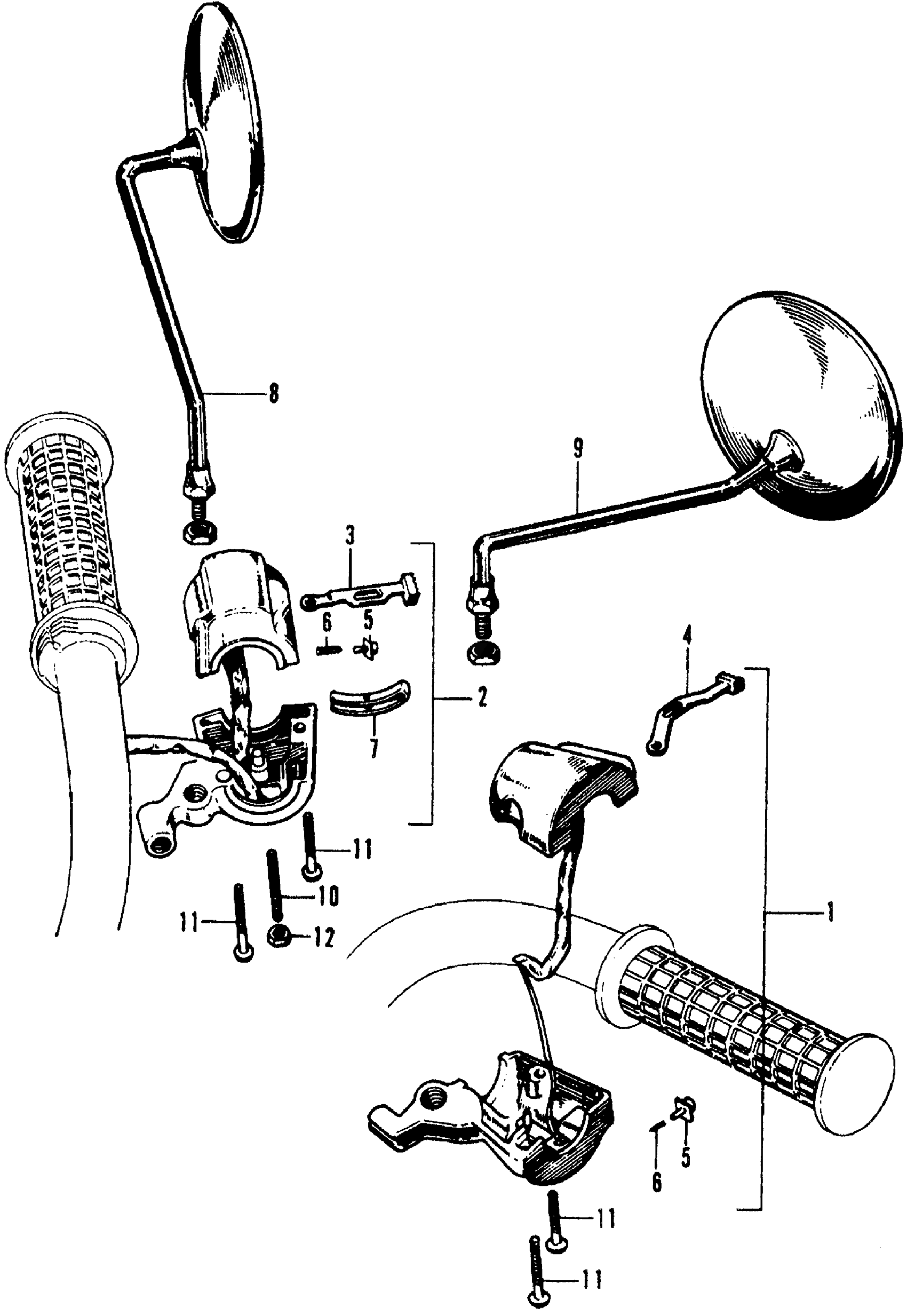

Honda SS125AA MOTORCYCLE, JPN, VIN# SS125A-100001 SWITCH Diagram

#

Description
Price

1

SWITCH ASSY., RR. STOP | Use from Frame SN 111382

35350-KJ9-405

$16.97

1

SWITCH ASSY., RR. STOP | Use from Frame SN 111382 This part replaces 35350-292-003.

35350-KJ9-405

$16.97

1

SWITCH ASSY., RR. STOP | Use from Frame SN 111382 This part replaces 35350-336-000.

35350-KJ9-405

$16.97

2

SWITCH, LIGHTING DIMMER | Use from Frame SN 111382

35300-244-671

Unavailable

3

KNOB, LIGHTING SWITCH (NOT AVAILABLE)

35315-230-000

Unavailable

4

KNOB, TURN SIGNAL SWITCH (NOT AVAILABLE)

35316-230-000

Unavailable

5

BUTTON, HORN SWITCH PUSH (NOT AVAILABLE)

35317-230-000

Unavailable

6

SPRING, HORN BUTTON SWITCH (NOT AVAILABLE)

35318-230-000

Unavailable

7

ADJUSTER, THROTTLE GRIP (NOT AVAILABLE)

53163-271-000

Unavailable

8

MIRROR, R. (NOT AVAILABLE)

88110-230-000

Unavailable

9

MIRROR, L. (NOT AVAILABLE)

88120-230-810

Unavailable

11

SCREW, PAN (5X25) This part replaces 93500-05024.

93500-05025-0A

$1.49

11

SCREW, PAN (5X24) (SOURCE: VINTAGE PARTS INC.)

93500-05024-0A

Unavailable

11

SCREW, PAN (5X25) This part replaces 93500-05025.

93500-05025-0A

$1.49

11

SCREW, PAN (5X25)

93500-05025-0A

$1.49

12

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM)

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49
