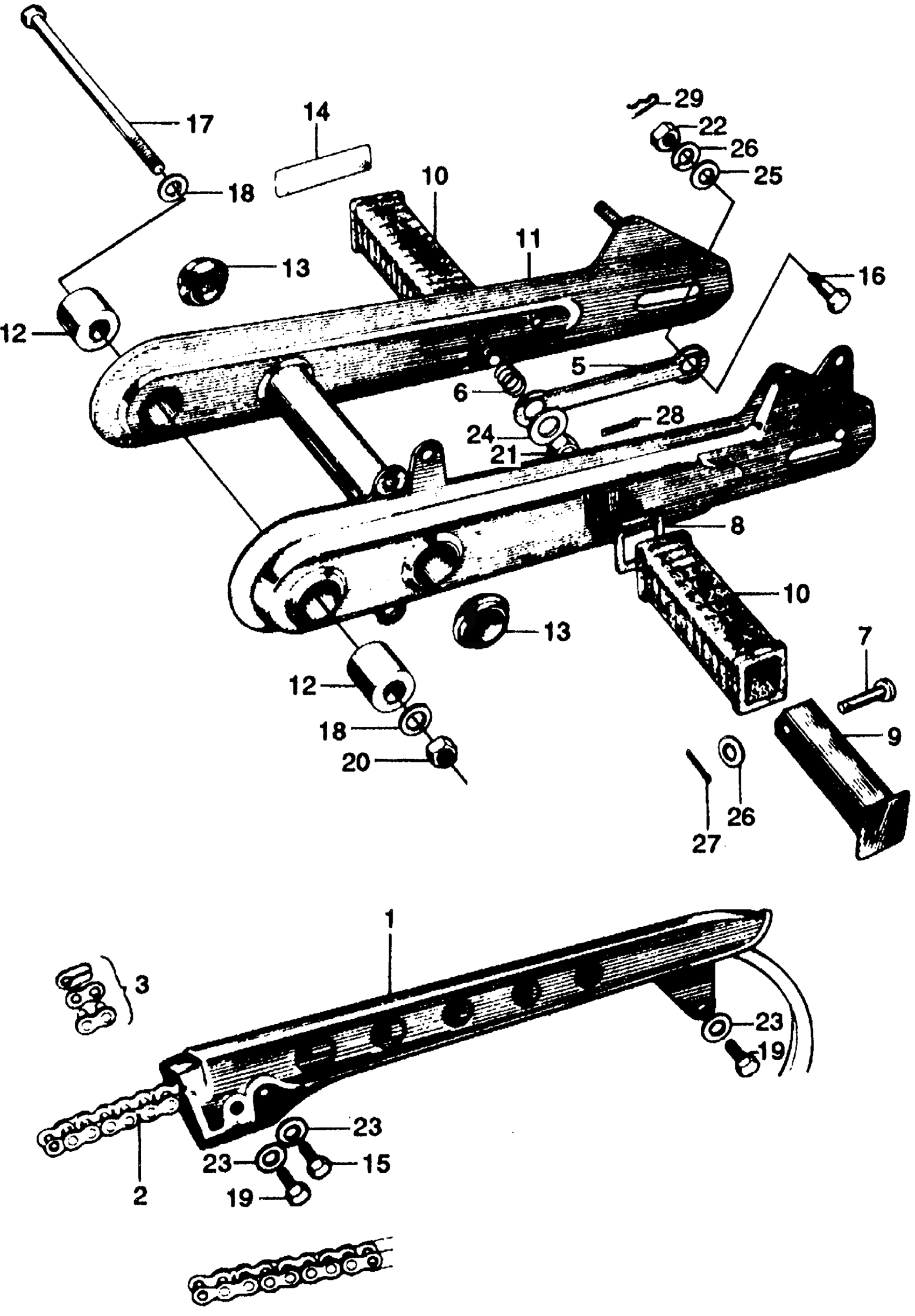

Honda SS125AA MOTORCYCLE, JPN, VIN# SS125A-100001 SWINGARM + CHAIN CASE Diagram

#

Description
Price

NI

CAP, CHAIN CASE | Use from Frame SN 108612

40545-001-000

$3.67

NI

CAP, CHAIN CASE PEEP HOLE | Use from Frame SN 108612 This part replaces 40545-001-000B.

40545-001-000

$3.67

NI

CAP, CHAIN CASE PEEP HOLE | Use from Frame SN 108612 This part replaces 40545-001-000ZC.

40545-001-000

$3.67

NI

CAP, CHAIN CASE PEEP HOLE | Use from Frame SN 108612 This part replaces 40545-141-000.

40545-001-000

$3.67

1

CASE, HALF DRIVE CHAIN (UPPER) *NH2M* (METALLIC SILVER) (NOT AVAILABLE)

40510-243-000T

Unavailable

2

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 40530-243-003.

40530-KC2-961

$58.78

3

MASTER LINK (DK428) (NOT AVAILABLE)

40531-243-003

Unavailable

5

LINK, RR. BRAKE TORQUE (NOT AVAILABLE)

43431-230-020

Unavailable

6

SPRING, STOPPER ARM

43434-250-000

$2.00

7

PIN A, PILLION STEP This part replaces 50715-024-000.

95015-81000

$2.21

7

PIN A, PILLION STEP

95015-81000

$2.21

8

WASHER, FOOTPEG This part replaces 50712-024-000.

95015-91000

$1.31

8

WASHER, FOOTPEG

95015-91000

$1.31

9

BAR B, PILLION STEP This part replaces 50715-283-000.

95015-62000

$30.68

9

BAR B, PILLION STEP

95015-62000

$30.68

10

RUBBER, PILLION STEP This part replaces 50731-024-000.

95011-31000

$7.16

10

RUBBER, PILLION STEP

95011-31000

$7.16

11

SWINGARM (NOT AVAILABLE)

52100-243-000Z

Unavailable

12

BUSH, SWINGARM PIVOT This part replaces 52108-028-000.

52147-028-300

$17.90

12

BUSH, SWINGARM PIVOT

52147-028-300

$17.90

13

CAP, CROSSMEMBER SIDE *NH1* (BLACK) (NOT AVAILABLE)

52161-001-010B

Unavailable

14

LABEL, MUFFLER CAUTION | Use from Frame SN 108612

87504-028-670

$2.92

15

BOLT, HEX. (6MM) (NOT AVAILABLE)

90092-243-000

Unavailable

16

BOLT, RR. SWINGARM PIVOT (NOT AVAILABLE) | Use from Frame SN 111382

90121-230-010

Unavailable

16

BOLT, RR. SWINGARM PIVOT (NOT AVAILABLE)

90121-230-000

Unavailable

17

BOLT, RR. BRAKE TORQUE (NOT AVAILABLE)

90127-230-010

Unavailable

18

WASHER (12MM)

90531-011-010

$1.51

19

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

19

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

19

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

20

NUT, HEX. (12MM) (NOT AVAILABLE)

94001-12020-0S

Unavailable

21

NUT, HEX. (8MM) This part replaces 94002-08000.

94031-08000

$1.49

21

NUT, HEX. (8MM)

94002-08000-0S

$1.49

21

NUT, HEX. (8MM)

94031-08000

$1.49

22

NUT, HEX. (10MM) This part replaces 94002-10000.

94002-10000-0S

$4.06

22

NUT, HEX. (10MM)

94002-10000-0S

$4.06

22

NUT, HEX. (10MM) This part replaces 94002-10000-08.

94002-10000-0S

$4.06

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

WASHER, PLAIN (8MM)

94101-08000

$1.49

25

WASHER, PLAIN (10MM)

94101-10000

$1.49

26

WASHER, SPRING (8MM)

94111-10000

$1.49

27

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

27

PIN, COTTER (1.6X25)

94201-16250

$1.49

28

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

28

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

28

PIN, COTTER (2.0X22)

94201-20220

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

28

PIN, COTTER (2.0X35)

94201-20350

$1.49

28

PIN, COTTER (2.0X22)

94201-29220

$1.49

29

PIN, LOCK (8MM)

94251-08000

$1.49
